Build and order custom parts in minutes
Configure hose / tube assemblies with fully compatible options and instantly get pricing
Watch Demo Configuration >
Key Benefits
Built - in Compatibility
Eliminate ordering mistakes
Quick Pricing
Instant pricing, no minimum orders, fast turnaround and CTA secondary ( Request Custom Qute )

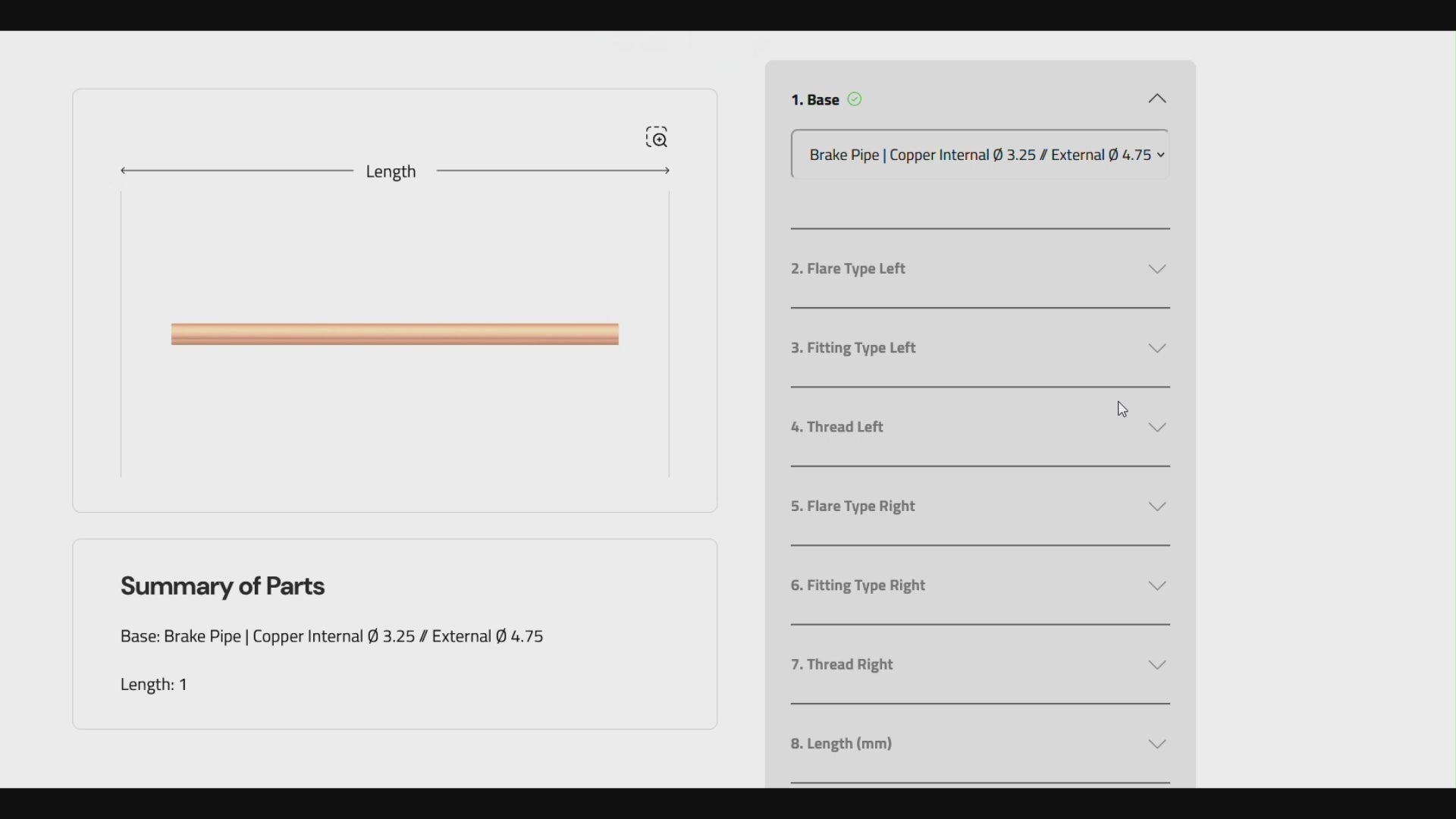

Build Your Configuration Now

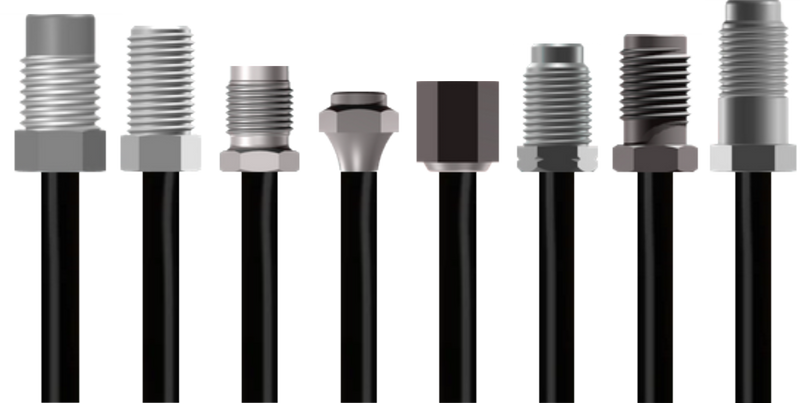

Brake Line

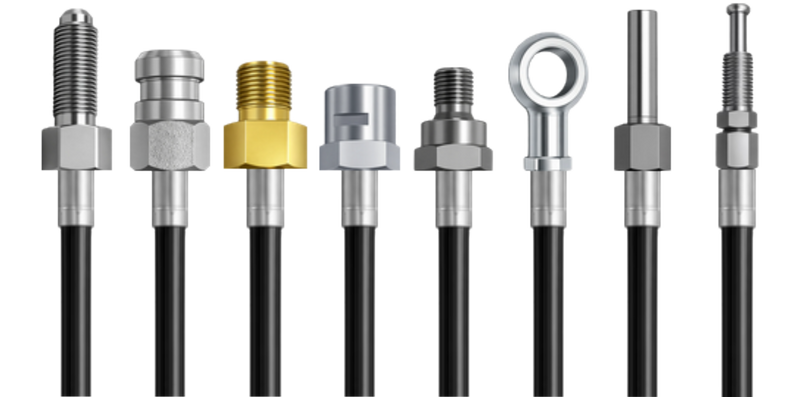

Brake Hoses
Injection Line
Product Specifications
Select the right material for your custom configuration.
Brake Tube
1035.
| Material | DIN Standard |
|---|---|
| Copper Plated Galvanised Steel | 74234 Type B |
| Part Number | D (mm) | d (mm) | s (mm) wall thickness | Working Pressure (bar) | Bursting Pressure (bar) | standard coil length (m) |
| 1035.0347 | 4.75 | 3.35 | 0.7 | 410 | 1100 | 5 |
| 1035.0506 | 6 | 4.6 | 0.7 | 320 | 850 | 5 |
| 1035.0708 | 8 | 6.6 | 0.7 | 230 | 675 | 5 |
1430.
| Material | DIN Standard |
|---|---|
| Zinc plated copper |
| Part Number | D (mm) | d (mm) | s (mm) wall thickness | Working Pressure (bar) | Bursting Pressure (bar) | standard coil length (m) |
| 1430.0347 | 4.75 | 3.25 | 0.75 | 410 | 1100 | 5360 |
| 1430.0506 | 6 | 4.5 | 0.75 | 320 | 850 | 5000 |
Hydraulic Brake Hose
4324.
| Material | DIN Standard |
|---|---|
| EPDM hose with intermediate layer of SBR& NBR, and internal PET braiding |
| Internal diameter | External Diameter | Wall Thickness | Minimum Bending Radius | Operating Pressure | Testing Pressure | Bursting Pressure |
| mm | mm | mm | mm | bar | bar | bar |
| 3.2 ± 0.15 | 10.5 ± 0.3 | 3.65 | 30 | max 150 | 280 | 800 |

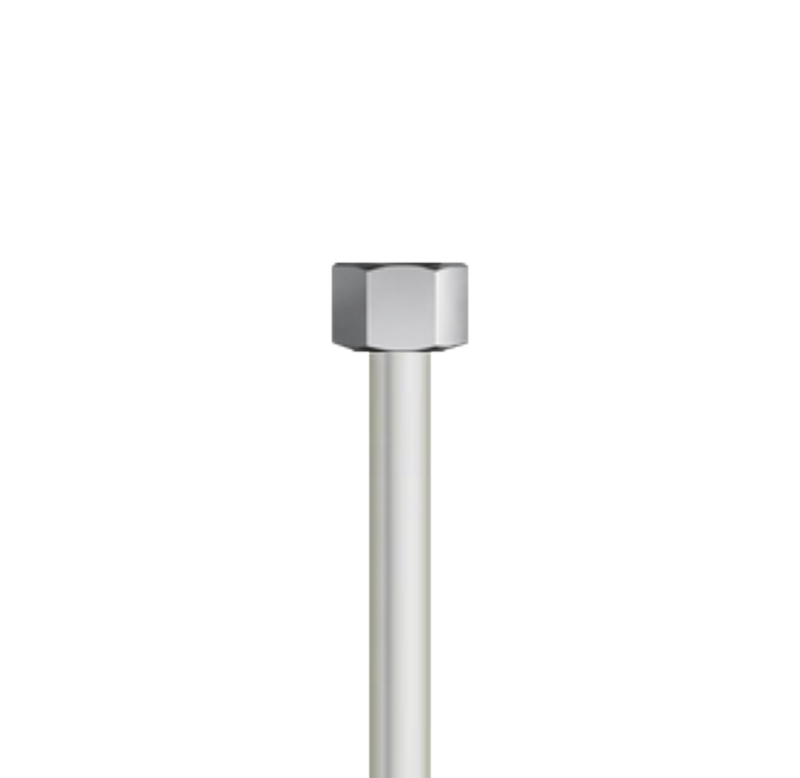

Diesel Injection Tube
1053.
| Material | DIN Standard |
|---|---|
| Zinc Plated Steel | DIN ISO 8535-1 (replaced DIN 73000 E 215) |
| SKU | External Diameter (mm) ± 0.06 mm | Internal Diameter (mm) ± 0.05 mm | Working Pressure (bar) |
| 1053.0306 | 6 | 3 | 550 |
| 1053.2206 | 6 | 2.25 | 640 |
| 1053.0206 | 6 | 2 | 690 |
| 1053.1806 | 6 | 1.85 | 710 |
| 1053.1506 | 6 | 1.5 | 730 |
