Bent Tube with Hose Nipple

Bent Tube with Hose Nipple

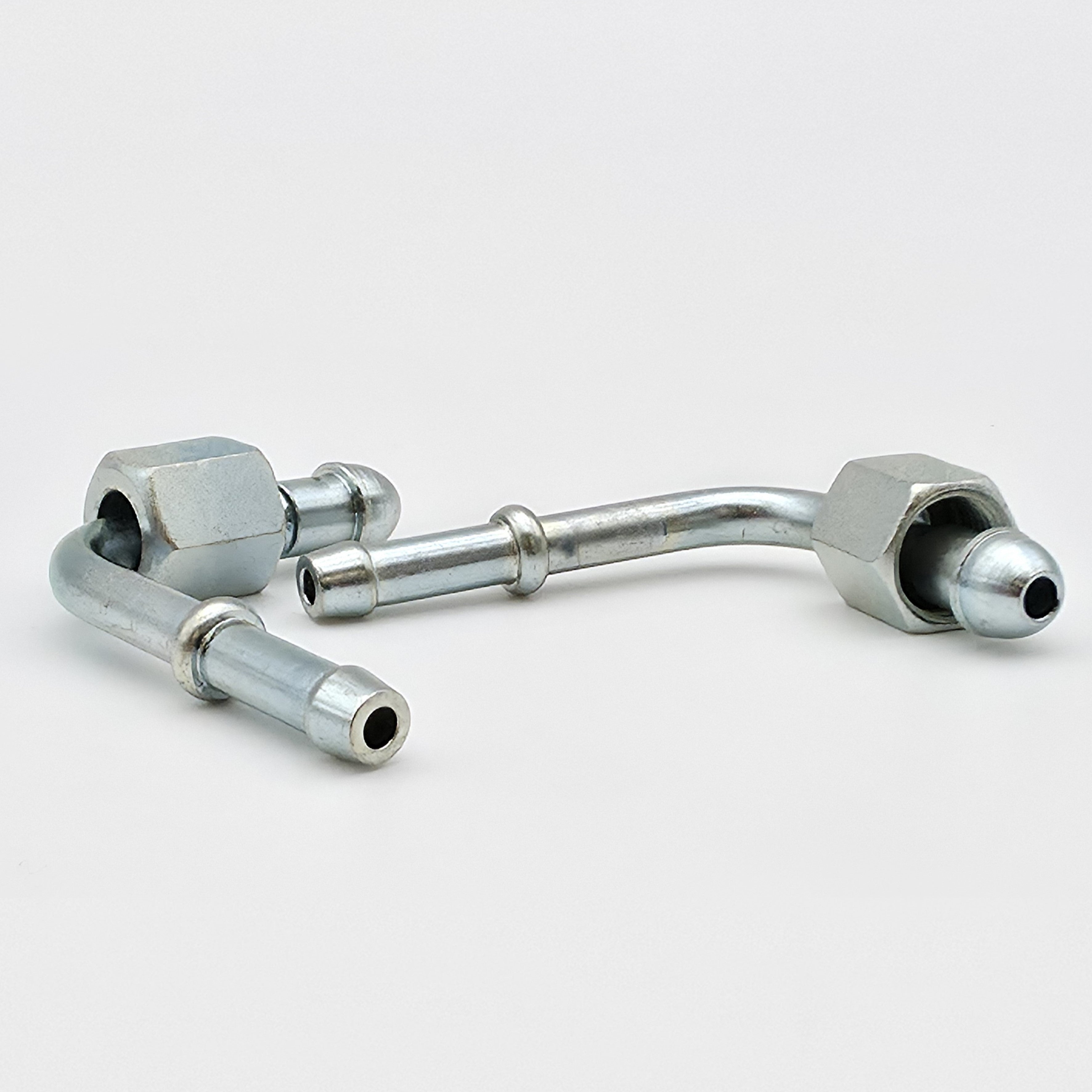

90° bent tube with conical nipple at one end and female swivel nut at the other

Ø for hose inside
SKU: 8040.90.0300
£20.76
In stock

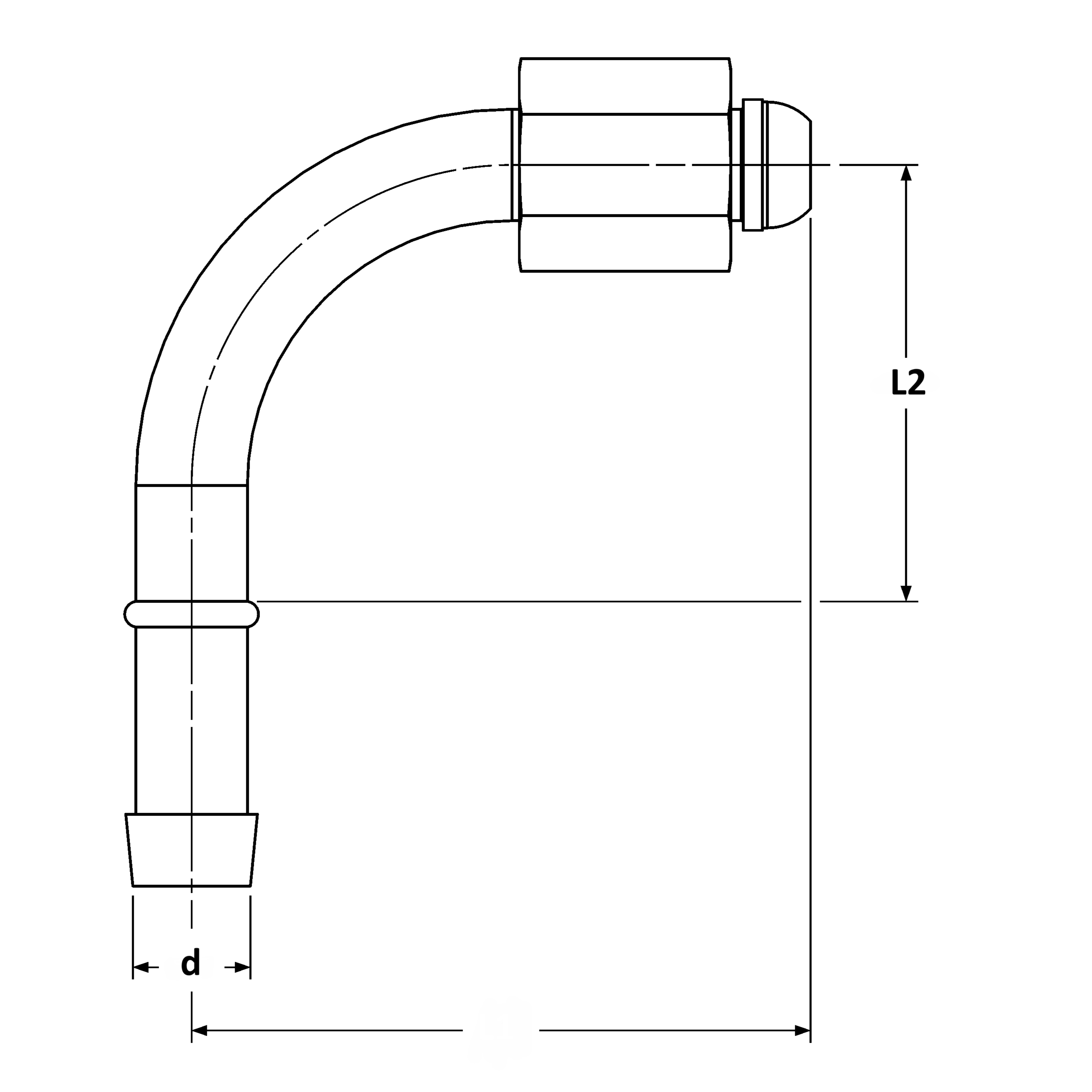

Part Diagram and technical information is shown below

Please note tube dimensions which aren't in stock can still be ordered but normally takes 3-4 weeks to be delivered however can take longer due to supply.  If you have any questions please reach out to us and we are more than happy to help

Only complete lengths can be returned, pieces cut from the coil cannot be returned for credit, Please ensure that you select the correct hose and length.

Scroll down

Description

The Cohline portfolio of precision-engineered adapters and fittings provides a reliable and flexible solution for routing fluid transfer lines—including fuel, oil, and coolant—across a wide range of high-performance automotive and motorsport applications. Designed to withstand the extreme demands of elevated pressure, thermal cycling, and high dynamic loads, these components are recognised as a standard in advanced fluid management systems. Each fitting is CNC-machined to ensure optimal mechanical integrity, dimensional stability, and resistance to fatigue and chemical degradation. This level of engineering ensures consistent performance and long service life in the harshest operational environments.

Material

Zinc Plated Steel and Mild Steel

DIN Standard

Nipple to DIN3863, Swivel nut to DIN3870 and DIN 7606

Product Specification

SKU Ø for hose inside  DN swivel nut thread L1 (mm) L2 (mm)
8040.90.0300 4 - 5  3 M10 x 1 34 25
8040.90.0302 3 - 4 3/2 M10 x 1 34 25
8040.90.0400 5 - 6 4 M12 x 1.5 34 25
8040.90.0600 7 - 8 6 M14 x 1.5  39 28
8040.90.0800 9 - 10 8 M16 x 1.5 39 30
8040.90.1000 11 - 12 10 M18 x 1.5 44 35
8040.90.1300 14 - 15 13 M22 x 1.5 45 50
8040.90.1600 17 - 18 16 M26 x 1.5 50 55
8040.90.2000 21 - 22  20 M30 x 1.5 60 55
