Bent Tube with Nipple 90°

Bent Tube with Nipple 90°

Zinc plated mild steel 90° elbow bent tube, light type, with nipple on one side

Ø for pipe outside (D) mm
SKU: 8061.90.0300
£17.15
In stock

Part Diagram and technical information is shown below

Scroll down

Description

The Cohline portfolio of precision-engineered adapters and fittings provides a reliable and flexible solution for routing fluid transfer lines—including fuel, oil, and coolant—across a wide range of high-performance automotive and motorsport applications. Designed to withstand the extreme demands of elevated pressure, thermal cycling, and high dynamic loads, these components are recognised as a standard in advanced fluid management systems. Each fitting is CNC-machined to ensure optimal mechanical integrity, dimensional stability, and resistance to fatigue and chemical degradation. This level of engineering ensures consistent performance and long service life in the harshest operational environments.

Material

Zinc Plated Steel and Mild Steel

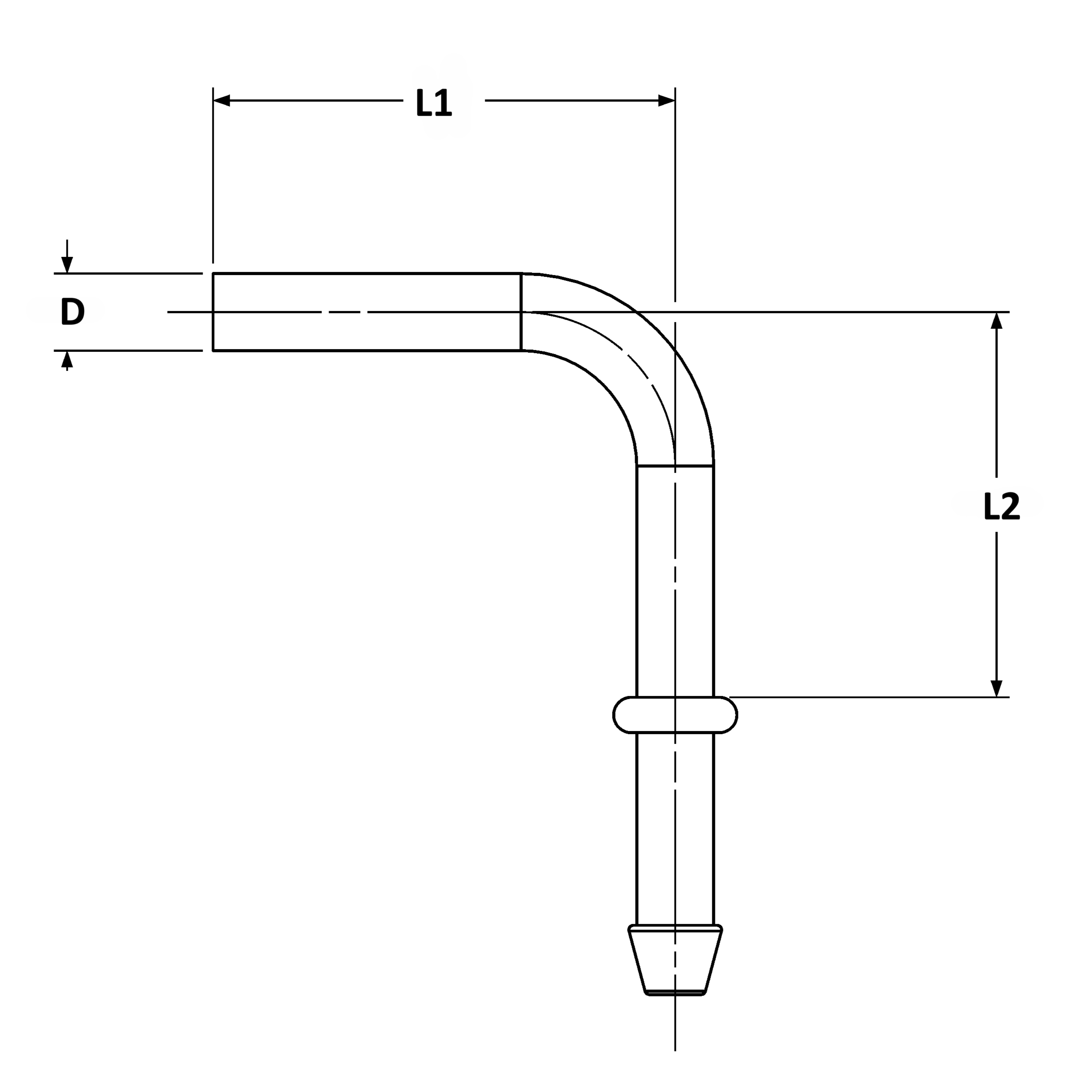

Part Diagram

Product Specification

SKU Ø for pipe outside (D) mm Ø for hose inside  L1 L2
8061.90.0200 4 3 - 4 30 25
8061.90.0300 5 4 - 5 30 25
8061.90.0400 6 5 - 6 30 25
8061.90.0600 8 7 - 8 35 30
8061.90.0800 10 9 - 10 35 30
8061.90.1000 12 11 - 12 40 35
8061.90.1300 15 14 - 15 50 50
8061.90.1600 18 17 - 18 60 55
8061.90.2000 22 21 - 22 70 60
