Fuel Hose | External Braiding
1/23

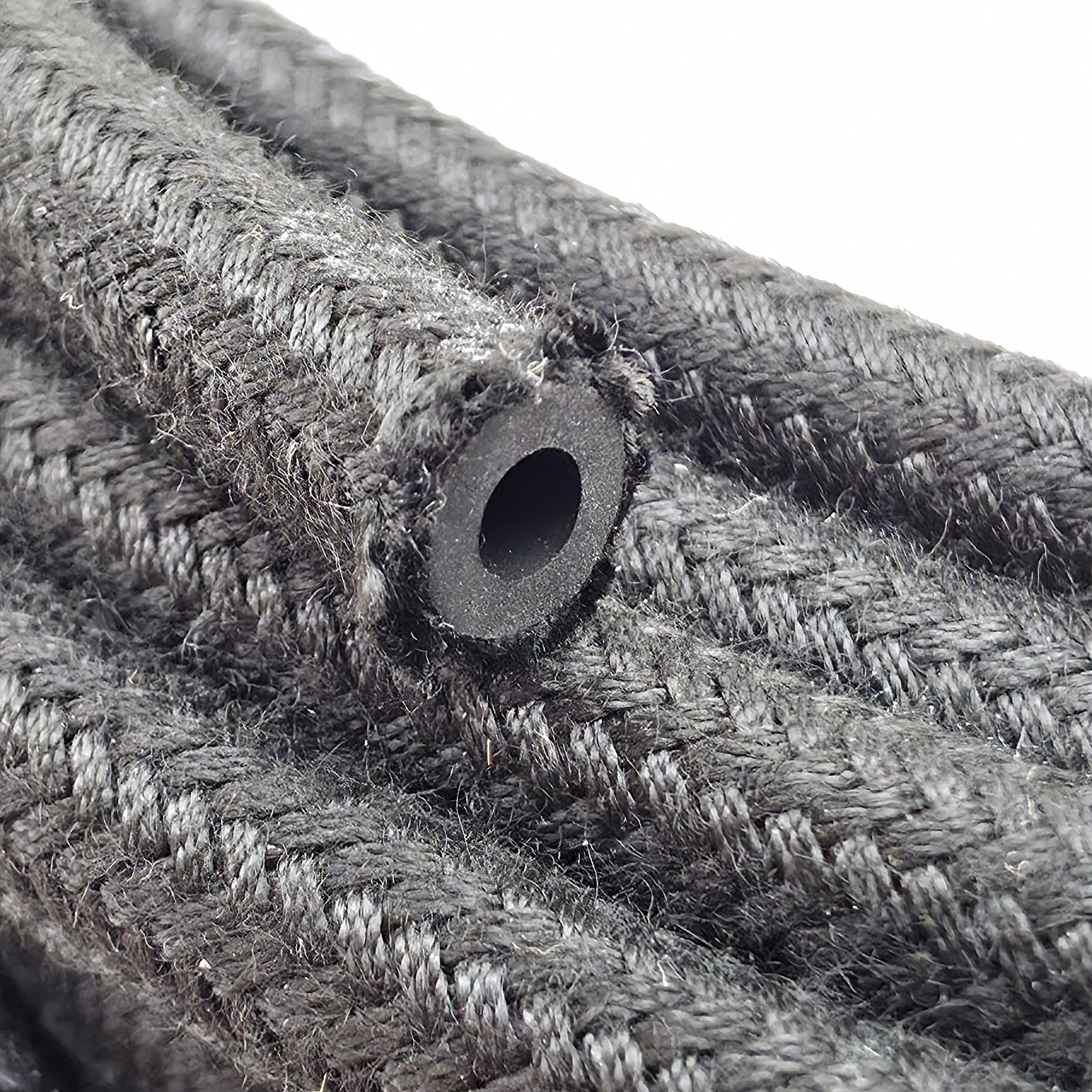

Fuel Hose | External Braiding

NBR hose with external braiding

Internal Diameter, mm (±0.5)
External Braiding
SKU: 2122.0200
£1.90
In stock

Part Diagram and technical information is shown below

The maximum length available in one piece is 20m. We will always try to supply hoses in one complete length. Select Quantity of the hose length in meters needed.


Please note that only complete rolls can be returned, pieces cut from the roll cannot be returned for credit, Please ensure that you select the correct hose and length.

Scroll down

Description

Cohline's high-specification range of braided hose assemblies is engineered to meet the rigorous demands of modern automotive systems. The multi-layer construction—available in both synthetic rubber and PTFE-lined configurations—offers excellent chemical resistance, high-pressure tolerance, and thermal stability. These hoses are suitable for a wide range of critical fluid transfer applications, including fuel, coolant, and lubricating oil systems. A full complement of precision-machined fittings is available to ensure optimal integration across vehicle platforms. Extensively validated in our internal test programs and field applications, Cohline hoses have been specified by leading OEMs for long-term, high-reliability use in production and development environments.

-Commercial fuels and fuel mixtures also E10 fuel up to a max of 50% benzol: from -30°C up to + 50°C
-Water, air heating oil: from -30°C up to +80°C
-Diesel fuels (gasoil) with RME addition: from -30°C up to +65°C

Technical Specifications
Material
NBR hose with options of, Vulcanised Yarn Braiding, zinc plated steel overbraid, and Stainless Steel Over Braiding
DIN Standard
Type B 73379 (edition 3/82)
Temperature Range
range depends on application

Specification

Hose Diagram

Part Number

External Diameter

D (mm) ± 0.7

Internal Diameter

d (mm) ± 0.5

DN

(NW)

Smallest Bending Radius

(mm)

Working Pressure

(bar)

Bursting Pressure

(bar)

Testing Pressure

(bar)

2122.0200 7.5 3.5 2.0 35 7 30 20
2122.0207 7.0 3.2 2.0 35 7 30 20
2122.0300 9.5 4.5 3.0 35 7 30 20
2122.0400 10.5 5.5 4.0 40 7 30 20
2122.0410 9.5 5.0 4.0 40 7 30 20
2122.0411 11.0 6.0 4.0 45 7 30 20
2122.0600 12.5 7.5 6.0 50 7 30 20
2122.0612 12.0 7.0 6.0 50 7 30 20
2122.0800 15.0 9.0 8.0 60 7 30 20
2122.1000 17.0 11.0 10.0 70 7 30 20
2122.1017 17.0 12.0 10.0 80 7 30 20
2122.50.1300 20.0 14.0 13.0 80 7 30 20
2122.2533 33.0 25.0 25.0 120 7 30 20
