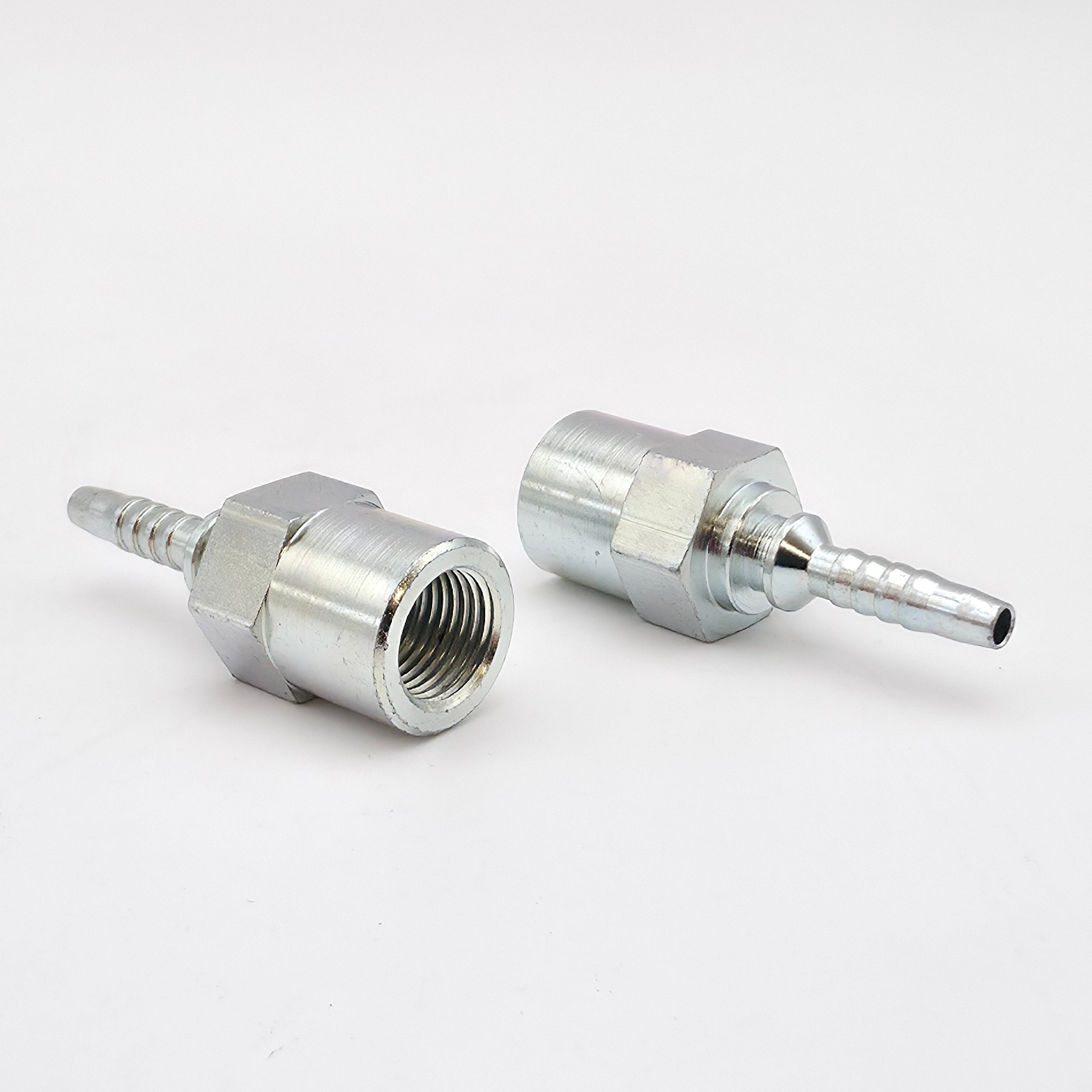

Metric Hydraulic Brake hose fittings
1/2

Metric Hydraulic Brake hose fittings

suitable for hose internal diameter of 3.2mm

Fitting Type
Length, L (mm)
SKU: 6399.0263
£5.50
In stock

Part Diagram and technical information is shown below

Scroll down

Description

The Cohline portfolio of precision-engineered adapters and fittings provides a reliable and flexible solution for routing fluid transfer lines—including fuel, oil, and coolant—across a wide range of high-performance automotive and motorsport applications. Designed to withstand the extreme demands of elevated pressure, thermal cycling, and high dynamic loads, these components are recognised as a standard in advanced fluid management systems. Each fitting is CNC-machined to ensure optimal mechanical integrity, dimensional stability, and resistance to fatigue and chemical degradation. This level of engineering ensures consistent performance and long service life in the harshest operational environments.

Material

Zinc Plated Steel

Part Diagram

Product Specification

SKU Thread (d) SW (mm) L (mm) D (mm) flare type Identification number fitting type
6399.0263 M10 x 1 14 11 14 F 01, 04, 10, 28, 37, 37, 49, 79, 89, 95, 98 1
6399.0264 M10 x 1 14 23 - E 37,85 2
6399.0265 M10 x 1 17 18.5 16.5 E 72 3
6399.0271 M10 x 1 17 18.5 15 E 72, 94 3
6399.0272  M12 x 1 19 12 18 E 01, 28a, 37, 50, 55 3
6399.0285 M10 x 1 17 17.3 15 E 93 3
6399.0304 M10 x 1 17 9.5 15.5 E 49, 66, 69 3
6399.0305 M10 x 1 17 12 - - 49, 66, 69 4
6399.0308 M12 x 1 17 11 - - 95 4
6399.0267 M10 x 1 14 10 - - 04, 72 4
6399.0270 M10 x 1 17 17.5 16 F 10, 49, 50, 79, 98 5
6399.0273 M14 x 1 19 11 19 E 67, 72, 89, 98 6
6399.0286 M10 x 1 17 16.3 15 E 93 7
6399.0274 M10 x1 14 14 - - 28a 9
6399.0279 M14 x 1.5 17 20 - - - 9
6399.0280 M10 x 1 17 12 - - 93 9
6399.0291 M10 x 1 links 14 14.5 - - 98 9
6399.0294 M10 x 1 14 17 13.7 - - 19
6399.0309 M12 x 1 17 24 - E 95 21
