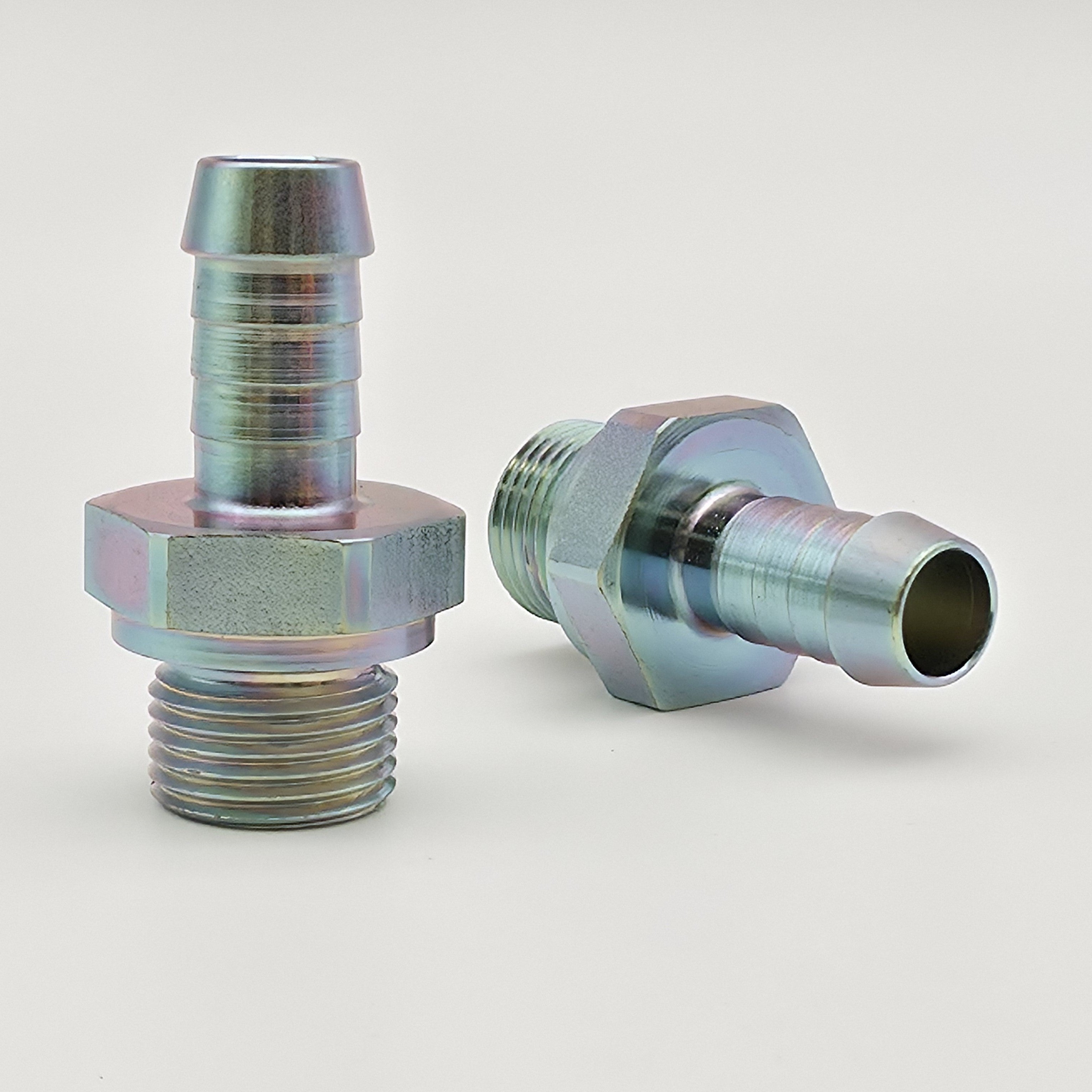

Nipple with external thread

Nipple with external thread

with screw in pivot according to DIN 3852, with sealing surface

Thread
Ø for hose inside
SKU: 8057.1000
£14.25
In stock

Part Diagram and technical information is shown below

Scroll down

Description

The Cohline portfolio of precision-engineered adapters and fittings provides a reliable and flexible solution for routing fluid transfer lines—including fuel, oil, and coolant—across a wide range of high-performance automotive and motorsport applications. Designed to withstand the extreme demands of elevated pressure, thermal cycling, and high dynamic loads, these components are recognised as a standard in advanced fluid management systems. Each fitting is CNC-machined to ensure optimal mechanical integrity, dimensional stability, and resistance to fatigue and chemical degradation. This level of engineering ensures consistent performance and long service life in the harshest operational environments.

Material

Zinc Plated Steel

DIN Standard

3852

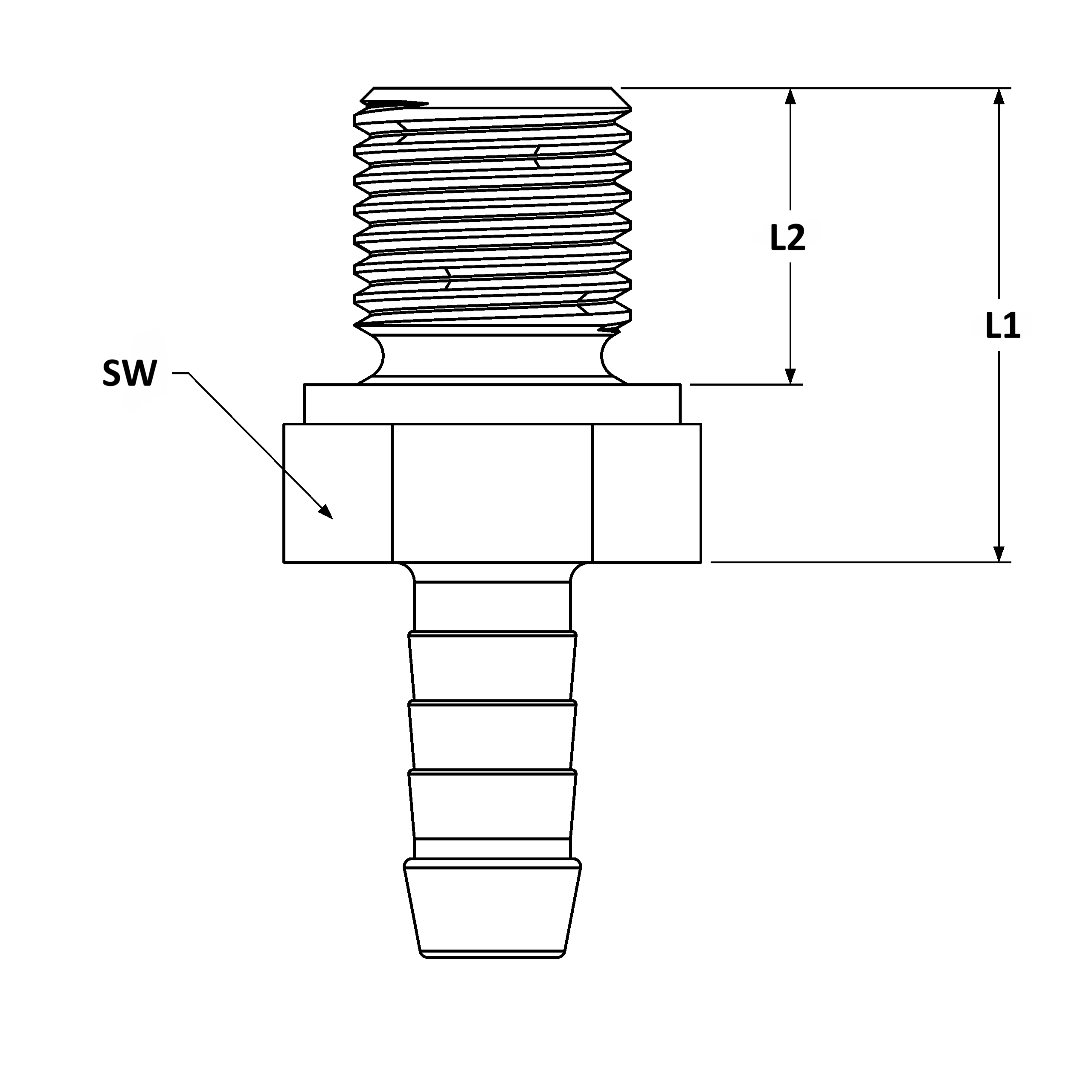

Part Diagram

Product Specification

sku SW (mm) Ø for hose inside  DN Thread L1 L2
8057.0810 22 11 - 12  8/10 M 16 x 1.5 21 12
8057.1000 24 11 - 12 10 M18 x 1.5 21.5 12
8058.0304 14 5 - 6 4 G 1/8" 14.5 8
8058.0600 19 7 - 8 6 G 1/4" 20 12
8058.0604 19 5 - 6 6/4 G 1/4" 20 12
8058.0800 22 9 - 10 8 G 3/8" 19 12
8058.0806 22 7 - 8 8/6 G 3/8" 20 12
8058.1300 27 14 - 15 13 G 1/2" 23.5 14
8058.1310 27 11 - 12 13/10 G 1/2" 23.5 14
8058.2000 32 21 - 22 20 G 3/4" 27 16
8058.2013 32 14 - 15 20/13 G 3/4" 27 16
8058.2016 32 17 - 18 20/16 G 3/4" 27 16
