Oil and Air Pressure Hose

Oil and Air Pressure Hose

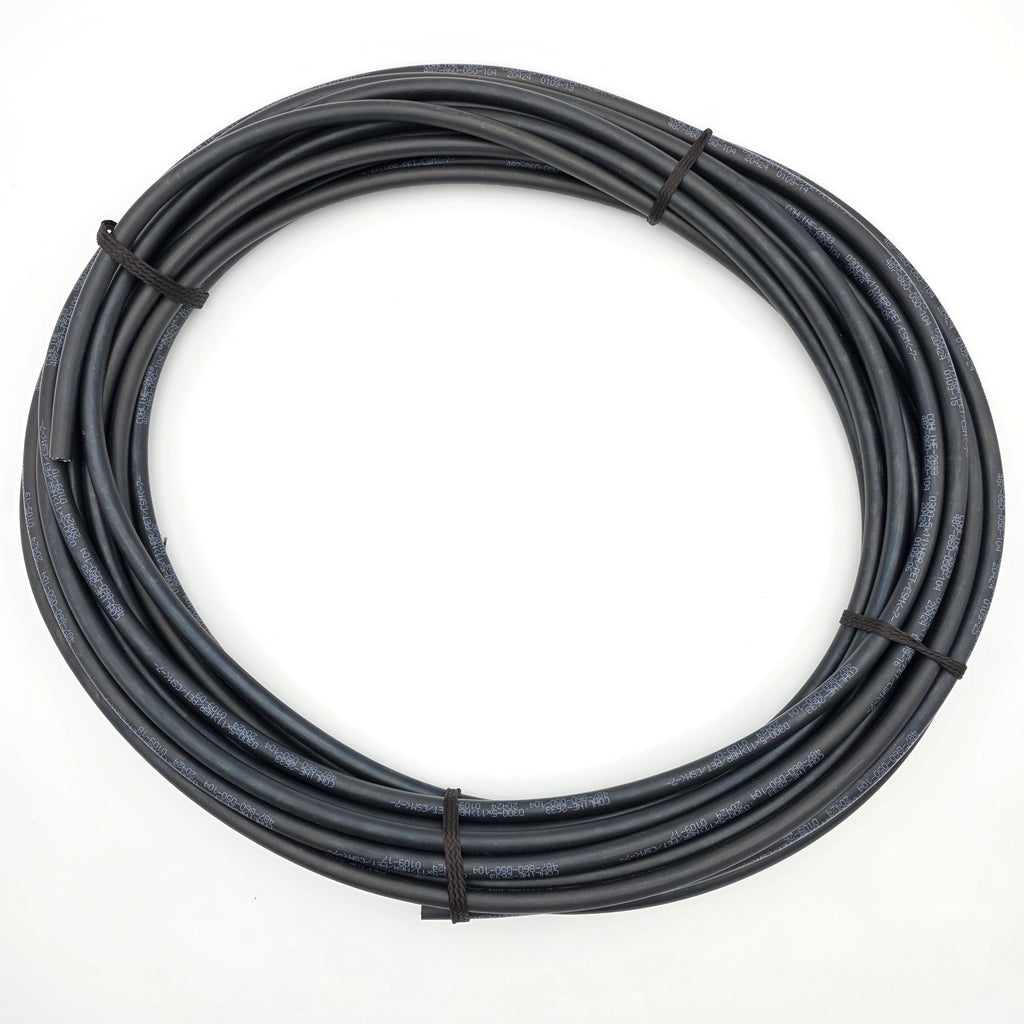

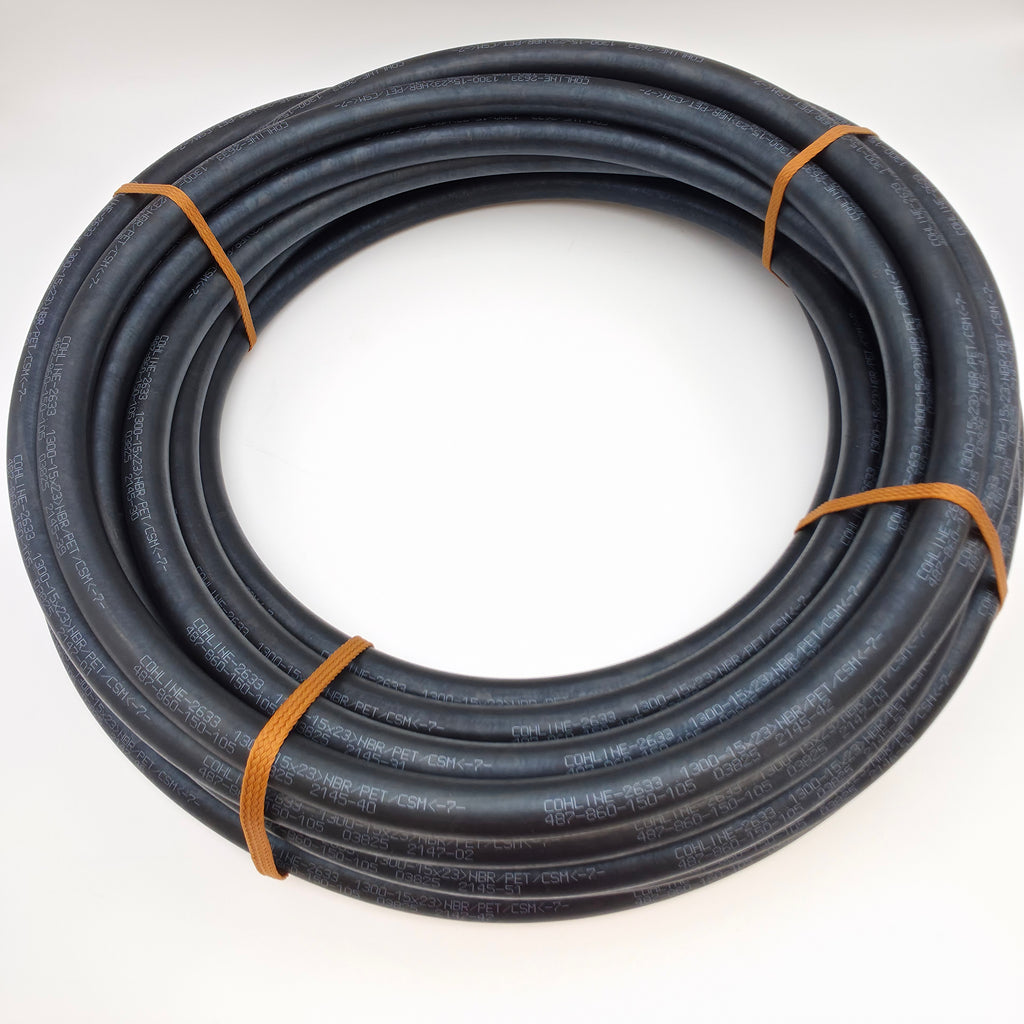

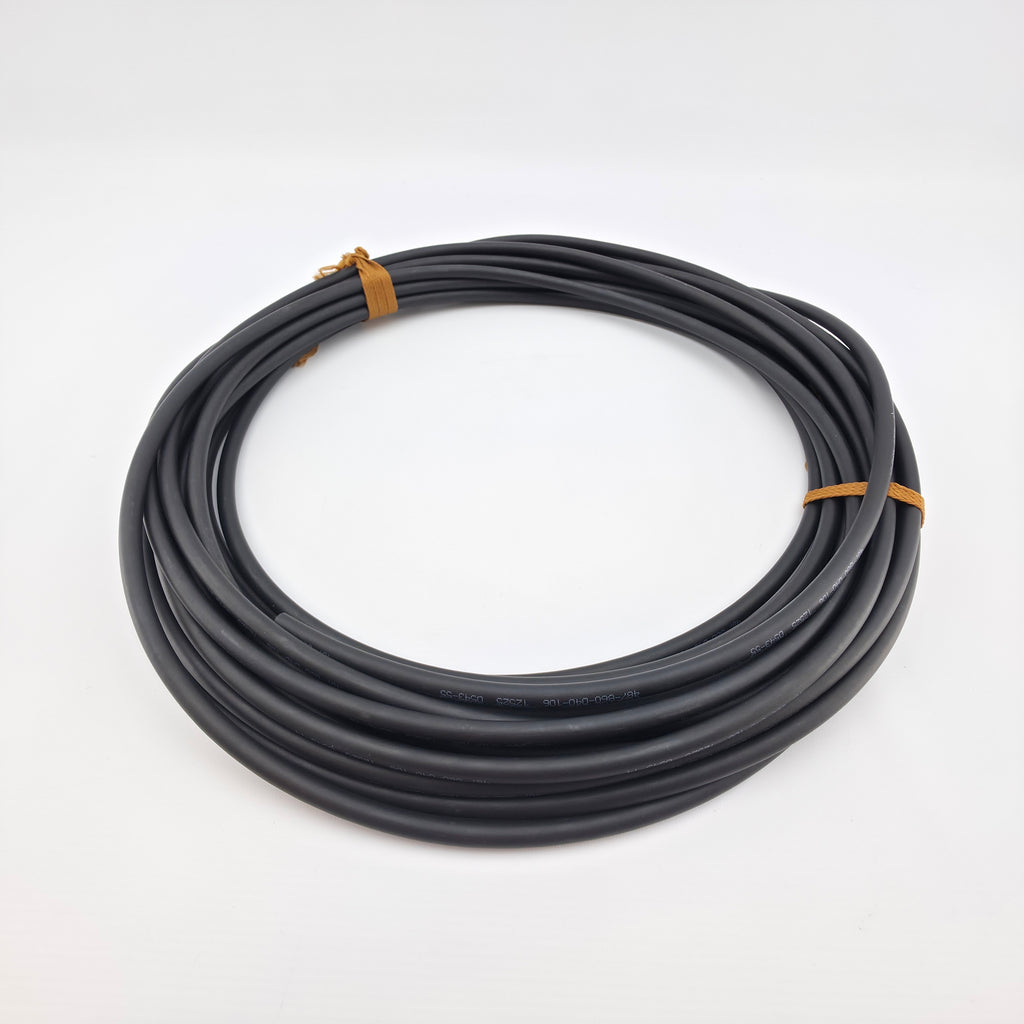

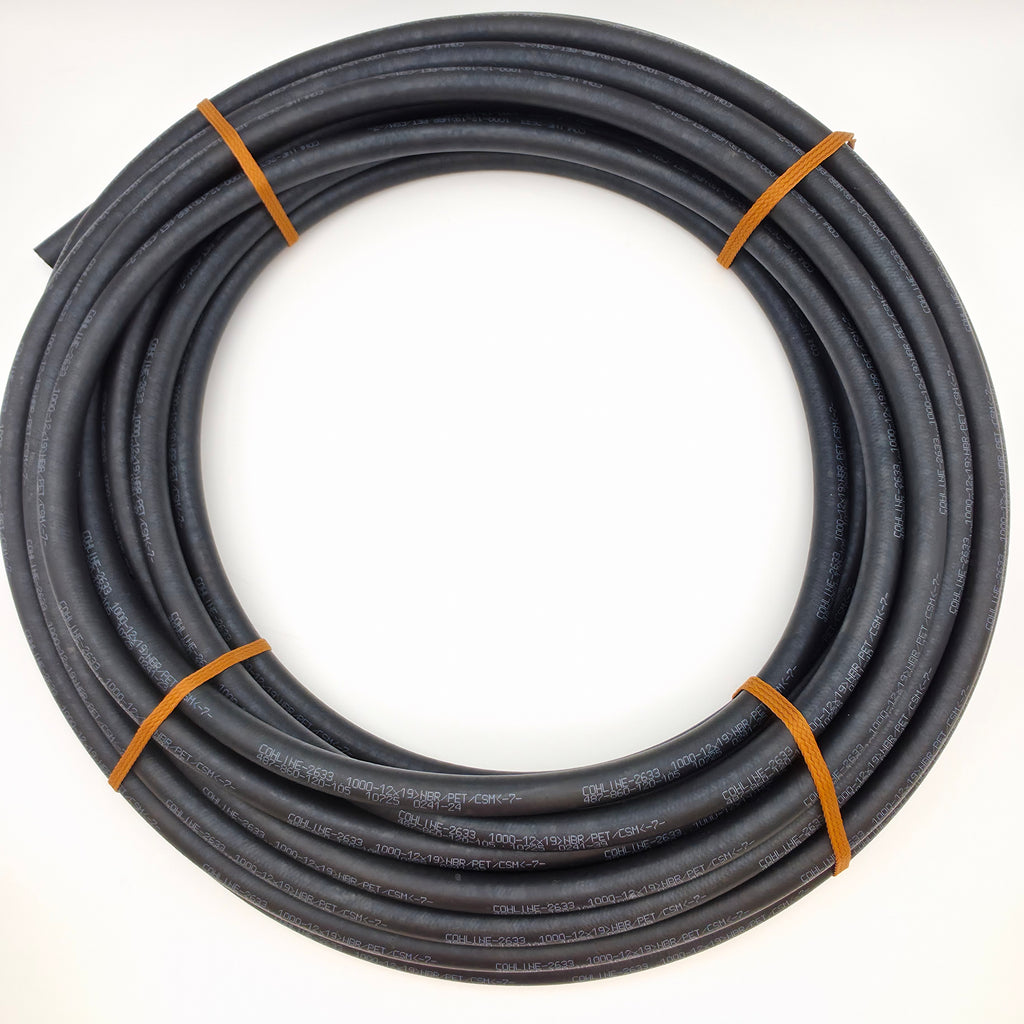

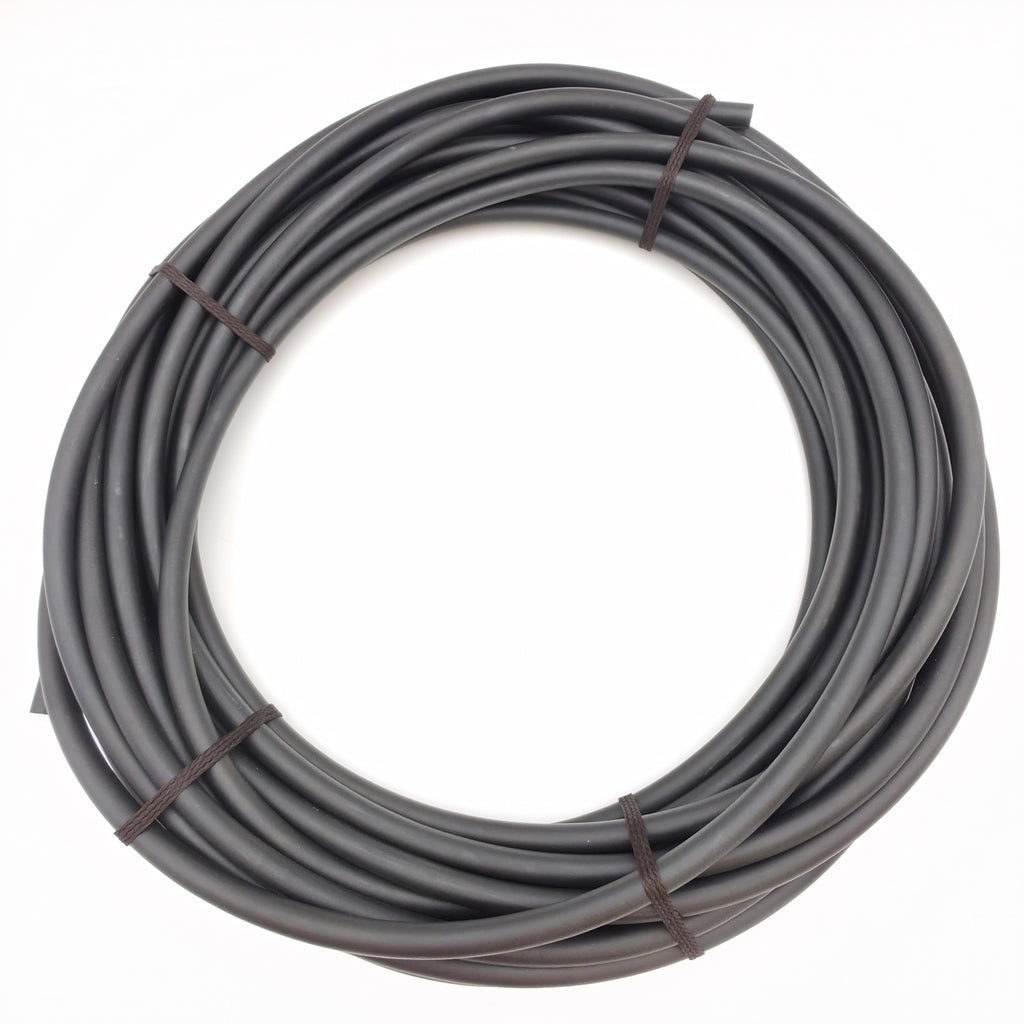

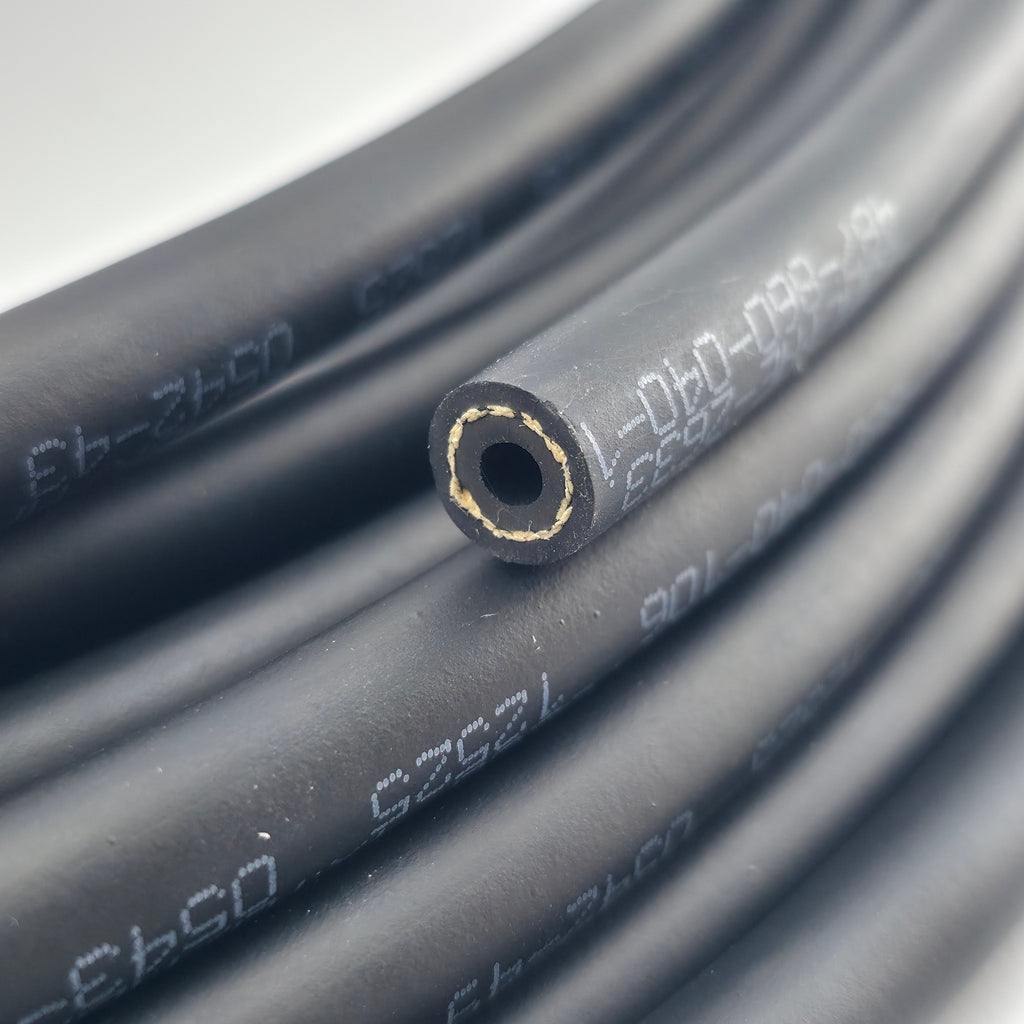

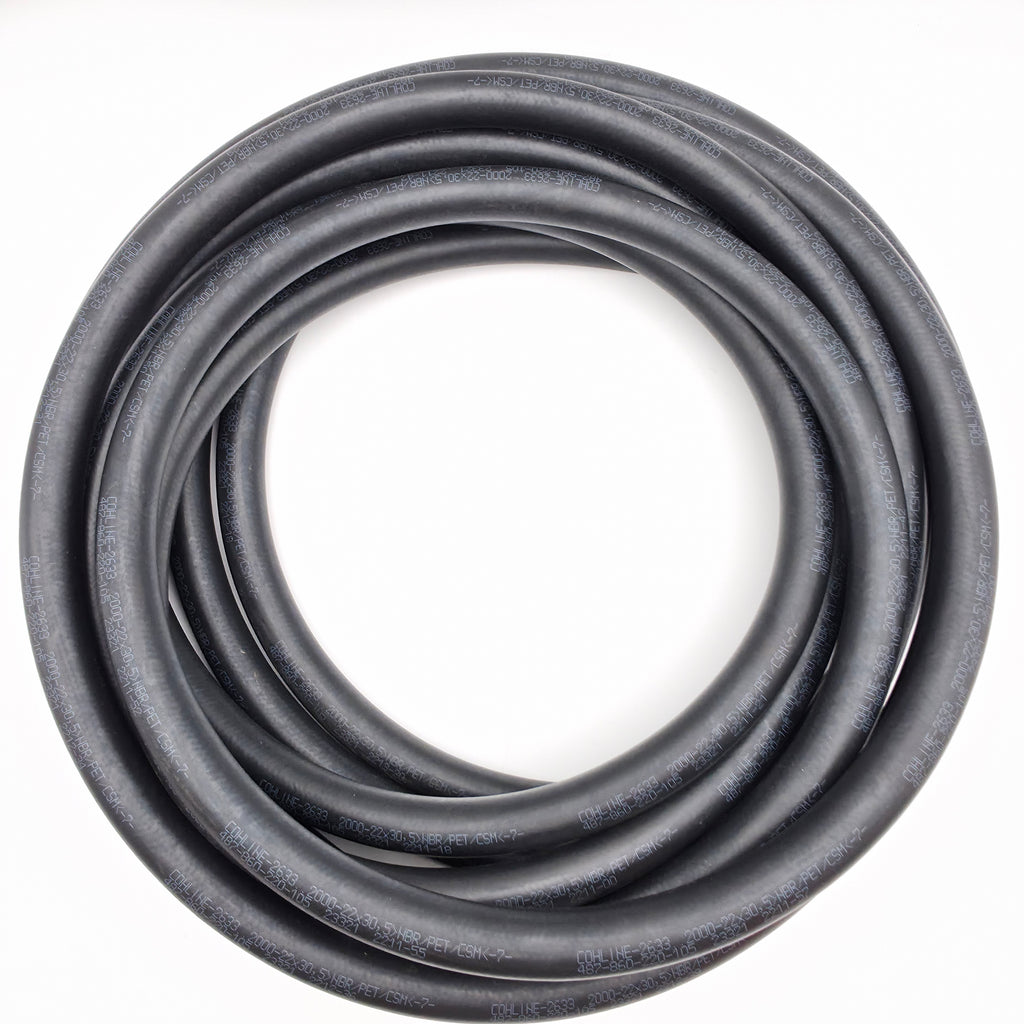

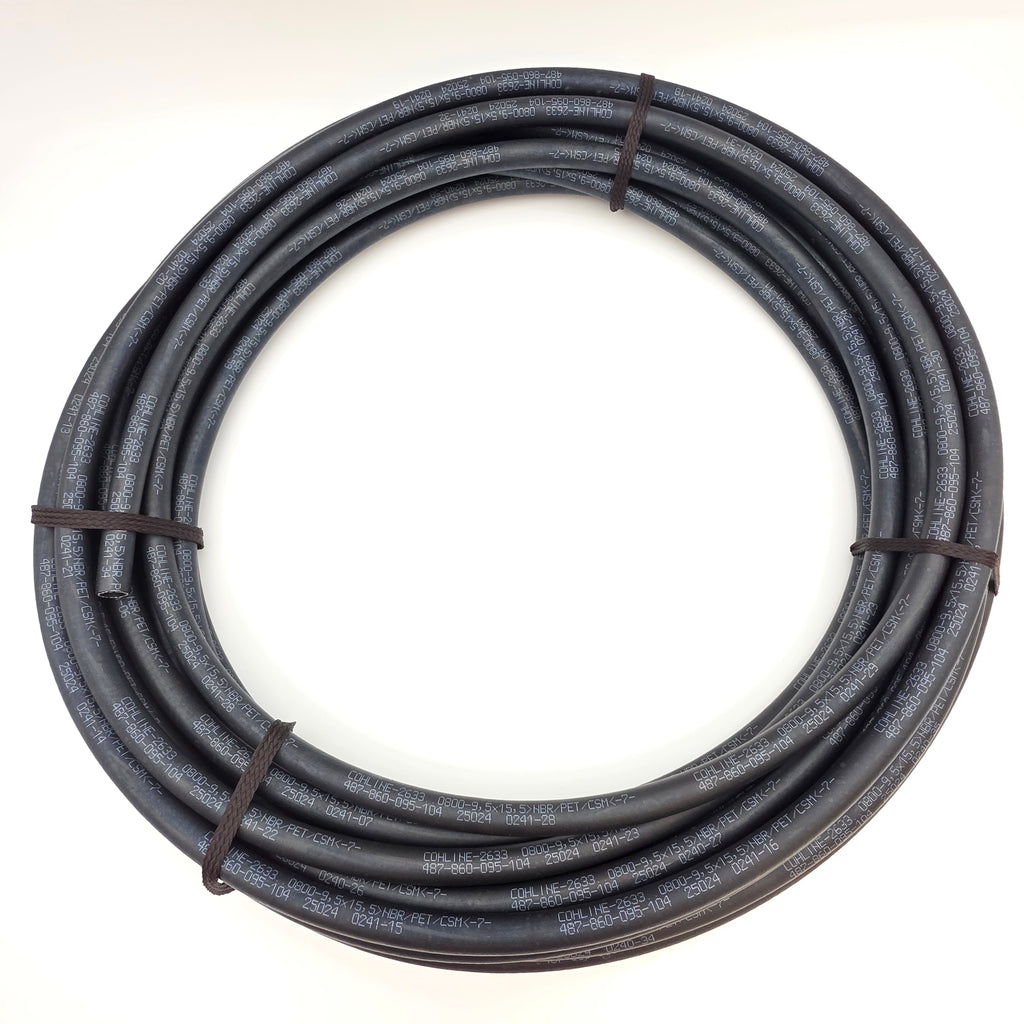

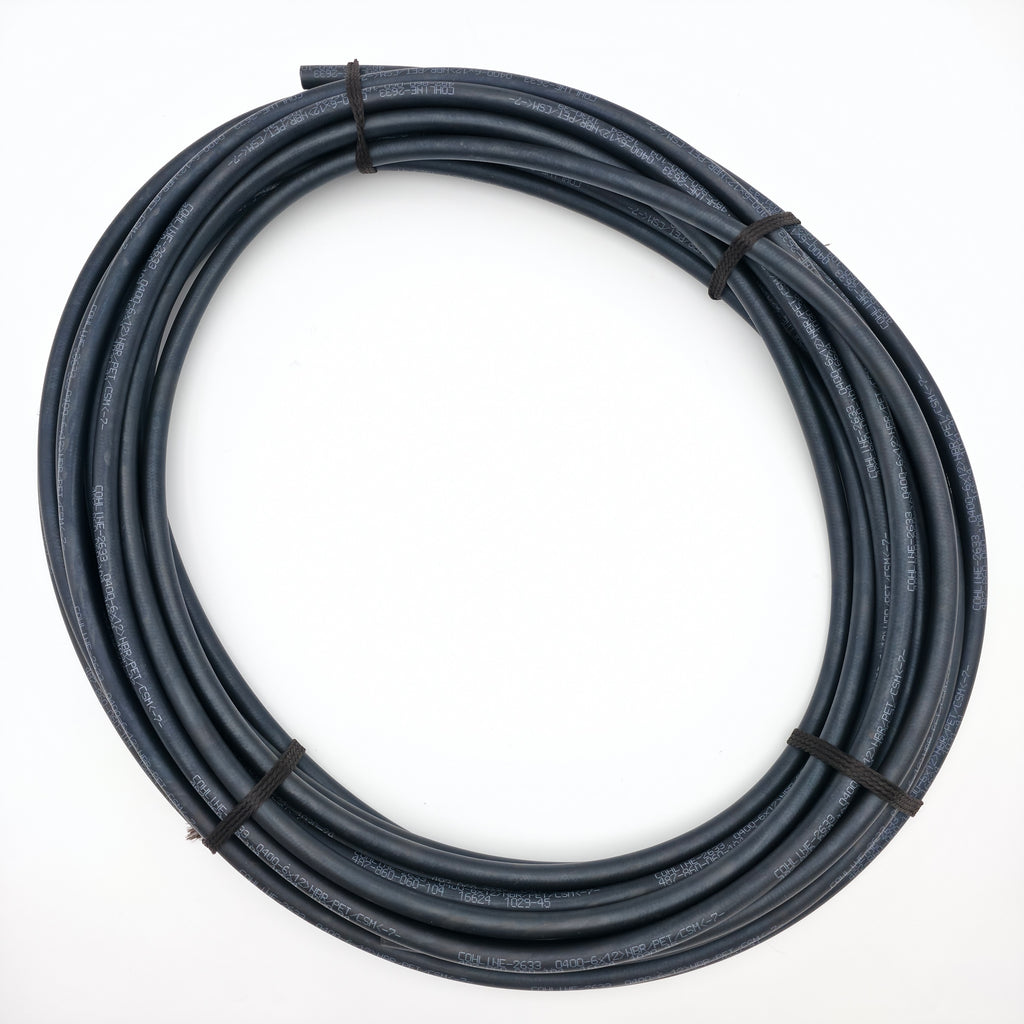

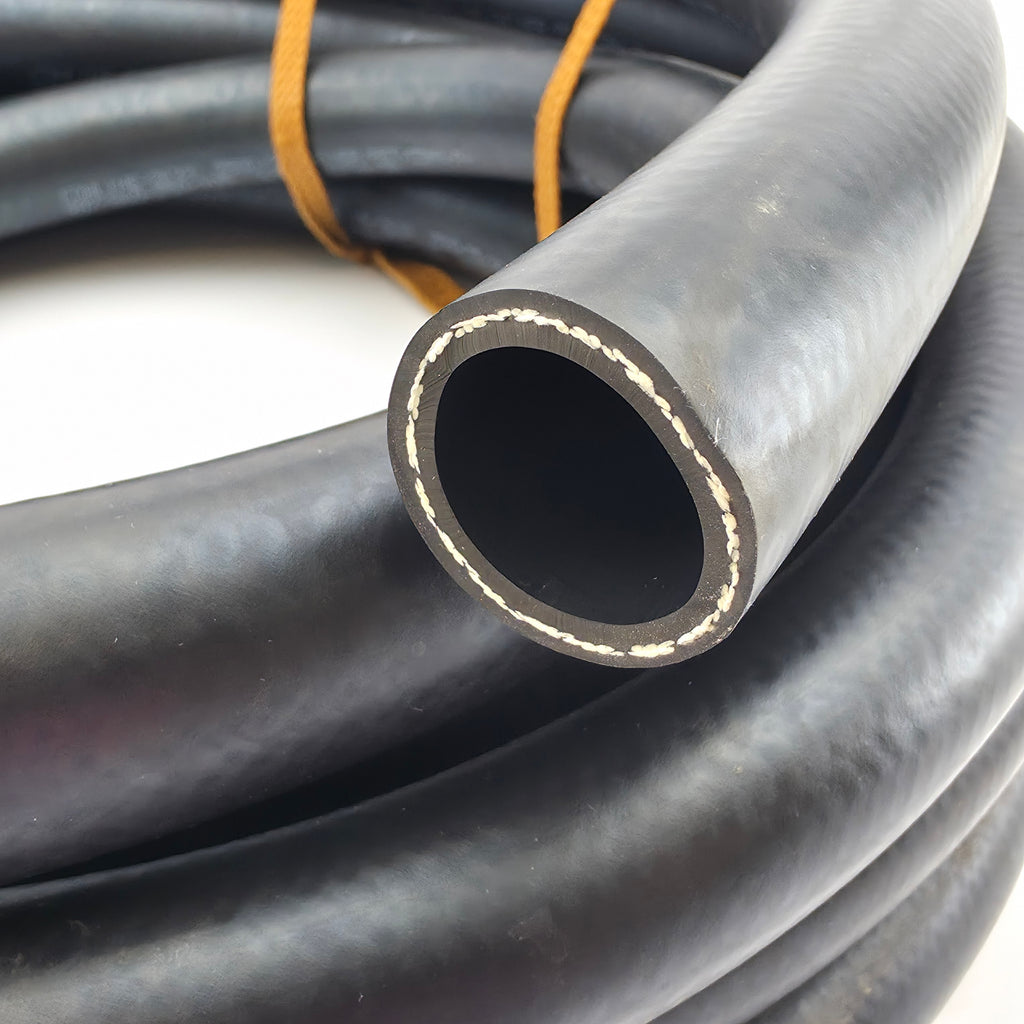

NBR rubber hose with internal polyester braiding and external abrasion resistant outer rubber layer

Internal Diameter, d (mm)
Over Braiding
SKU: 2633.0200
£10.75
20 left

Part Diagram and technical information is shown below

The maximum length available in one piece is 20m. We will always try to supply hoses in one complete length. Select Quantity of the hose length in meters needed.


Please note that only complete rolls can be returned, pieces cut from the roll cannot be returned for credit, Please ensure that you select the correct hose and length.

Scroll down

Description

Cohline's high-specification range of braided hose assemblies is engineered to meet the rigorous demands of modern automotive systems. The multi-layer construction—available in both synthetic rubber and PTFE-lined configurations—offers excellent chemical resistance, high-pressure tolerance, and thermal stability. These hoses are suitable for a wide range of critical fluid transfer applications, including fuel, coolant, and lubricating oil systems. A full complement of precision-machined fittings is available to ensure optimal integration across vehicle platforms. Extensively validated in our internal test programs and field applications, Cohline hoses have been specified by leading OEMs for long-term, high-reliability use in production and development environments.

Oil Pressure Hose — Compatible with motor lubricants (HD oils), hydraulic oils with a mineral or glycol base, vegetable oils, heating oil, and air containing oil mist.

Application suitable for motor lubricants (HD oils), hydraulic mineral oil and glycol base oil containing air from - 40°C up to+ 125°C
short-term up to 140°C
native oils (not for food) from - 40°C up to+70°C

Technical Specifications
Material

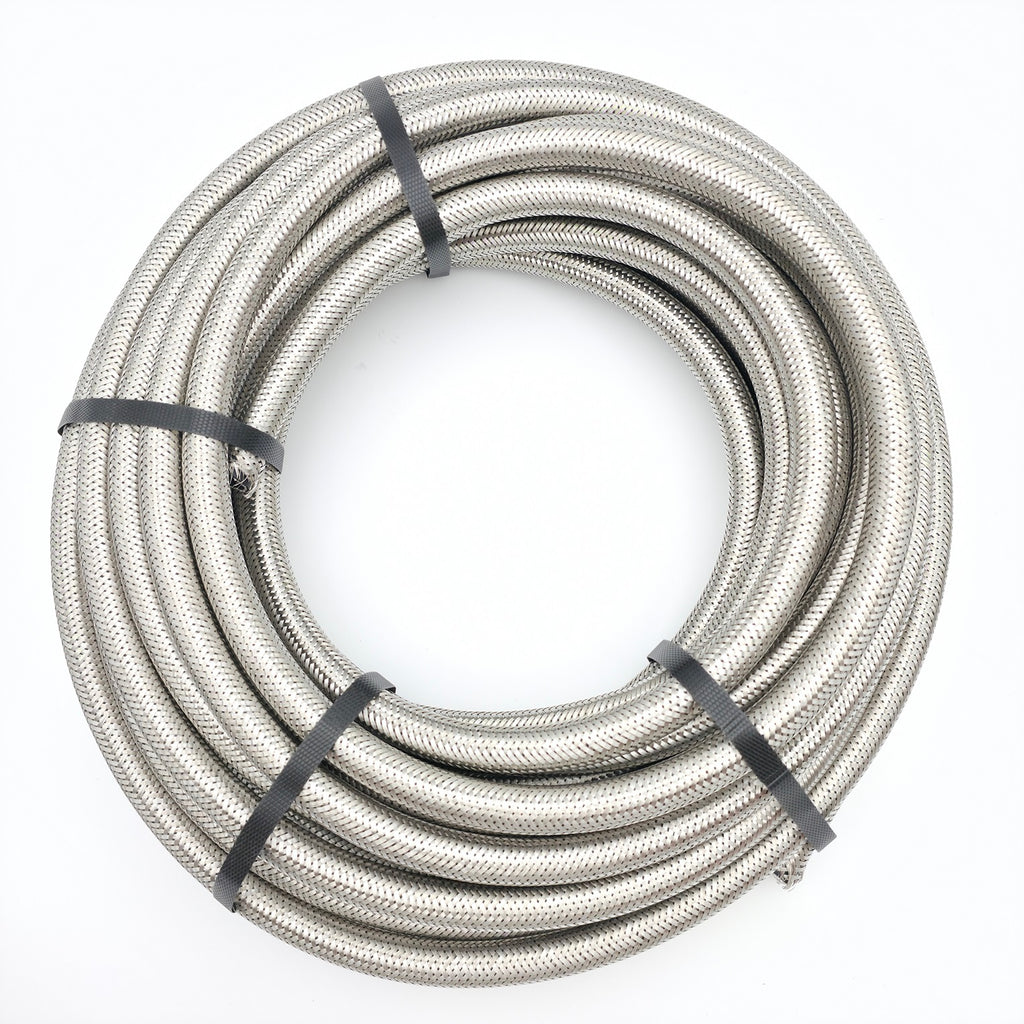

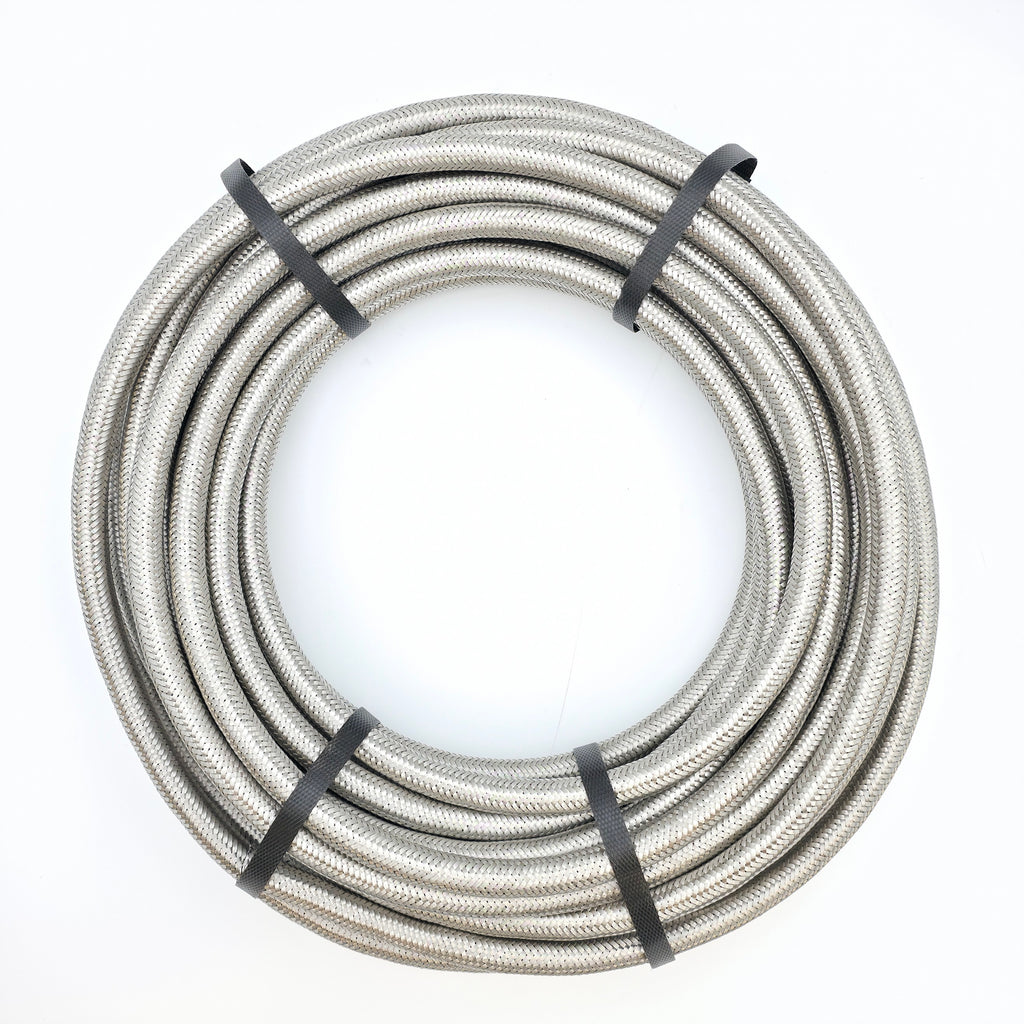

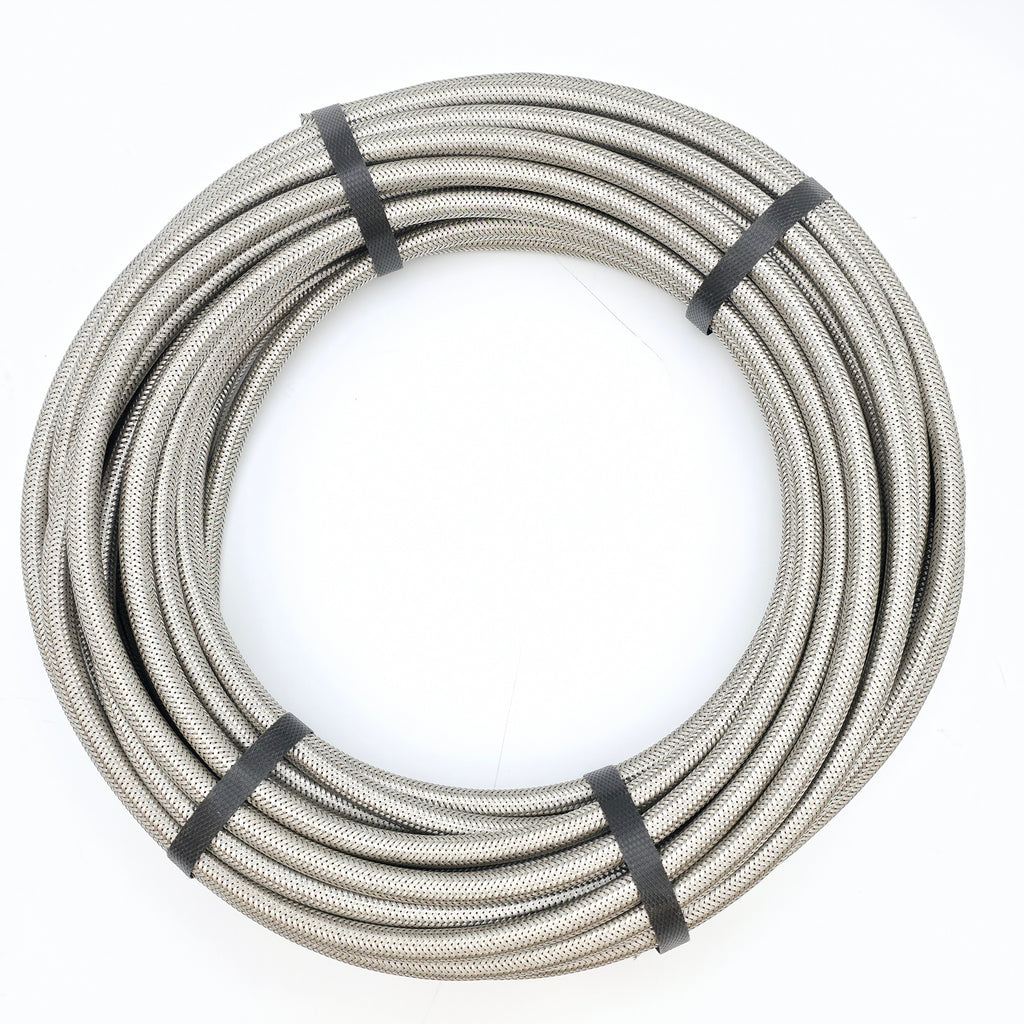

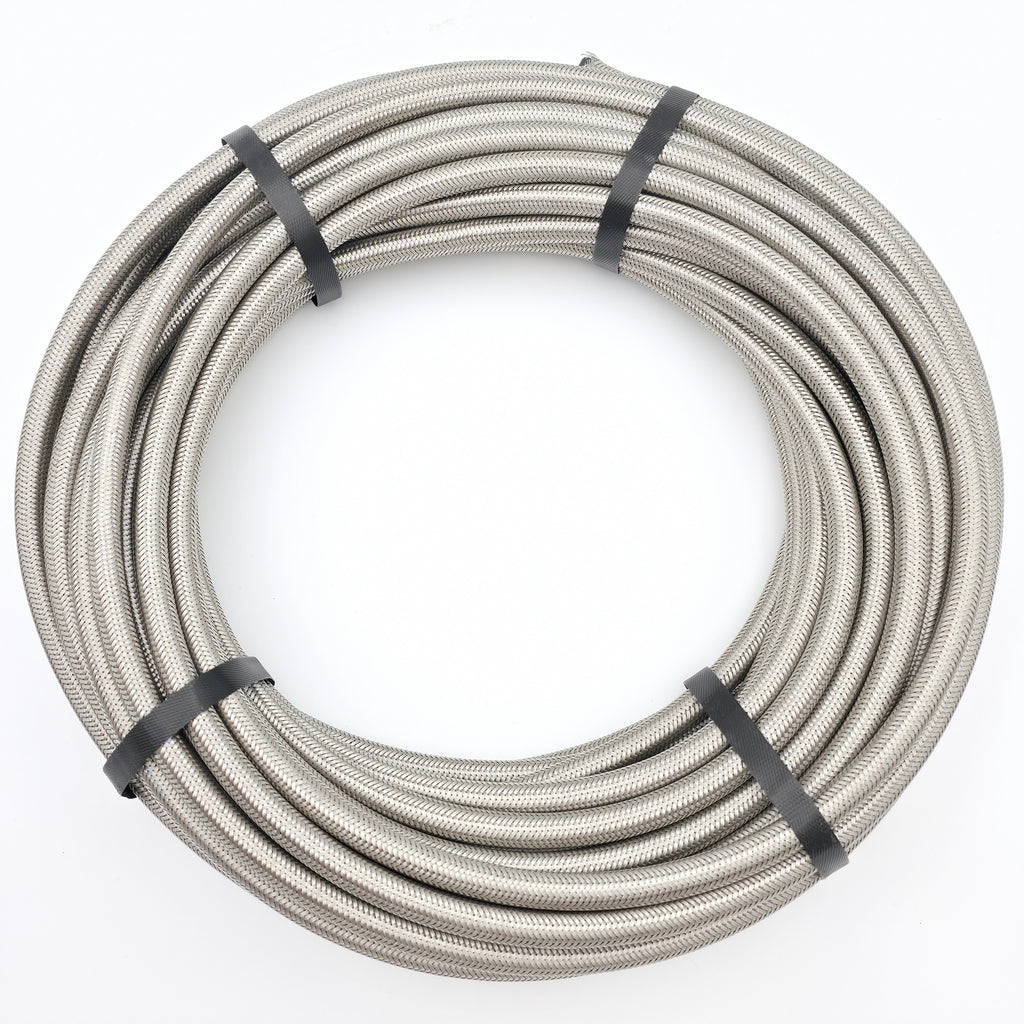

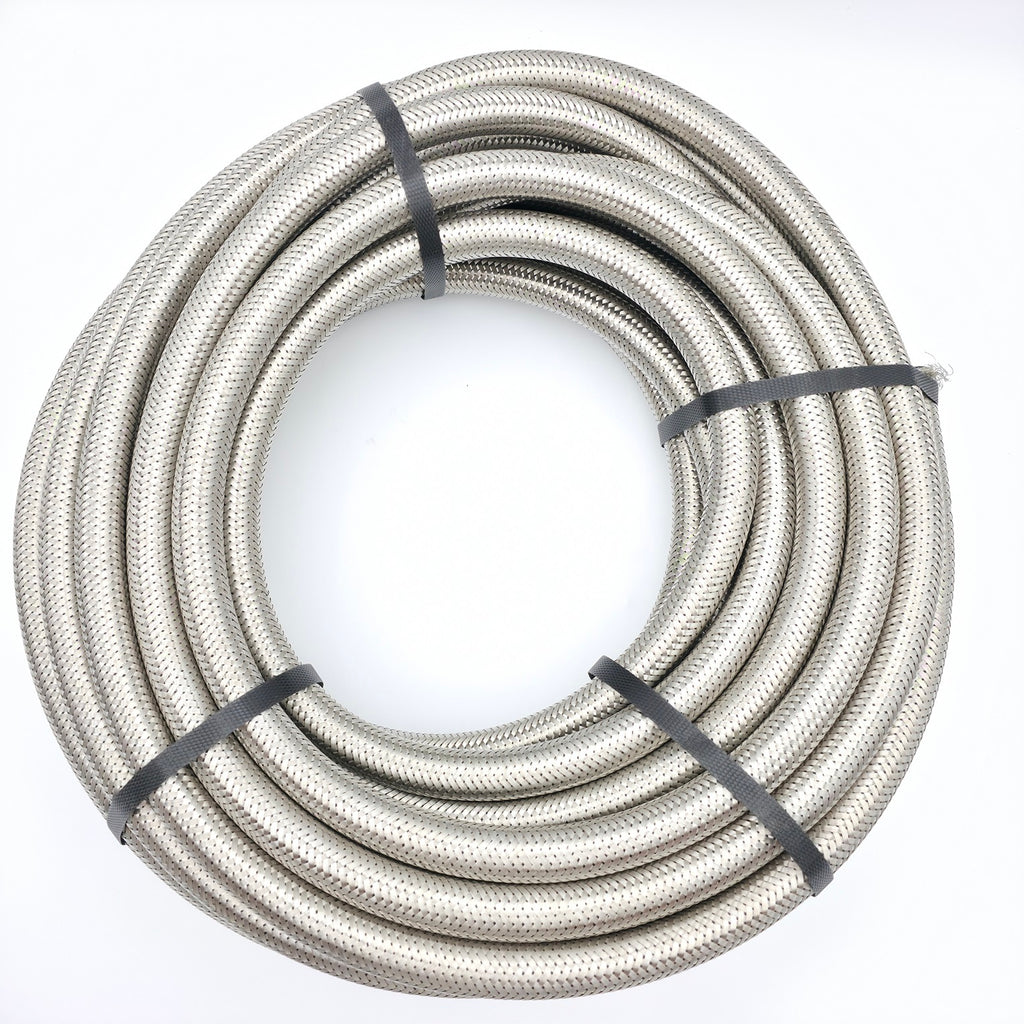

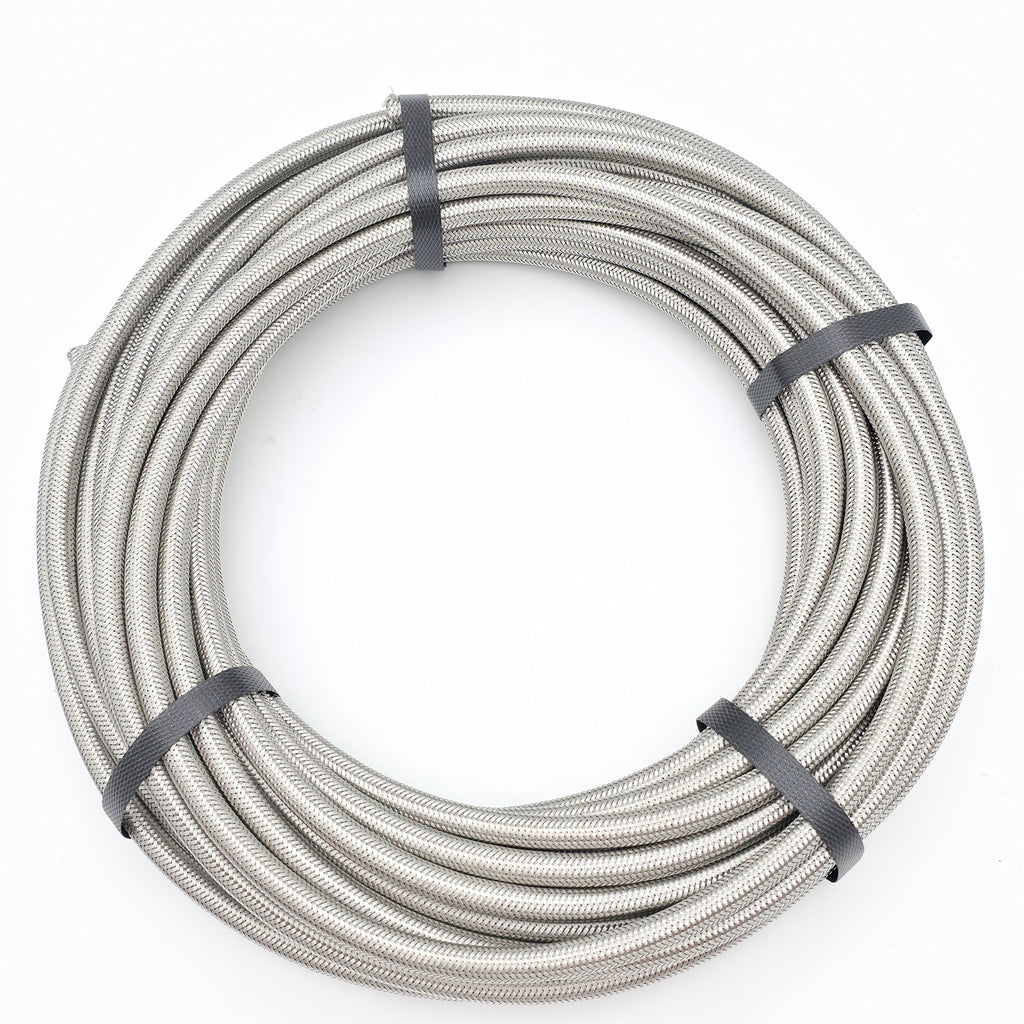

NBR rubber hose with internal polyester braiding and external abrasion resistant outer rubber layer, No Overbraiding, zinc plated steel overbraid, and Stainless Steel Over Braiding
Temperature Range
From - 40°C up to+ 125°C

Specification

Hose Diagram

Part Number

External Diameter

D (mm) ± 0.8

Internal Diameter

d (mm) ± 0.4

DN

(NW)

Smallest Bending Radius

(mm)

Working Pressure

(bar)

Bursting Pressure

(bar)

Testing Pressure

 (bar)

2633.0200 10.0 4.0 2 30 70 280 140
2633.0300 11.0 5.0 3 35 70 275 110
2633.0400 12.0 6.0 4 40 55 220 110
2633.0600 14.0 8.0 6 50 40 160 80
2633.0800 15.5 9.5 8 50 35 140 70
2633.1000 19.0 12.0 10 70 45 180 90
2633.1300 23.0 15.0 13 90 40 160 60
2633.1600 26.0 18.0 16 110 25 100 50
2633.2000 31.0 22.0 20 120 33 100 50
2633.2500 34.0 25.0 25 140 33 100 50
2633.2537 37.0 28.0 25 160 33 100 50
