Straight Quick Release Connector | Air Brake

Straight Quick Release Connector | Air Brake

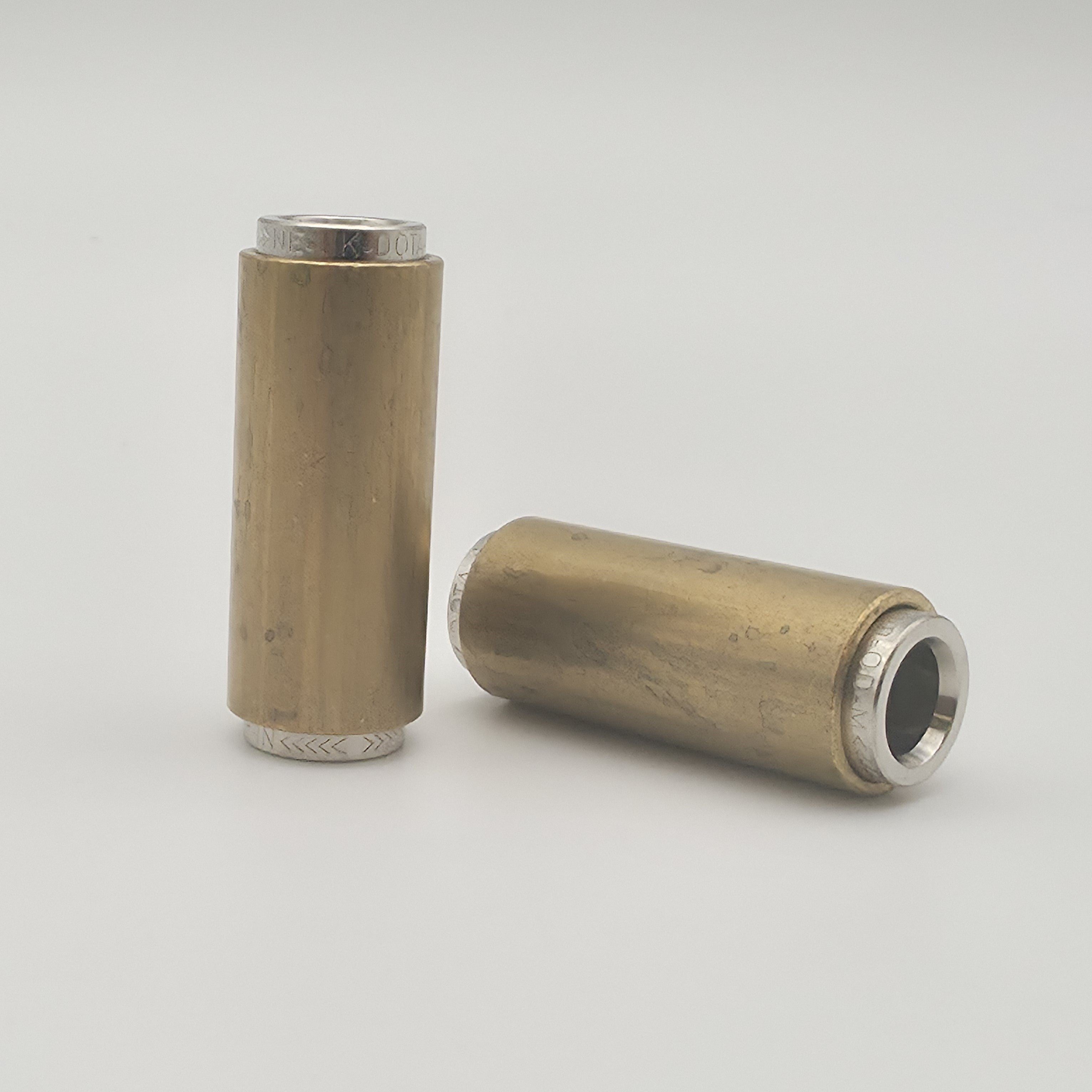

Push in connector for automotive polyamide tubes

For PA Tube External Diameter (mm)
SKU: 7905.0909
£100.00
Out of stock

Part Diagram and technical information is shown below

Scroll down

Description

The Cohline portfolio of precision-engineered adapters and fittings provides a reliable and flexible solution for routing fluid transfer lines—including fuel, oil, and coolant—across a wide range of high-performance automotive and motorsport applications. Designed to withstand the extreme demands of elevated pressure, thermal cycling, and high dynamic loads, these components are recognised as a standard in advanced fluid management systems. Each fitting is CNC-machined to ensure optimal mechanical integrity, dimensional stability, and resistance to fatigue and chemical degradation. This level of engineering ensures consistent performance and long service life in the harshest operational environments.

Checked by the German TÜV and released for the vehicle industry for air brake, additionally suitable for pneumatic, water and fuel.

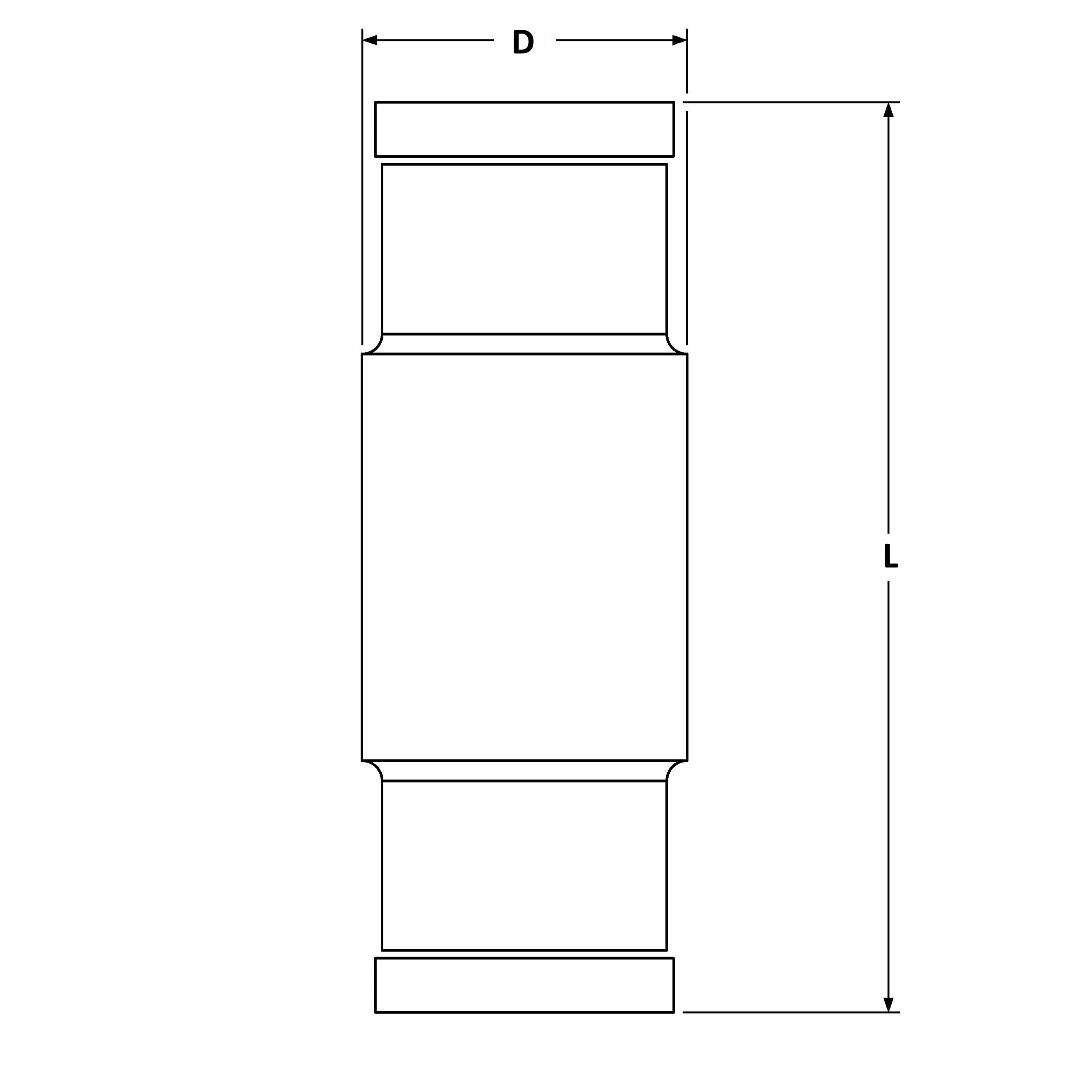

Part Diagram

Product Specification

SKU PA tube outside Ø PA tube inside Ø L (mm) D (mm)
7905.0606 6 4 35.9 13
7905.0808 8 6 38 15
7905.0909 9 6 44.3 17
7905.1111 11 8 46.5 19
7905.1212 12 9 51.4 20.4
7905.1515 15 12 61 25.5
