Brake and Clutch Refill Hose

Brake and Clutch Refill Hose

Low pressure operating hose for brake and clutch systems

Internal // External Diameter (mm)
SKU: 2337.0613
£12.00
In stock

Part Diagram and technical information is shown below

The maximum length available in one piece is 20m. We will always try to supply hoses in one complete length. Select Quantity of the hose length in meters needed.


Please note that only complete rolls can be returned, pieces cut from the roll cannot be returned for credit, Please ensure that you select the correct hose and length.

Scroll down

Description

Cohline's high-specification range of braided hose assemblies is engineered to meet the rigorous demands of modern automotive systems. The multi-layer construction—available in both synthetic rubber and PTFE-lined configurations—offers excellent chemical resistance, high-pressure tolerance, and thermal stability. These hoses are suitable for a wide range of critical fluid transfer applications, including fuel, coolant, and lubricating oil systems. A full complement of precision-machined fittings is available to ensure optimal integration across vehicle platforms. Extensively validated in our internal test programs and field applications, Cohline hoses have been specified by leading OEMs for long-term, high-reliability use in production and development environments.

Resistant against all commercial brake fluids based on polyglycol: DOT3, DOT4, DOT5.1

Resistant against all usable polyglycol hydraulic liquids and hydrous medium (very low water penetration)

Weather resistant from -40°C to +125°C, short term up to 150°C.

Resistant against brake fluid

Technical Specifications
Material

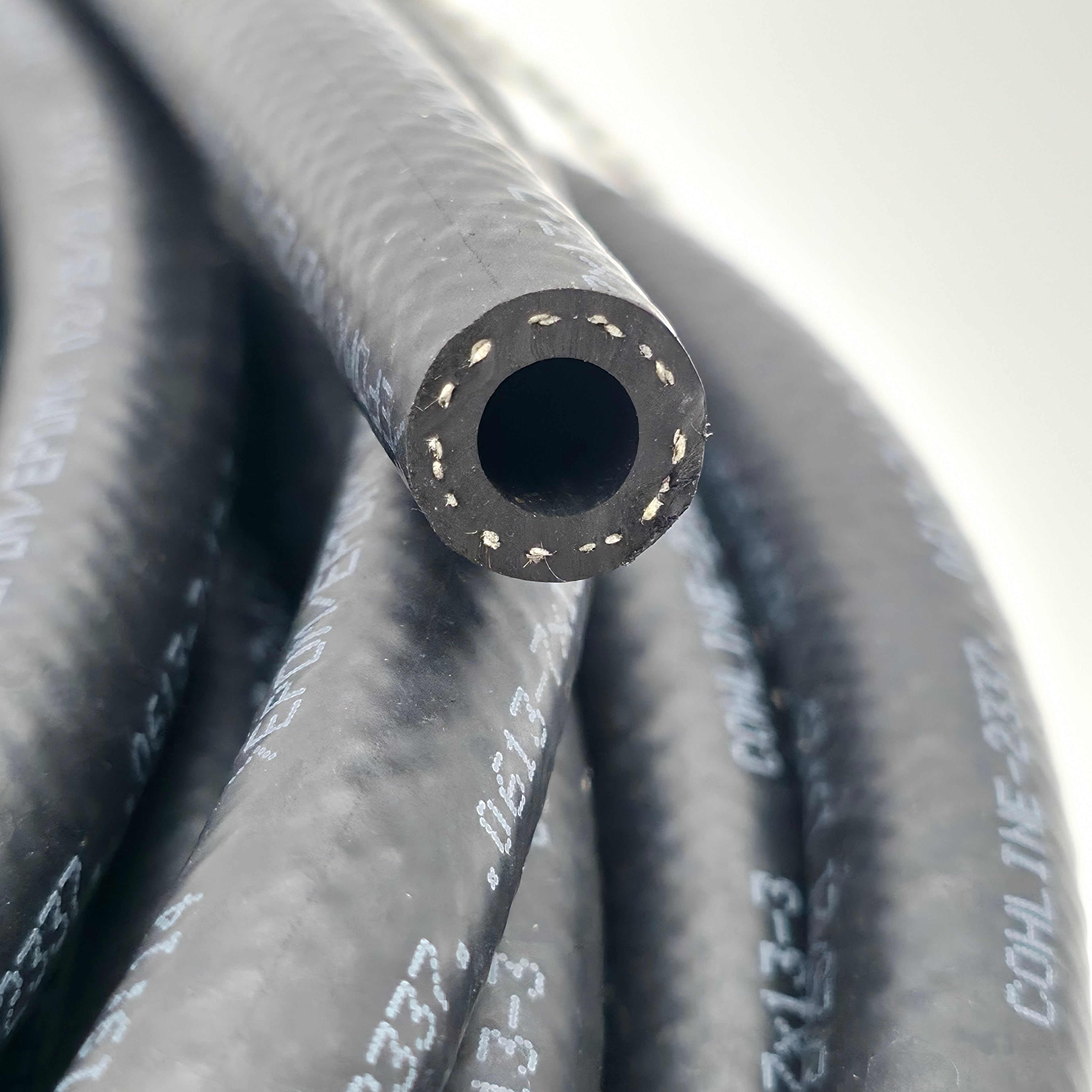

EPDM rubber hose with Internal Aramid braiding

Specification

Hose Diagram

SKU

External Diameter

(mm)

Internal Diameter

(mm)

Wall Thickness

(mm)

Working Pressure

(bar)

Testing Pressure

(bar)

Bursting Pressure

(bar)

2337.0613 13 ± 0.6 7 ± 0.3 3 15 30 60
2337.0915 15 ± 0.6 9 ± 0.3 3 25 50 60
