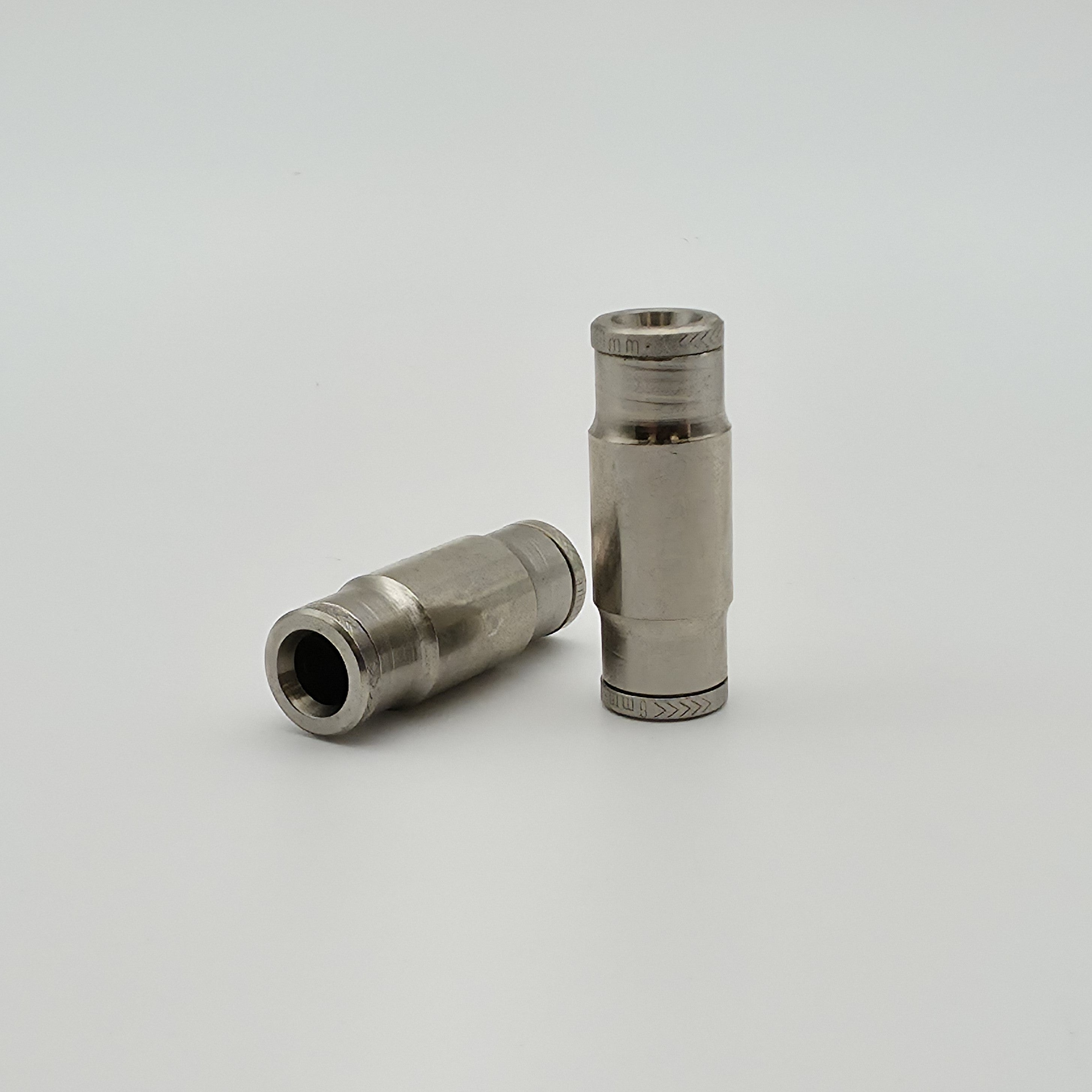

Straight Quick Release Connector | Polyamide Tubes

Straight Quick Release Connector | Polyamide Tubes

For PA Tube with External Diameter (mm)
SKU: 7904.0606
£9.70
In stock

Part Diagram and technical information is shown below

Scroll down

Description

The Cohline portfolio of precision-engineered adapters and fittings provides a reliable and flexible solution for routing fluid transfer lines—including fuel, oil, and coolant—across a wide range of high-performance automotive and motorsport applications. Designed to withstand the extreme demands of elevated pressure, thermal cycling, and high dynamic loads, these components are recognised as a standard in advanced fluid management systems. Each fitting is CNC-machined to ensure optimal mechanical integrity, dimensional stability, and resistance to fatigue and chemical degradation. This level of engineering ensures consistent performance and long service life in the harshest operational environments.

Special operating areas for pneumatic, water as well as vehicle industry

Operating Pressure: Vacuum 18 bar

Material

Nickel-Plated Brass

DIN Standard

Compliant with BS ISO 14743

Part Diagram

Product Specification

SKU D (mm) L (mm) PA tube inner Ø (mm) PA tube outside Ø (mm)
7904.0404 9 31 2 4
7904.0505 11 32 3 5
7904.0606 12 33 4 6
7904.0808 14 35 6 8
7904.1010 17 45 8 10
7904.1212 21 51 9 12
