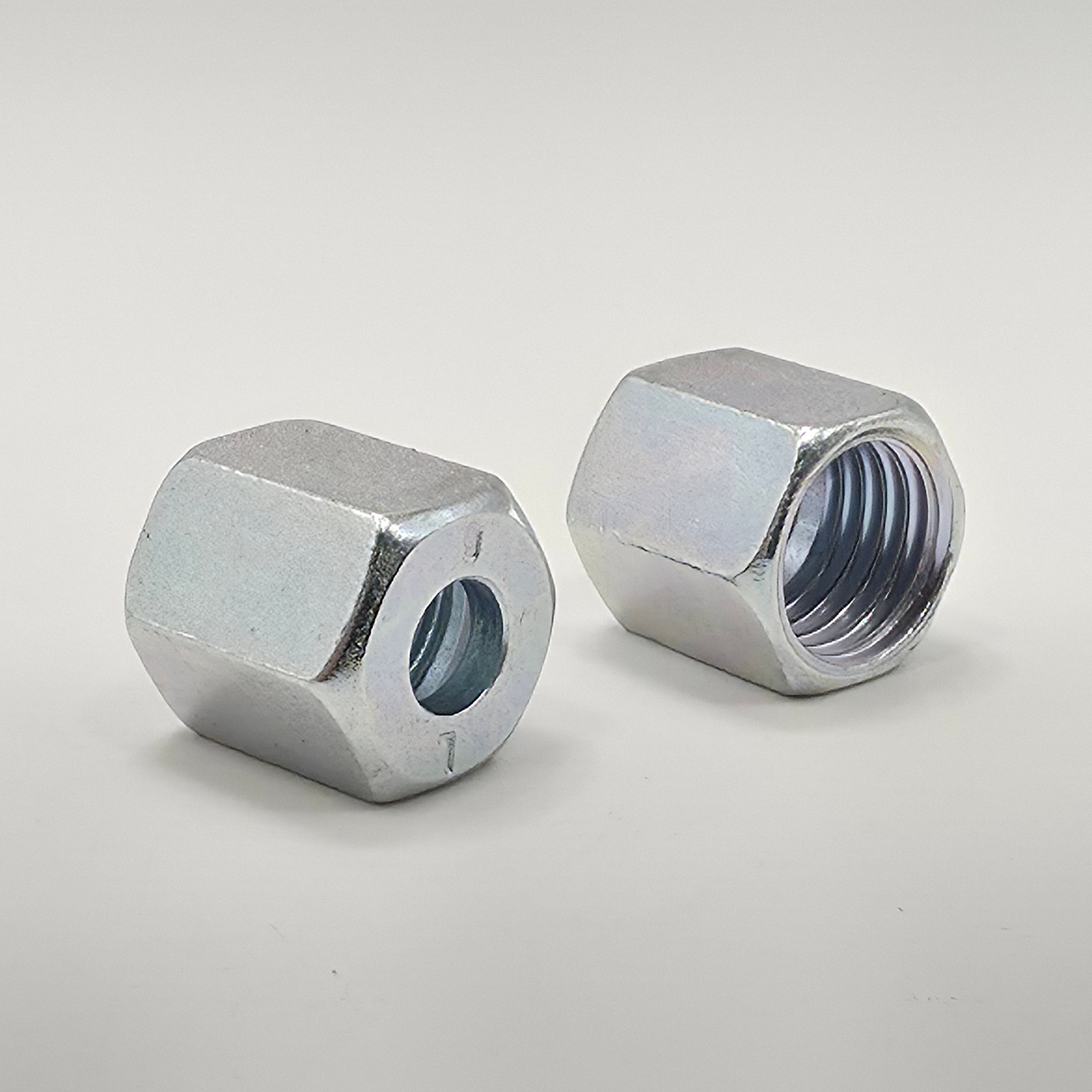

Swivel Nut | Light type

Swivel Nut | Light type

type A 3 L, DIN 3870, respectively ISO 8434-1 N-L, light type

Outer Diameter
Thread
SKU: 9131.0406
£0.80
In stock

Part Diagram and technical information is shown below

Scroll down

Description

The Cohline portfolio of precision-engineered adapters and fittings provides a reliable and flexible solution for routing fluid transfer lines—including fuel, oil, and coolant—across a wide range of high-performance automotive and motorsport applications. Designed to withstand the extreme demands of elevated pressure, thermal cycling, and high dynamic loads, these components are recognised as a standard in advanced fluid management systems. Each fitting is CNC-machined to ensure optimal mechanical integrity, dimensional stability, and resistance to fatigue and chemical degradation. This level of engineering ensures consistent performance and long service life in the harshest operational environments.

Material

Zinc Plated Steel

DIN Standard

type A 3 L, DIN 3870, respectively ISO 8434-1 N-L, light type

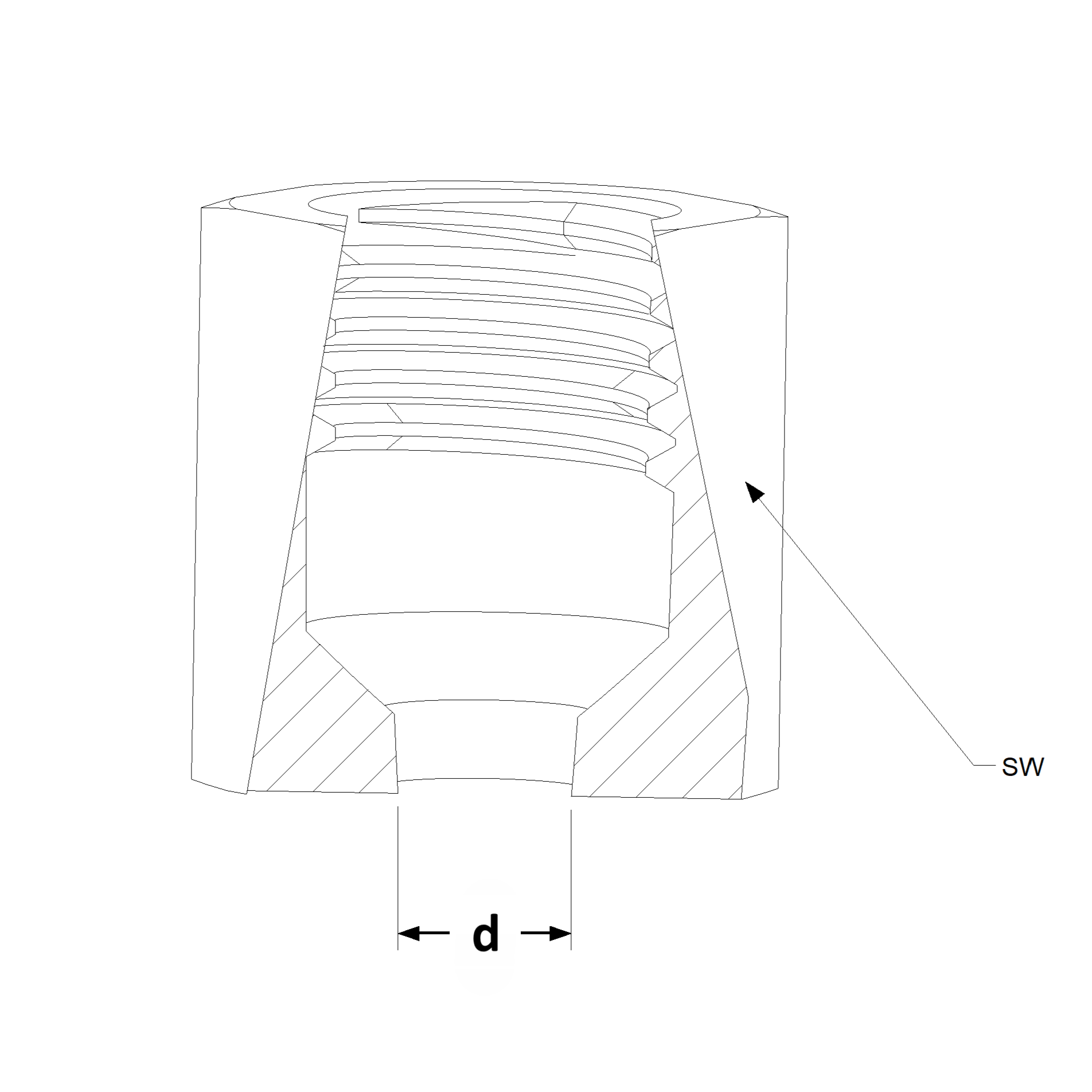

Part Diagram

Product Specification

Part Number  for pipe outer Ø, d (mm) DN (NW) Thread SW
(mm)
9131.0204 4 2 M8 x 1 10
9131.0305 5 3 M10 x 1 12
9131.0306 6 3 M10 x 1 12
9131.0406 6 4 M12 x1.5 14
9131.0508 8 5 M12 x 1 14
9131.0608 8 6 M14 x 1.5 17
9131.0810 10 8 M16 x 1.5 19
9131.1012 12 10 M18 x 1.5 22
9131.1315 15 13 M22 x 1.5 27
9131.1316 16 13 M22 x 1.5 27
9131.1618 18 16 M26 x 1.5 32
9131.2022 22 20 M30 x 2 36
9131.2528 28 25 M36 x 2 41
