Threaded Hose Adapter | Double 60° Cone

Threaded Hose Adapter | Double 60° Cone

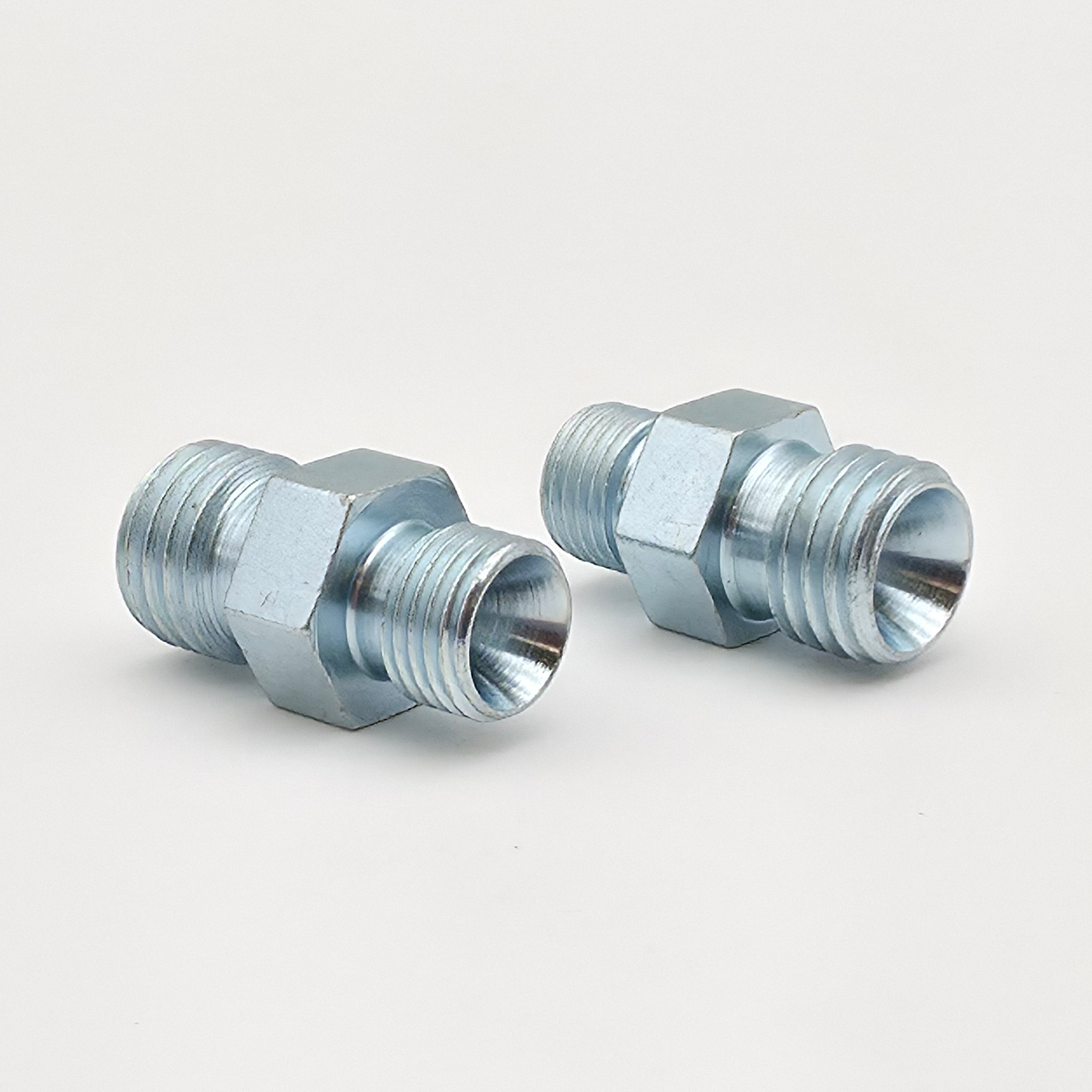

Threaded Hose Adaptor with an internal 60° cone on both sides

Thread 1
Thread 2
SKU: 8150.0403 discontinued
£5.00
In stock

Part Diagram and technical information is shown below

Scroll down

Description

The Cohline portfolio of precision-engineered adapters and fittings provides a reliable and flexible solution for routing fluid transfer lines—including fuel, oil, and coolant—across a wide range of high-performance automotive and motorsport applications. Designed to withstand the extreme demands of elevated pressure, thermal cycling, and high dynamic loads, these components are recognised as a standard in advanced fluid management systems. Each fitting is CNC-machined to ensure optimal mechanical integrity, dimensional stability, and resistance to fatigue and chemical degradation. This level of engineering ensures consistent performance and long service life in the harshest operational environments.

Material

Zinc Plated Steel

DIN Standard

7631

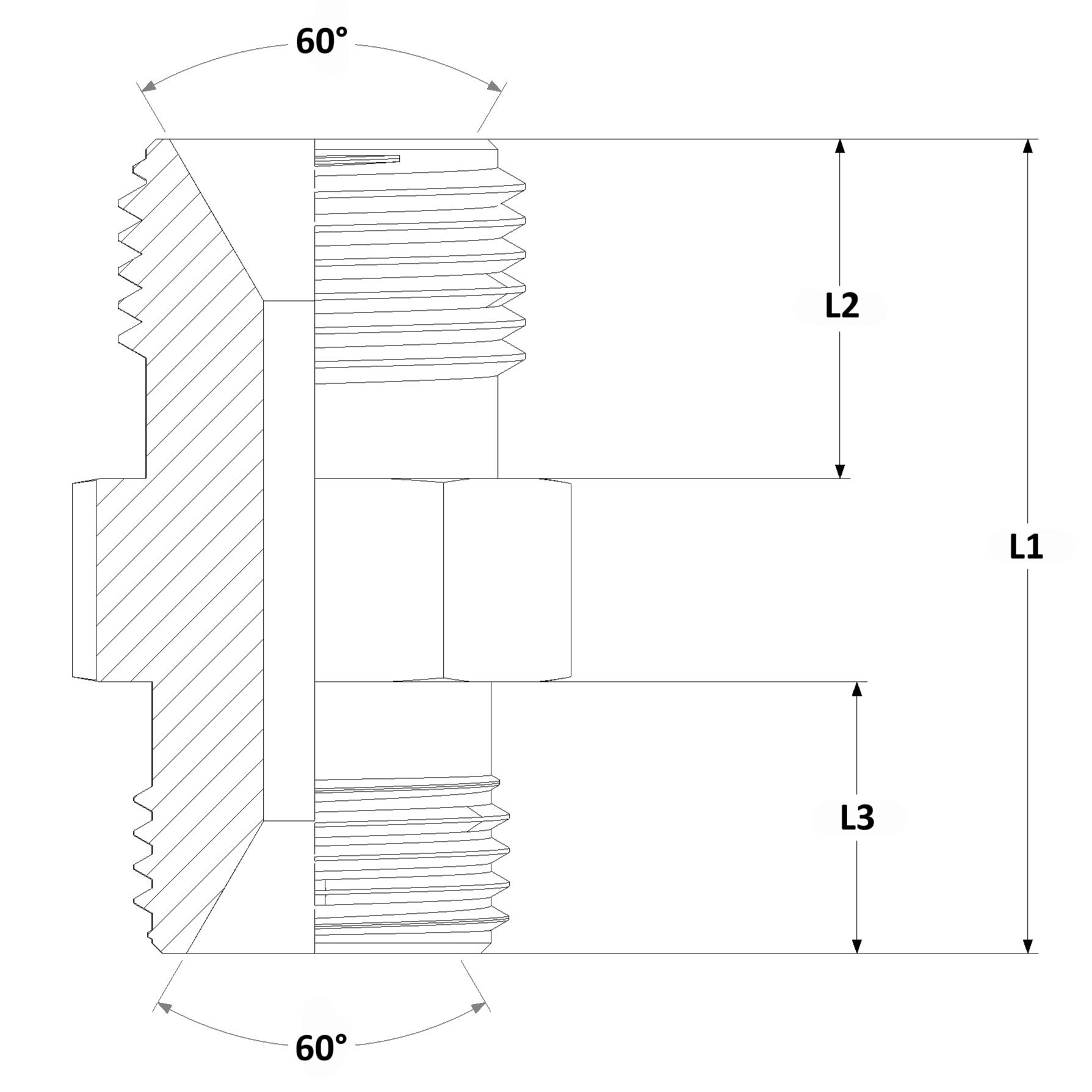

Part Diagram

Product Specification

SKU SW (mm) DN L1 L2 L3 Thread 1 Thread 2
60˚ inner cone 60˚ inner cone
8150.0303 11 3 21 8 8 M10 x 1  M10 x 1
8150.0404 13 4 26 10 10 M12 x 1.5  M12 x 1.5
8150.0403 13 4/3 24 10 8 M12 x 1.5  M10 x 1
8150.0606 14 6 26 10 10 M14 x 1.5  M14 x 1.5
8150.0604 14 6/4 26 10 10 M14 x 1.5  M12 x 1.5
8150.0808 17 8 28 11 11 M16 x 1.5  M16 x 1.5
8150.0806 17 8/6 27 11 10 M16 x 1.5  M14 x 1.5
8150.1010 19 10 30 11 11 M18 1.5  M18 x 1.5
8150.1008 19 10/8 28 11 11 M18 x 1.5  M16 x 1.5
8150.1313 22 13 32 12 12 M22 x 1.5  M22 x 1.5
8150.1310 22 13/10 31 12 11 M22 x 1.5  M18 x 1.5
8150.1616 27 16 34 12 12 M26 x 1.5  M26 x 1.5
8150.1613 27 16/13 34 12 12 M26 x 1.5  M22 x 1.5
8154.0308 17 3/8 26 10 10 G 1/8"  G 3/8"
8154.0606 14 6 29 11 11 G 1/4"  G 1/4"
8154.0608 17 6/8 26 10 10 G 1/4"  G 3/8"
8154.0808 17 8 26 10 10 G 3/8"  G 3/8"
8154.1313 22 13 27 10 10 G 1/2"  G 1/2"
8154.1308 22 13/8 27 10 10 G 1/2"  G 3/8"
8154.2525 24 25 53 22 22 G 1"  G 1"
