Tube Bend Hose Nipple with Banjo

Tube Bend Hose Nipple with Banjo

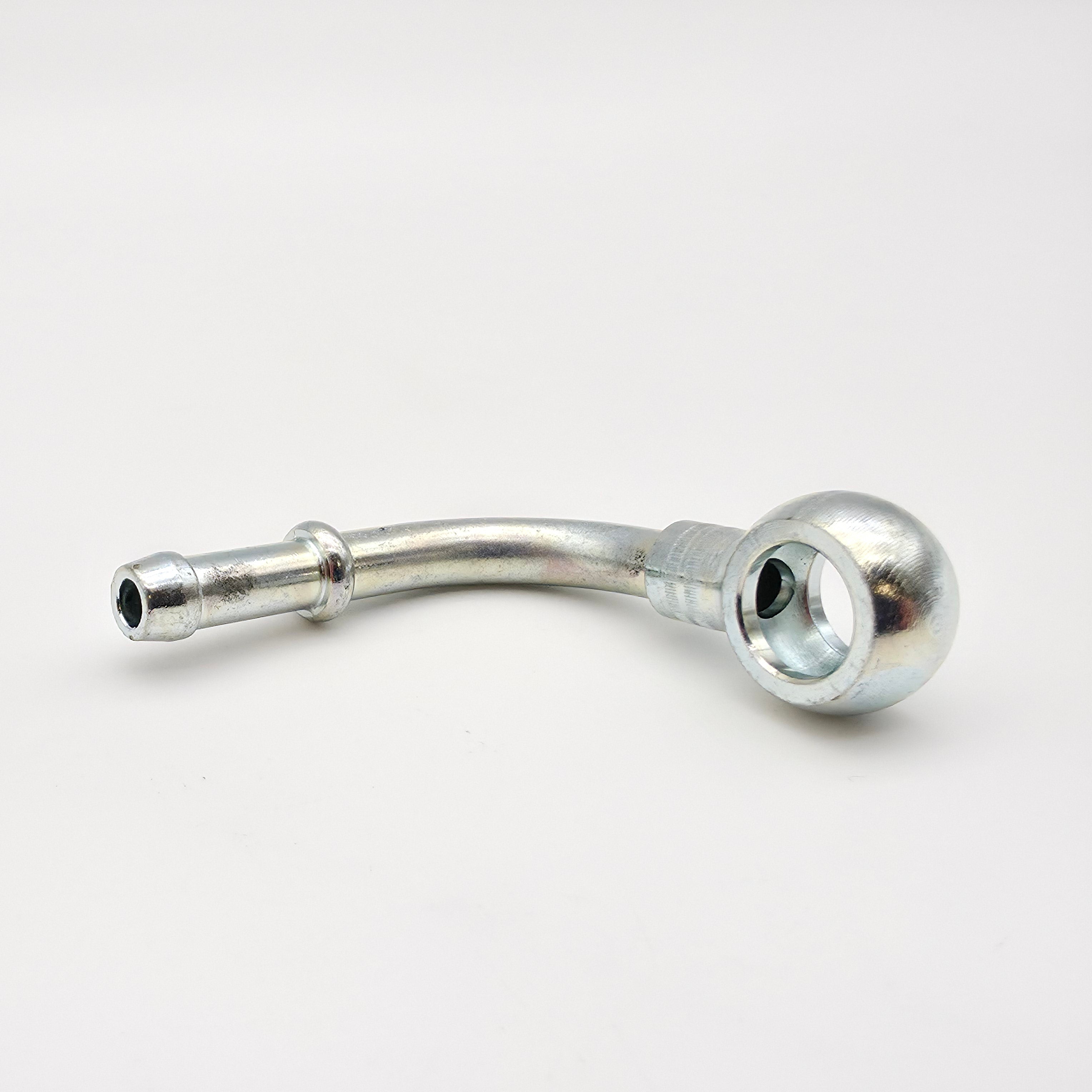

90° Tube elbow bend with a banjo fitting at one end and a hose nipple at the other.


Ø for hose inside
SKU: 8081.90.0400
£12.85
In stock

Part Diagram and technical information is shown below

Scroll down

Description

The Cohline portfolio of precision-engineered adapters and fittings provides a reliable and flexible solution for routing fluid transfer lines—including fuel, oil, and coolant—across a wide range of high-performance automotive and motorsport applications. Designed to withstand the extreme demands of elevated pressure, thermal cycling, and high dynamic loads, these components are recognised as a standard in advanced fluid management systems. Each fitting is CNC-machined to ensure optimal mechanical integrity, dimensional stability, and resistance to fatigue and chemical degradation. This level of engineering ensures consistent performance and long service life in the harshest operational environments.

Material

Zinc Plated Steel

DIN Standard

7642/B

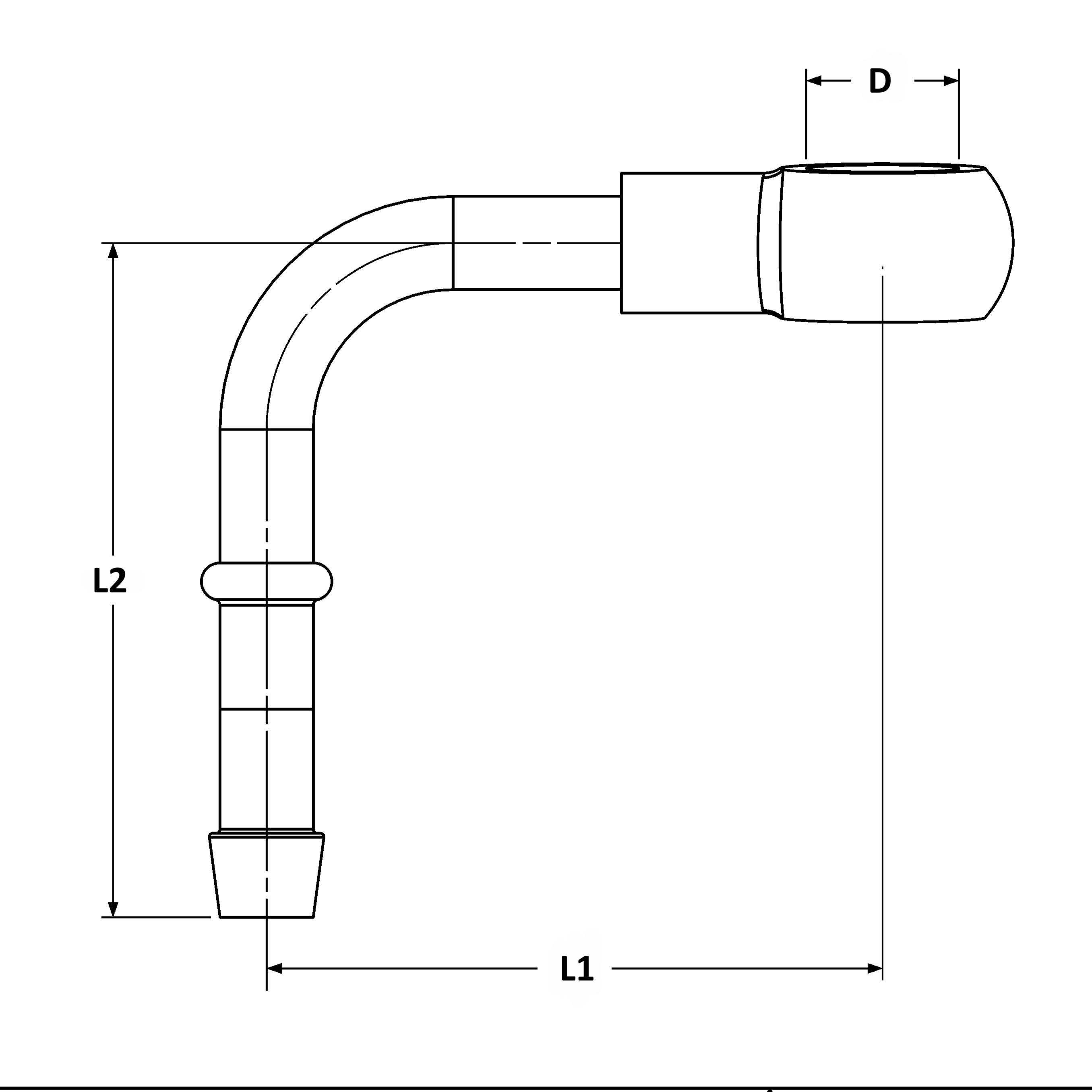

Part Diagram

Product Specification

SKU D (mm) Ø for hose inside  DN L1 (mm) L2 (mm) Banjo orientation Suitable for banjo bolt
part no. thread
8081.90.0300 8 4 - 5 3 28 25 8091.030080 M8 x 1
8081.90.0400 10 5 - 6 4 35 25 8091.040080 M10 x 1
8081.90.0600 12 7 - 8 6 44 30 8091.91.060082 M12 x 1.5
8081.90.0800 14 9 - 10 8 58 30 8091.08008 M14 x 1.5
8081.90.1000 16 11 - 12 10 61 35 8091.19.100082 M16 x 1.5
8081.90.1300 18 14 - 15 13 63 50 8091.19.130082 M18 x 1.5
8081.90.1600 22 17 - 18 16 68 55 8091.160082 M22 x 1.5
