90° Elbow Nipple

90° Elbow Nipple

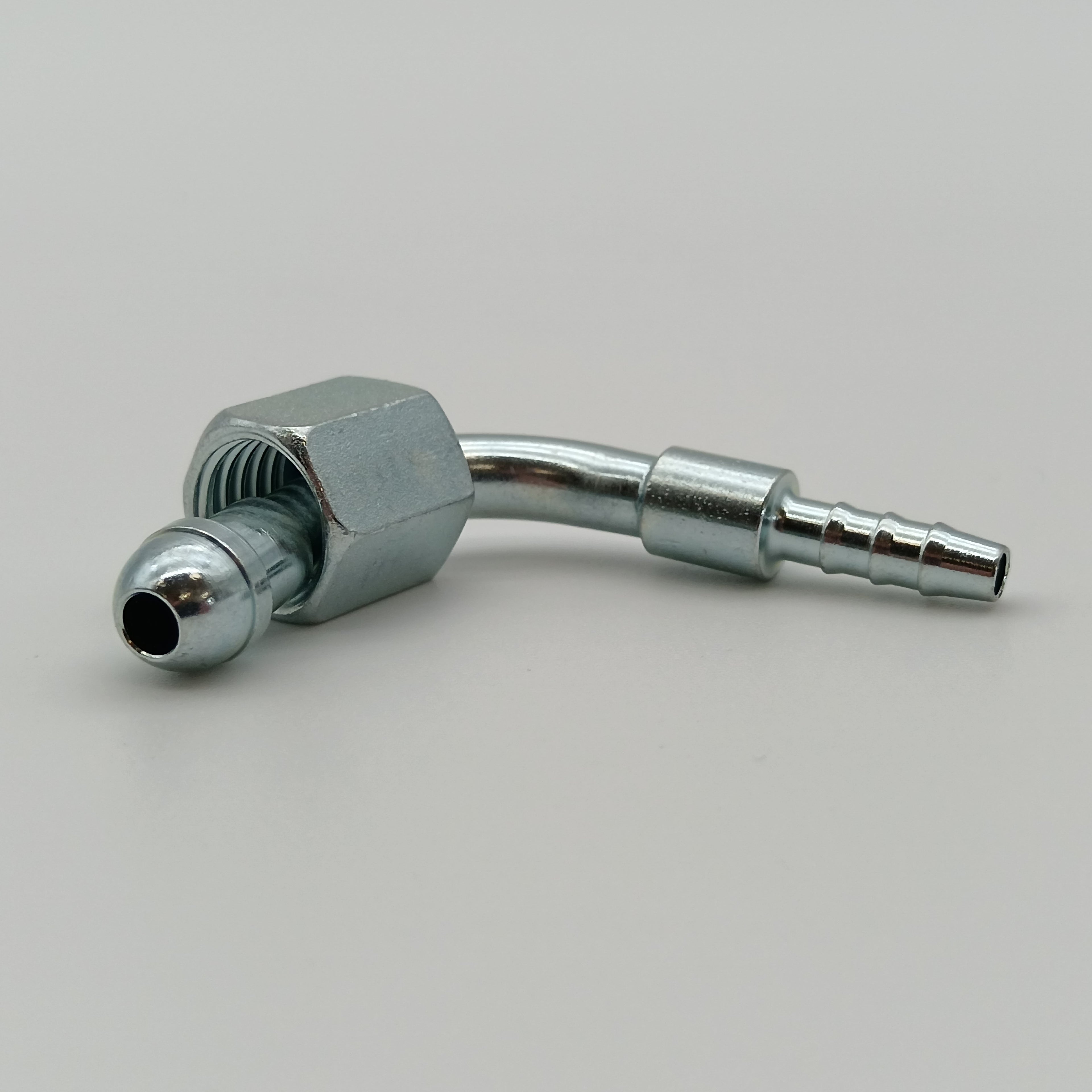

Zinc plated mild steel tube bend nipple 90° elbow fittings with conical nipple to DIN 3863 and swivel nut on the other end DIN 3870.

Internal Ø, d (mm)
L2 (mm)
SKU: 7040.90.0400
£50.00
In stock

Part Diagram and technical information is shown below

Scroll down

Description

The Cohline portfolio of precision-engineered adapters and fittings provides a reliable and flexible solution for routing fluid transfer lines—including fuel, oil, and coolant—across a wide range of high-performance automotive and motorsport applications. Designed to withstand the extreme demands of elevated pressure, thermal cycling, and high dynamic loads, these components are recognised as a standard in advanced fluid management systems. Each fitting is CNC-machined to ensure optimal mechanical integrity, dimensional stability, and resistance to fatigue and chemical degradation. This level of engineering ensures consistent performance and long service life in the harshest operational environments.

Material

Zinc Plated Mild Steel

DIN Standard

Conical Nipple to DIN 3863 / Swivel Nut to DIN 3870

Part Diagram

Product Specification

Part Number  d
internal Ø (mm)
L 1 (mm) L2 (mm) SW Thread
7040.90.0400 2.9 36 30 14 M12 x 1.5
7040.90.0406 4.7 36 30 14 M12 x 1.5
7040.90.0600 4.7 36 32 12 M14 x 1.5
7040.90.0800 6.8 40 40 19 M16 x 1.5
7040.90.0810 7.9 40 40 19 M16 x 1.5
