Banjo Bolts | Metric

Banjo Bolts | Metric

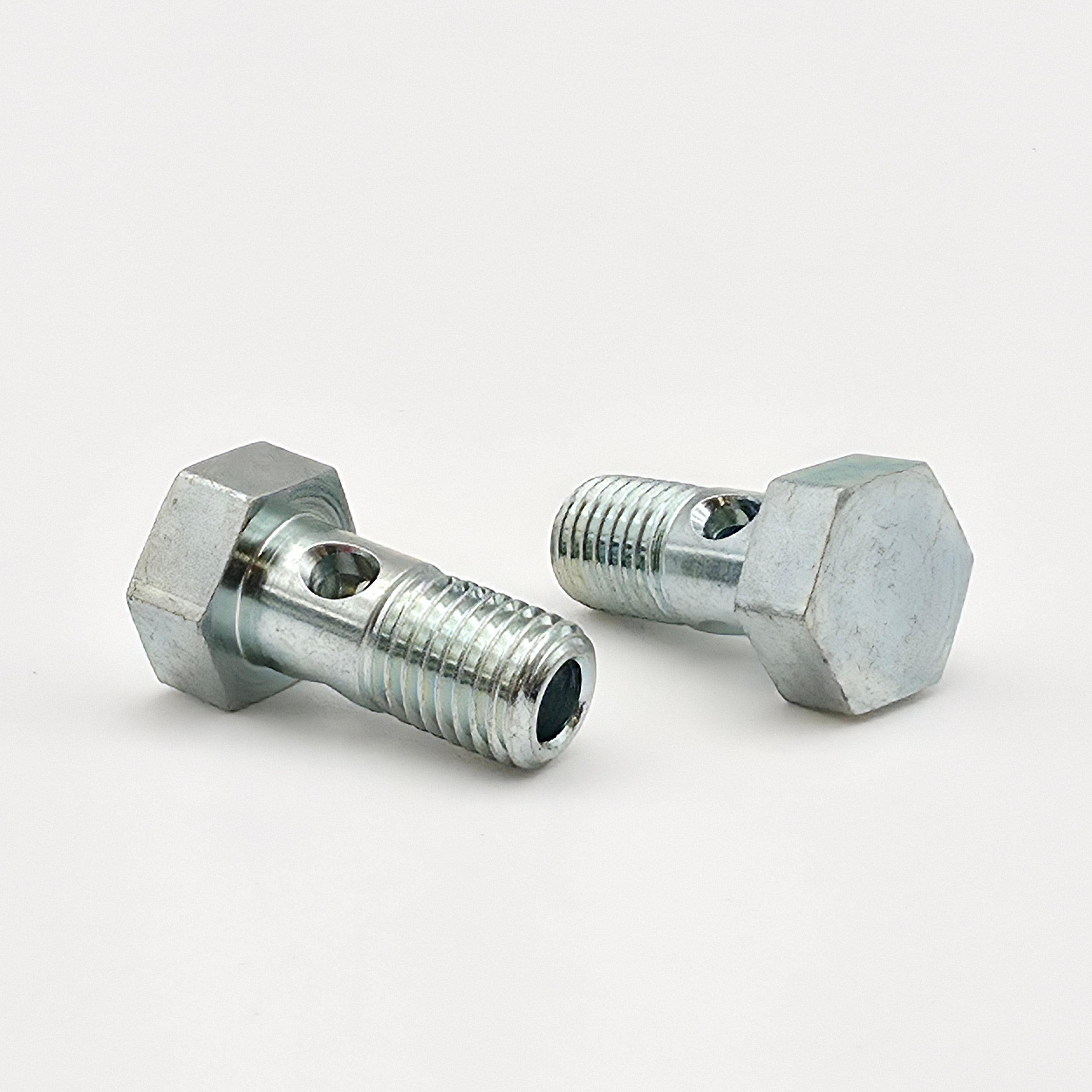

Zinc plated mild steel banjo bolt

Thread
Length (mm)
SKU: 8091.0300.80
£1.55
In stock

Part Diagram and technical information is shown below

Scroll down

Description

The Cohline portfolio of precision-engineered adapters and fittings provides a reliable and flexible solution for routing fluid transfer lines—including fuel, oil, and coolant—across a wide range of high-performance automotive and motorsport applications. Designed to withstand the extreme demands of elevated pressure, thermal cycling, and high dynamic loads, these components are recognised as a standard in advanced fluid management systems. Each fitting is CNC-machined to ensure optimal mechanical integrity, dimensional stability, and resistance to fatigue and chemical degradation. This level of engineering ensures consistent performance and long service life in the harshest operational environments.

Material

Zinc Plated Steel

DIN Standard

7643-3

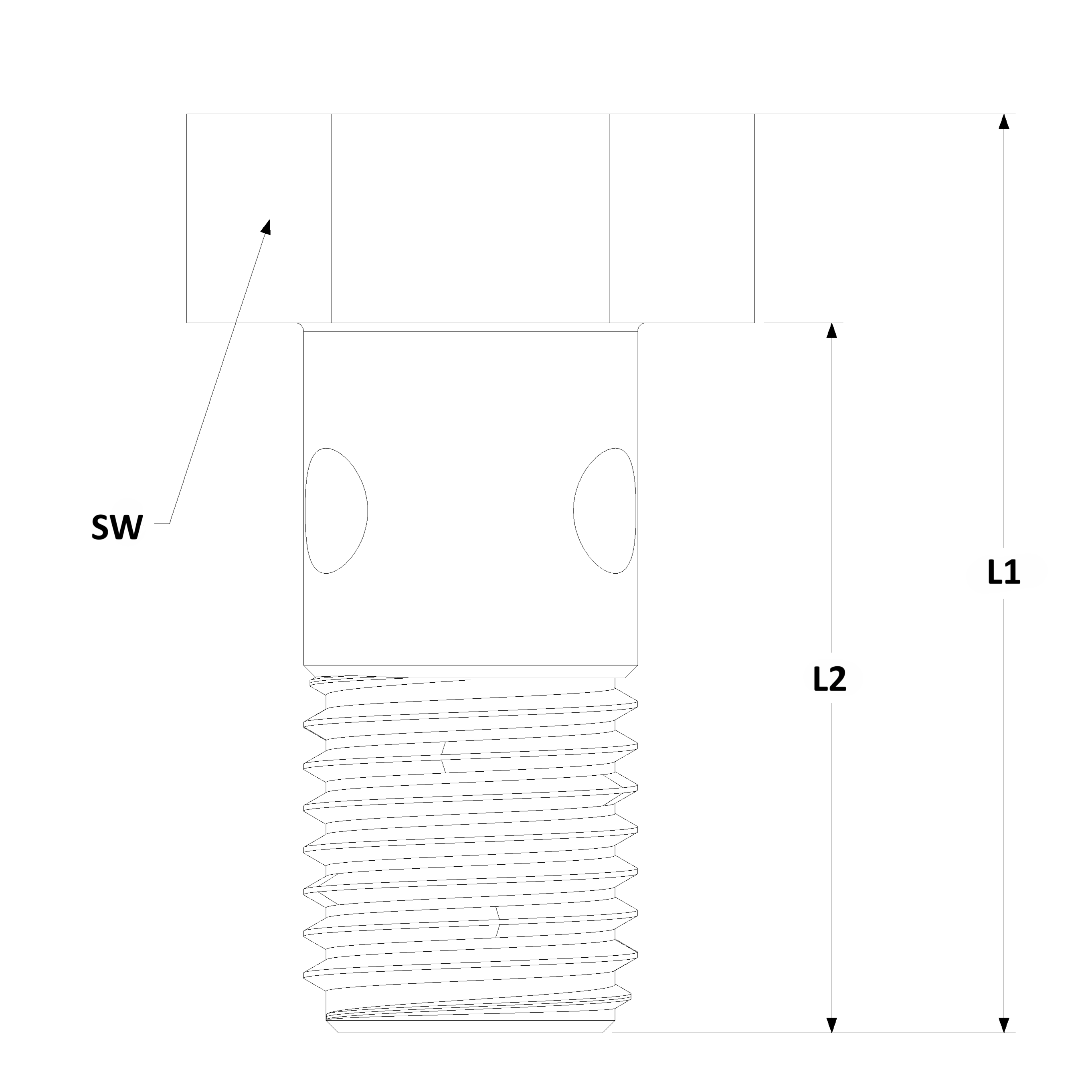

Part Diagram

Product Specification

SKU type SW (mm) Thread DN L1 (mm)  L2 (mm)
8091.030080 Short 12 M8 x 1 3 22 17
8091.040080 Short 14 M10 x 1 4 25 19
8091.19.060082 Short 17 M12 x 1.5 6 30 24
8091.08008 Short 19 M14 x 1.5 8 32 26
8091.19.100082 Short 22 M16 x 1.5 10 34 28
8091.19.130082 Short 24 M18 x 1.5 13 38 32
8091.160082 Short 27 M22 x 1.5 16 46 39
8091.200082 Short 32 M26 x 1.5 20 52 45
8093.040084 Long 14 M10 x 1 4 29 23
8093.0600 Long 17 M12 x 1.5 5 34 28
8093.080084 Long 19 M14 x 1.5 8 38 32
8093.1000 Long 22 M16 x 1.5 10 42 36
8093.130080 Long 24 M18 x 1.5 13 48 42
