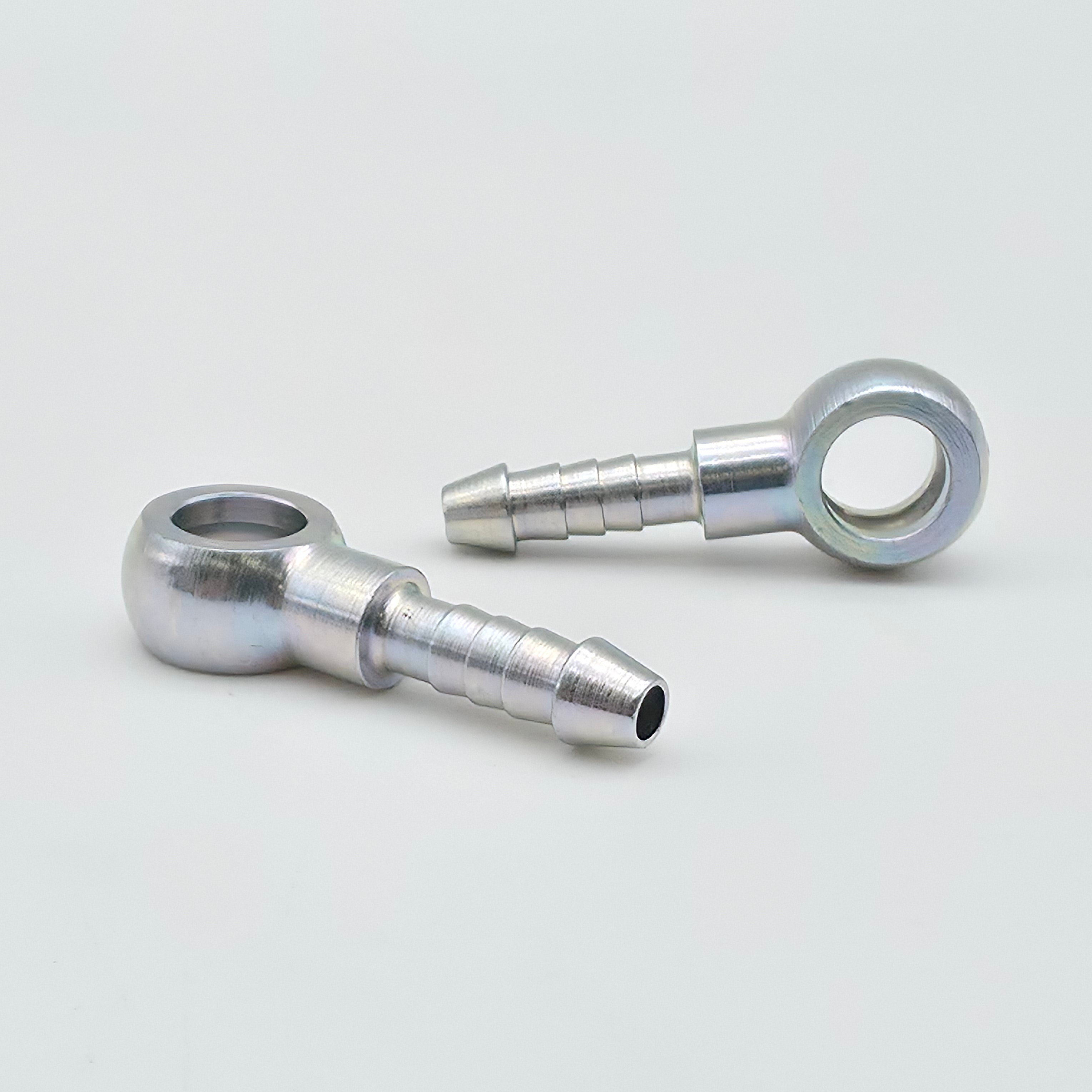

Banjo Hose Nipple

Banjo Hose Nipple

with ring collar according to type B DIN 7642



D (mm)
Ø for hose inside
SKU: 8081.030081
£2.25
In stock

Part Diagram and technical information is shown below

Scroll down

Description

The Cohline portfolio of precision-engineered adapters and fittings provides a reliable and flexible solution for routing fluid transfer lines—including fuel, oil, and coolant—across a wide range of high-performance automotive and motorsport applications. Designed to withstand the extreme demands of elevated pressure, thermal cycling, and high dynamic loads, these components are recognised as a standard in advanced fluid management systems. Each fitting is CNC-machined to ensure optimal mechanical integrity, dimensional stability, and resistance to fatigue and chemical degradation. This level of engineering ensures consistent performance and long service life in the harshest operational environments.

Material

Zinc Plated Steel

DIN Standard

type B DIN 7642 (replacement for DIN 7622)

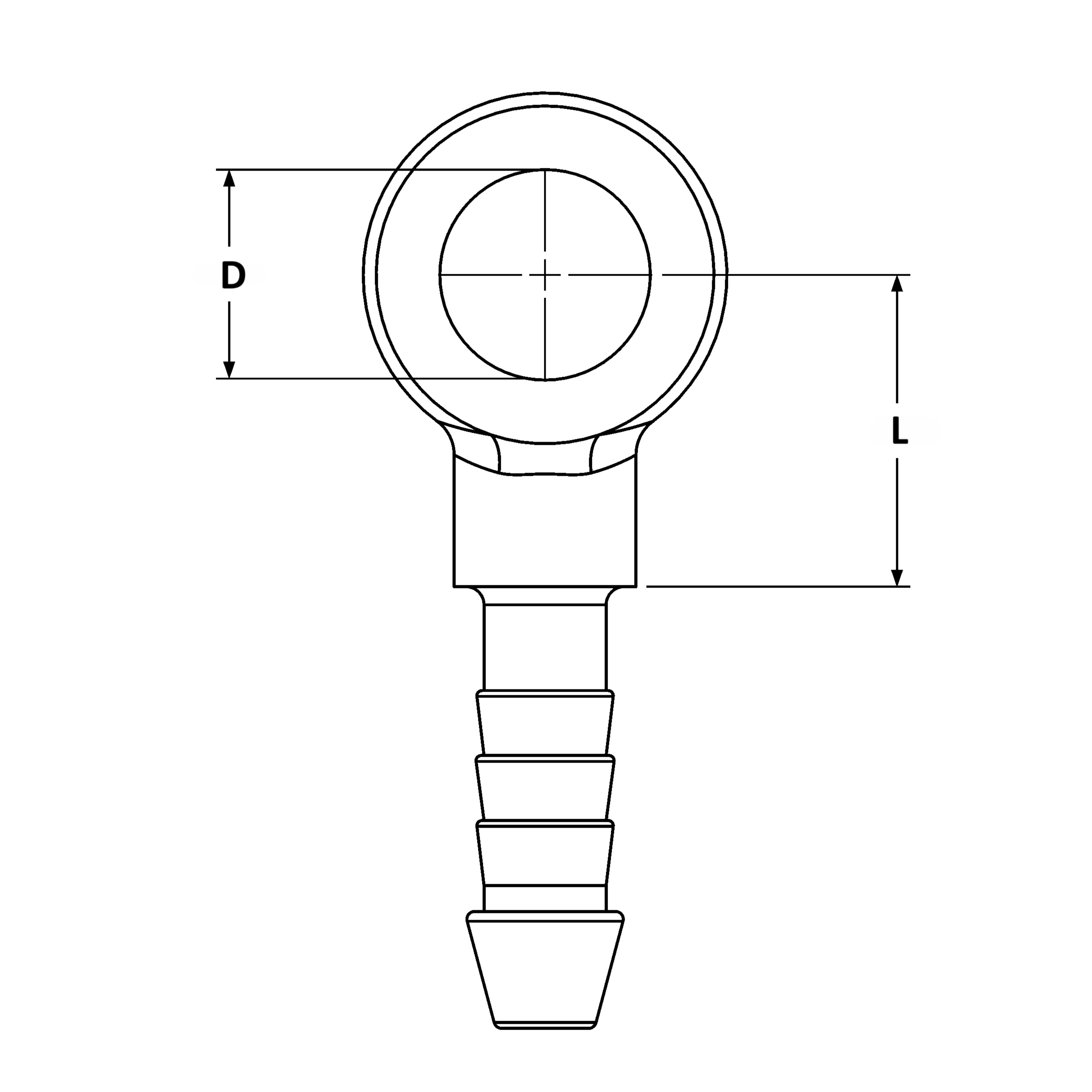

Part Diagram

Product Specification

SKU D (mm) Ø for hose inside  DN L Suitable for banjo bolt
part no. thread
8081.030081 8 4 - 5 3 12 8091.030080 M8 x 1
8081.030481 8 5 - 6 3/4 12 8091.030080 M8 x 1
8081.040081 10 5 - 6 4 13 8091.040080 M10 x 1
8081.040681 10 7 - 8 4/6 13 8091.040080 M10 x 1
8081.060081 12 7 - 8 6 14 8091.19.060082 M12 x 1.5
8081.060481 12 5 - 6 6/4 14 8091.19.060082 M12 x 1.5
8081.060881 12 9 - 10 6/8 14 8091.19.060082 M12 x 1.5
8081.080081 14 9 - 10 / 16 8091.080080 M14 x 1.5
8081.080481 14 5 - 6 8/4 17 8091.080080 M14 x 1.5
8081.080681 14 7 - 8 8/6 16 8091.080080 M14 x 1.5
8081.105181 16 11 - 12 10 18 8091.19.100082 M16 x 1.5
8081.100881 16 9 - 10 10/8 18 8091.19.100082 M16 x 1.5
8081.130081 18 14 - 15 13 21 8091.19.130082 M18 x 1.5
8081.130881 18 9 - 10 13/8 24 8091.19.130082 M18 x 1.5
8081.131081 18 11 - 12 13/10 21 8091.19.130082 M18 x 1.5
8081.1600 22 17 - 18 16 27 8091.160082 M22 x 1.5
8081.2000 26 21 - 22  20 32 8091.200082 M26 x 1.5
8086.0600 12.8 7 - 8 6 14 8095.060081 1/2" - 20 UNF
