Bio-Diesel Fuel Hose | Low permeation 2240.50

Bio-Diesel Fuel Hose | Low permeation 2240.50

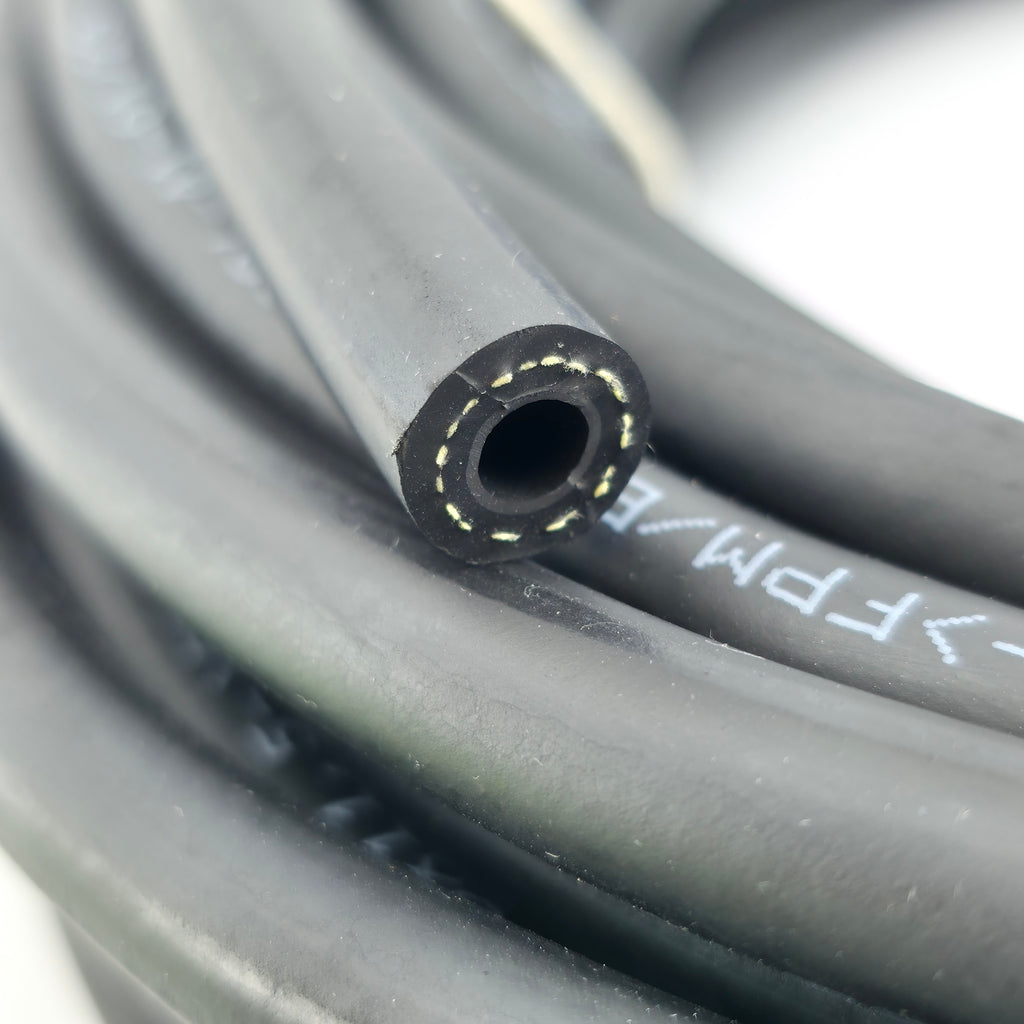

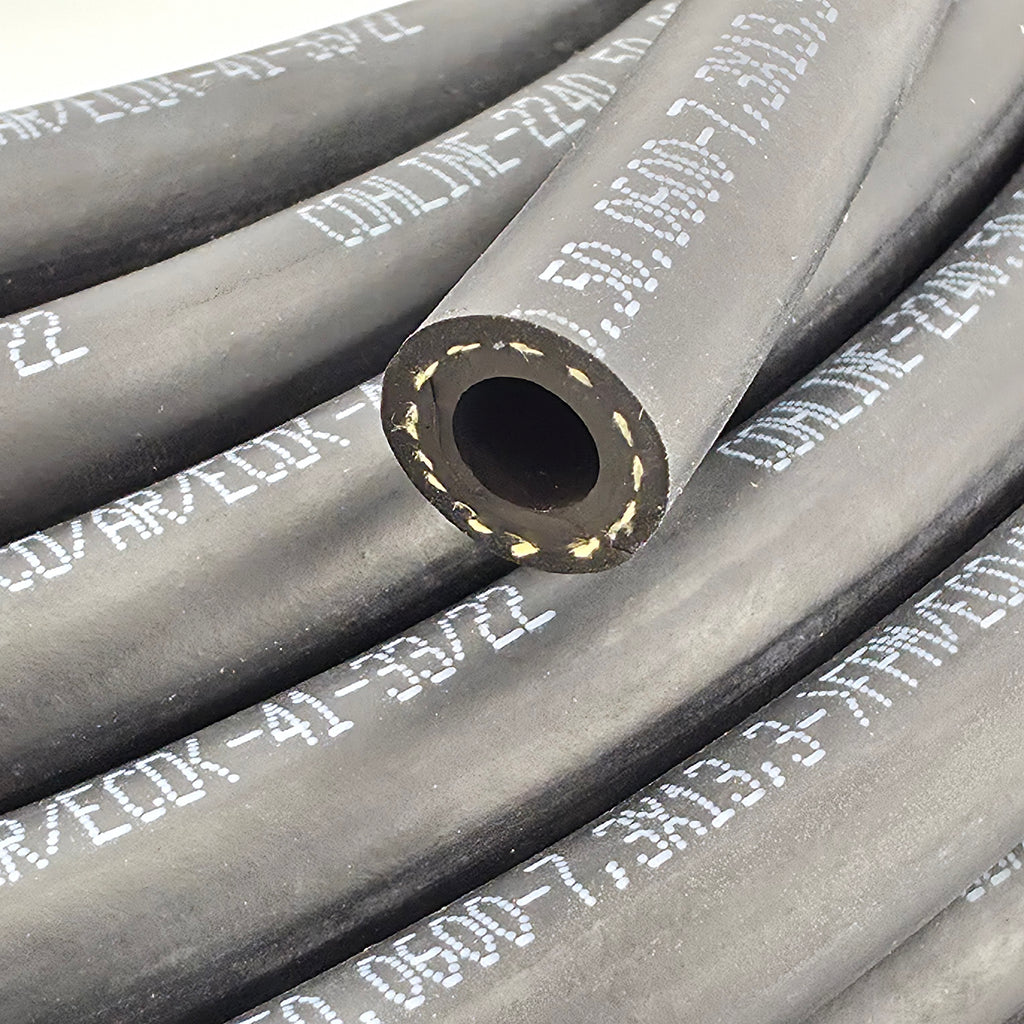

ECO rubber hose with internal aramid braided fibres with FPM inner

External & Internal Diameter (mm)
SKU: 2240.50.0400
£13.20
20 left

Part Diagram and technical information is shown below

The maximum length available in one piece is 20m. We will always try to supply hoses in one complete length. Select Quantity of the hose length in meters needed.


Please note that only complete rolls can be returned, pieces cut from the roll cannot be returned for credit, Please ensure that you select the correct hose and length.

Scroll down

Description

Cohline's high-specification range of braided hose assemblies is engineered to meet the rigorous demands of modern automotive systems. The multi-layer construction—available in both synthetic rubber and PTFE-lined configurations—offers excellent chemical resistance, high-pressure tolerance, and thermal stability. These hoses are suitable for a wide range of critical fluid transfer applications, including fuel, coolant, and lubricating oil systems. A full complement of precision-machined fittings is available to ensure optimal integration across vehicle platforms. Extensively validated in our internal test programs and field applications, Cohline hoses have been specified by leading OEMs for long-term, high-reliability use in production and development environments.

Suitable for commercially available fuels (including ethanol) and bio-diesel consisting of Rape oil methyl ester (RME-fuels), and E 10 fuel too, from - 40°C to + 125°C
up to + 150°C for short periods

Technical Specifications
Material
FPM and ECO rubber hose with internal aramid braiding
DIN Standard
DIN 73379-B1 (status 07/14)
Temperature Range
From - 40°C to + 125°C

Specification

Hose Diagram

Part Number  D (mm)
external diameter
internal Diameter, d (mm) DN (NW) smallest bending radius (mm) Working Pressure (bar) bursting pressure (bar) testing pressure (bar)
± 0.6
± 0.8*
±0.4
± 0.6 *
±0.8**
2240.50.0209 9.2 3.2 2 30 10 50 10
2240.50.0400 11.5 5.5 4 55 10 50 10
2240.50.0600 13.3 7.3 6 60 10 50 10
2240.50.0800 15.3 9.3 8 70 10 50 10
2240.50.1019 18.5* 11.5* 10 80 10 50 10
2240.50.1322 22.0* 14.0** 13 100 8 40 10
