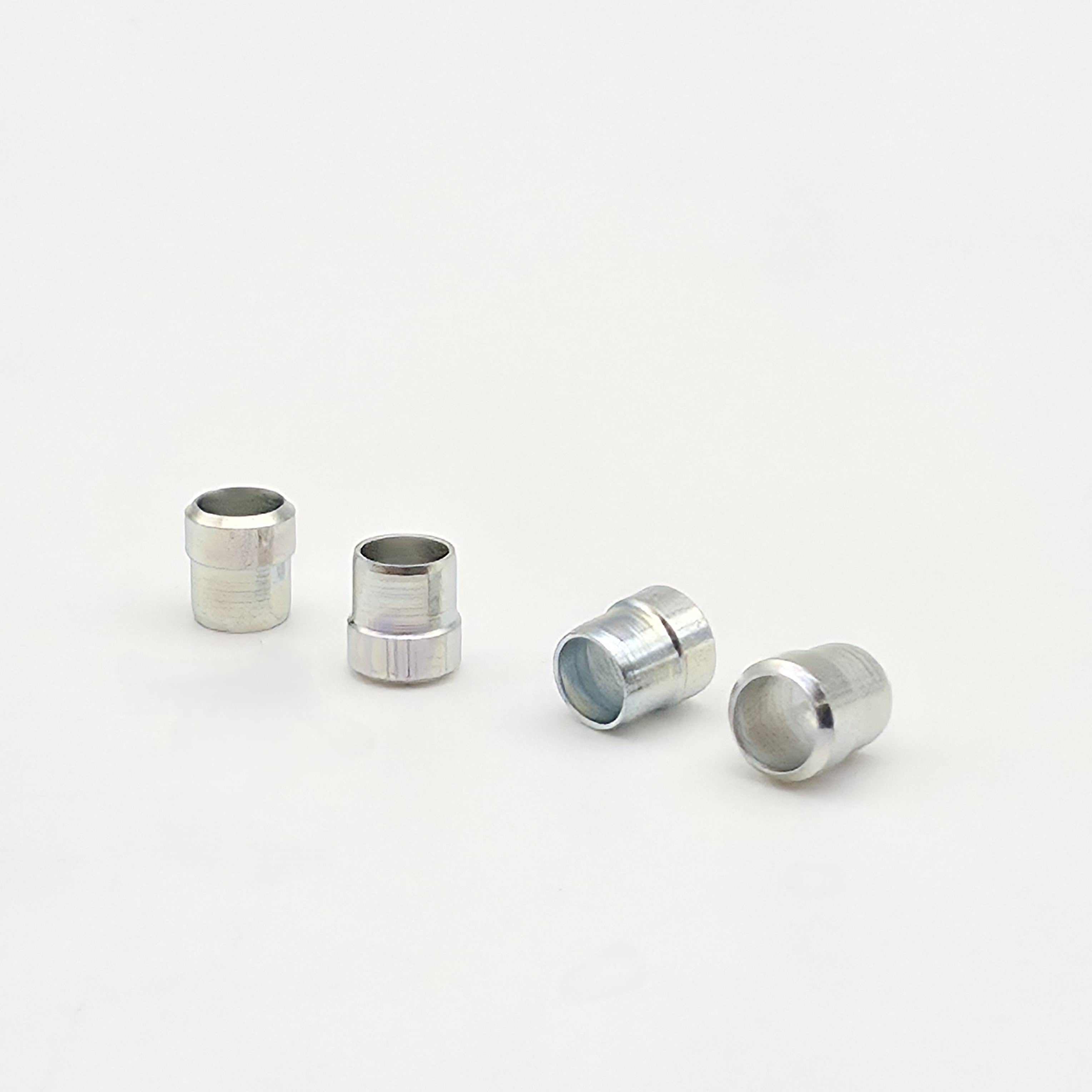

Cut Ring | Light & Heavy Type

Cut Ring | Light & Heavy Type

Type
Internal Diameter
External Diameter (mm)
SKU: 9101.0204
£0.60
In stock

Part Diagram and technical information is shown below

Scroll down

Description

The Cohline portfolio of precision-engineered adapters and fittings provides a reliable and flexible solution for routing fluid transfer lines—including fuel, oil, and coolant—across a wide range of high-performance automotive and motorsport applications. Designed to withstand the extreme demands of elevated pressure, thermal cycling, and high dynamic loads, these components are recognised as a standard in advanced fluid management systems. Each fitting is CNC-machined to ensure optimal mechanical integrity, dimensional stability, and resistance to fatigue and chemical degradation. This level of engineering ensures consistent performance and long service life in the harshest operational environments.

Material

Zinc Plated Steel

DIN Standard

DIN 3861

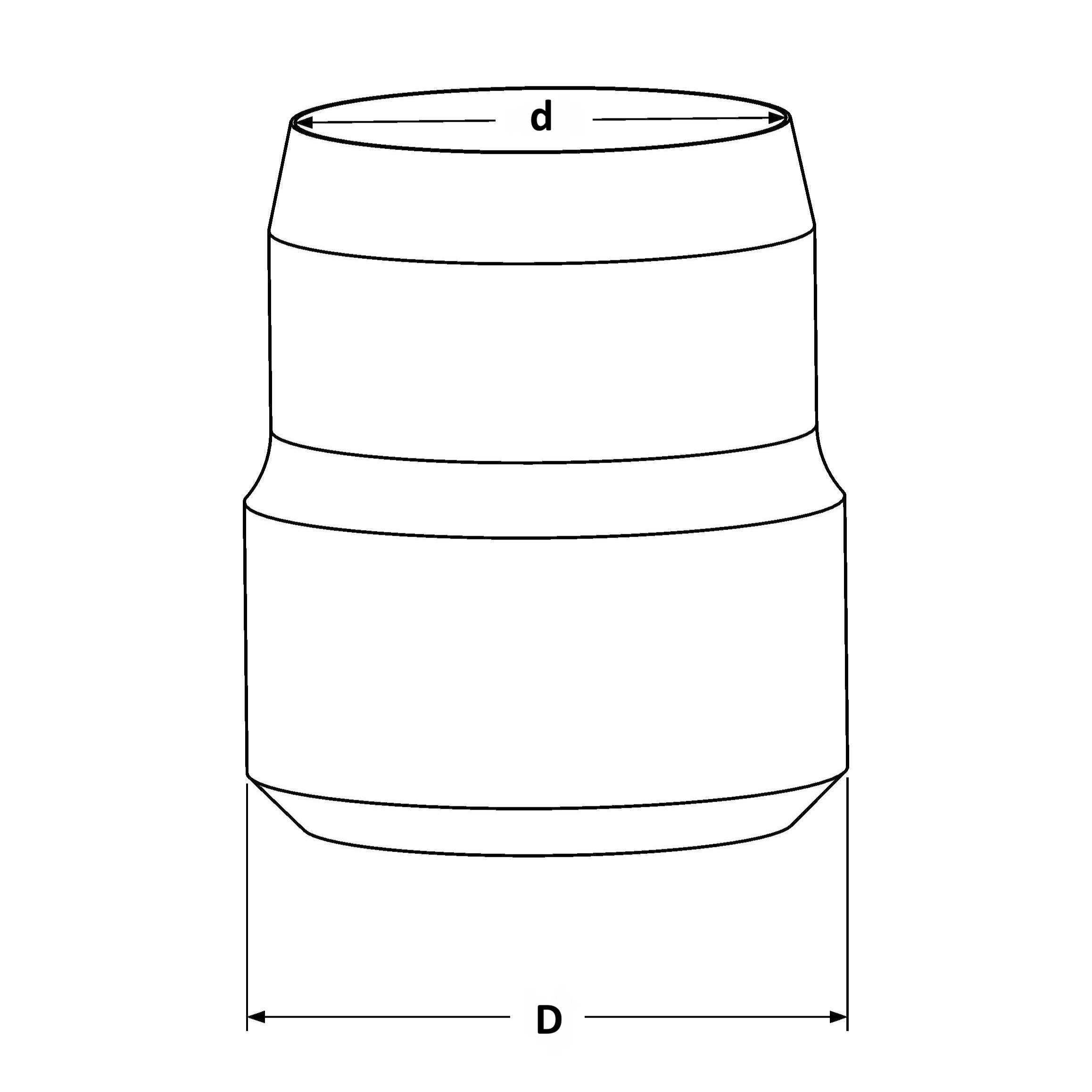

Part Diagram

Product Specification

Part SKU

External Diameter,

D

Internal Diameter,

d

DN (NW)
9101.0204 5.5 4 2
9101.0305 7 5 3
9101.0306 8 6 3
9101.0406 9 6 4
9101.0508 10 8 5
9101.0608 11 8 6
9101.0810 13 10 8
9103.1012* 15 12 10
9101.1315 18 15 13
9101.1316   16 13
9101.1618 21 18 16
9101.2022 25 22 20
9101.2528   28 25
9102,1014 17 14 10
9102,1316 19 16 13
9102,1620 24 20 16
9102,2025 29 25 20
9102,2530 35 30 25
9102,3238 44 38 32

* 9103.1012 according to DIN 3861, type b with 2 edges
