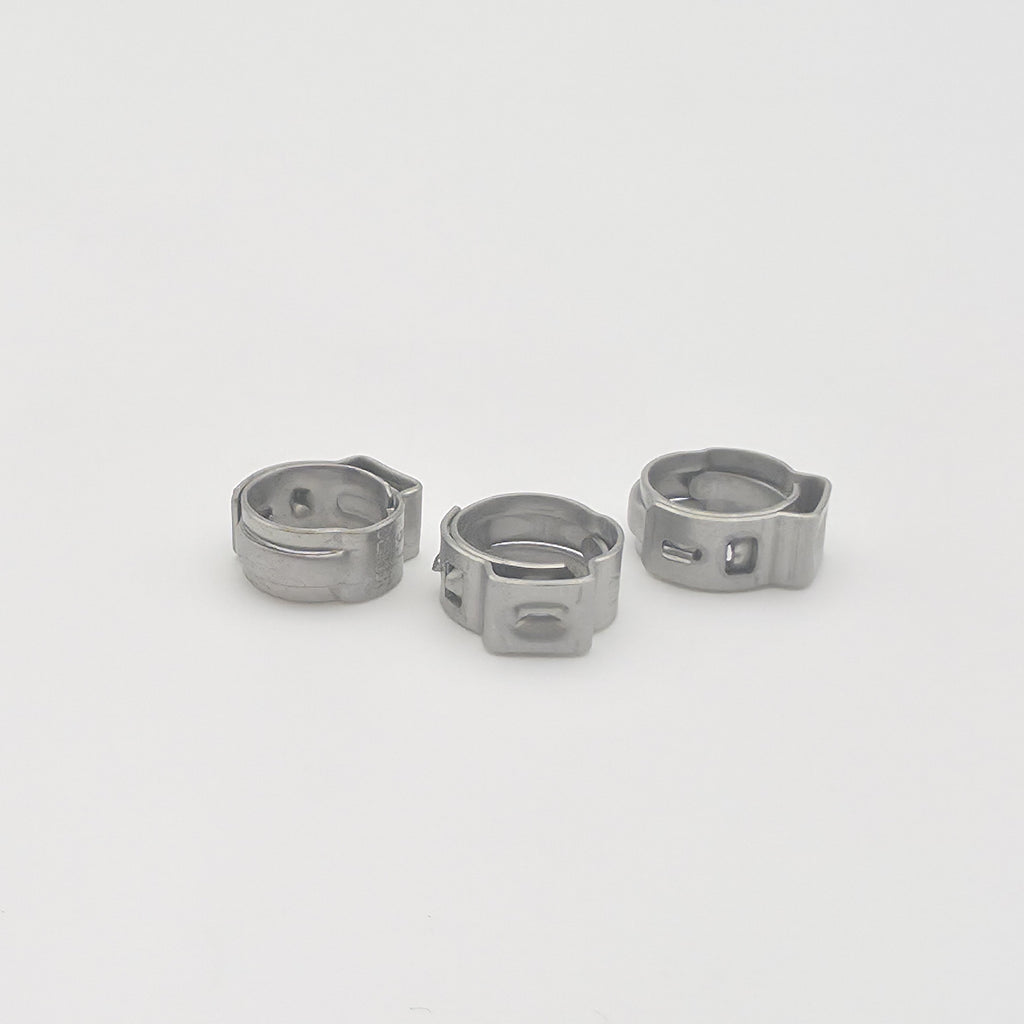

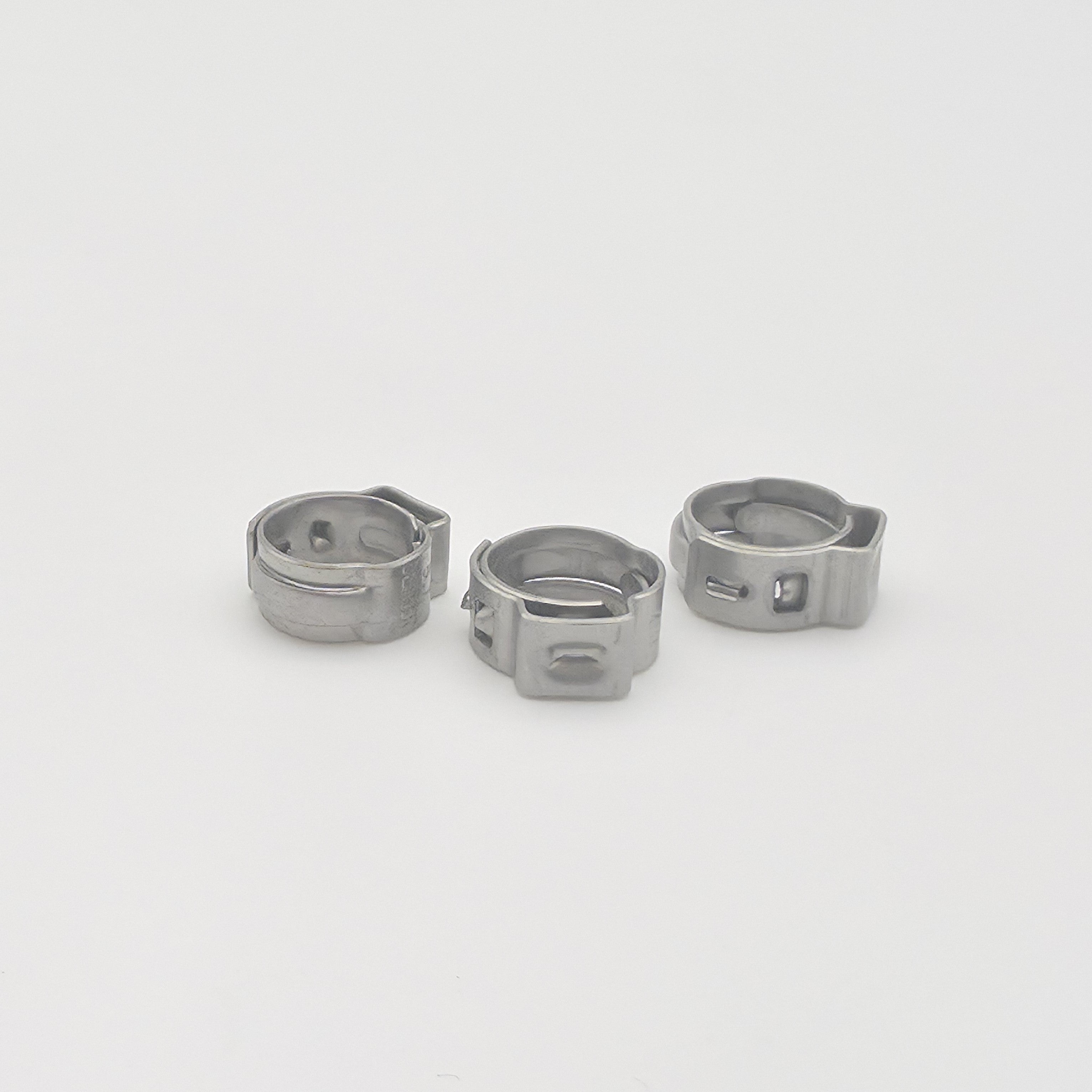

Ear Clamp

Ear Clamp

Ear clamp with suspension hook

Size (mm)
SKU: 8006.01.0870
£1.50
In stock

Technical information is shown below

Scroll down

Description


The Cohline portfolio of precision-engineered adapters and fittings provides a reliable and flexible solution for routing fluid transfer lines—including fuel, oil, and coolant—across a wide range of high-performance automotive and motorsport applications. Designed to withstand the extreme demands of elevated pressure, thermal cycling, and high dynamic loads, these components are recognised as a standard in advanced fluid management systems. Each fitting is CNC-machined to ensure optimal mechanical integrity, dimensional stability, and resistance to fatigue and chemical degradation. This level of engineering ensures consistent performance and long service life in the harshest operational environments.

The clamping force is transmitted in a concentrated manner thanks to the narrow band. 360° stepless,
This results in uniform compression or surface pressure.
The clamping tube can be used to compensate for component tolerances. The surface pressure is adjustable. The bead reinforces the clamping force on the one hand and on the other, temperature-dependent diameter changes are cushioned. The belt edges have a special shape and thus reduce the risk of damage to the hose metre goods.

Material

Stainless Steel 1.4301

Product Technical Information

SKU Size (mm) Band - thickness (mm)
8006.01.0870 7.0 -8.7 5
8006.01.1050 8.8 -10.5 5
8006.01.1130 9.6 -11.3 5
8006.01.1330 10.8 -13.3 7
8006.01.1480 12.3 - 14.8  7
8006.01.1570 13.2-15.7 7
8006.01.1620 13.7-16.2 7
8006.01.1750 15.0 -17.5 7
8006.01.1800 14.8 -18.0 7
8006.01.1850 15.3 - 18.5 7
8006.01.1980 16.6-19.8 7
8006.01.2100 17.8 -21.0 7
8006.01.2410 20.9 -24.1 7
8006.01.2560 22.4 -25.6 7
8006.01.2710 23.9 - 27.1 7
8006.01.3310 29.9 - 33.1 7
