Threaded Brake Line Fittings | DIN ISO Bubble Flare

Threaded Brake Line Fittings | DIN ISO Bubble Flare

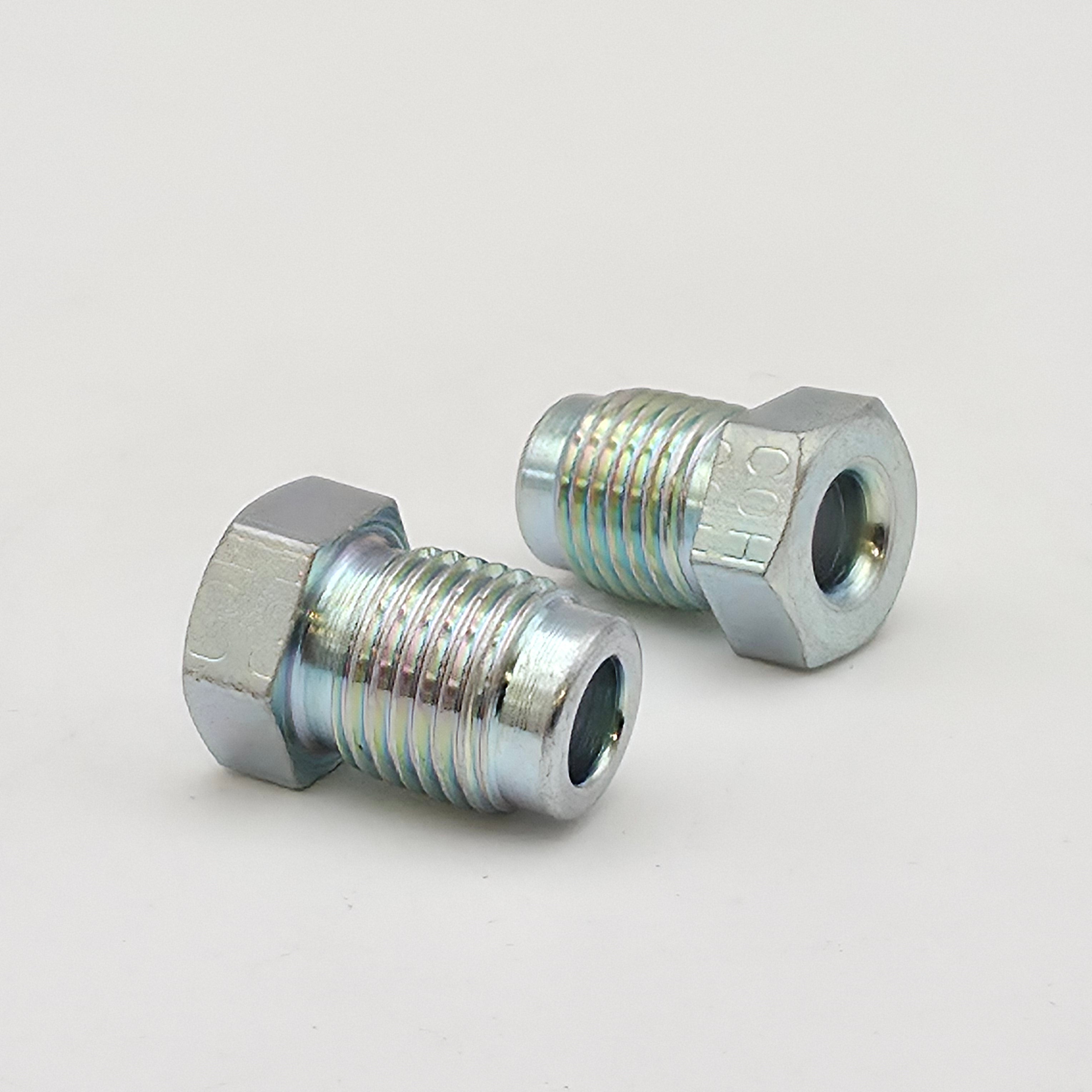

Male Screw Fittings for Brake Tube Lines

Fitting Type
Thread
Suitable Tube External Diameter, d (mm)
SKU: 9371.0300
£0.70
In stock

Part Diagram and technical information is shown below

Scroll down

Description

The Cohline portfolio of precision-engineered adapters and fittings provides a reliable and flexible solution for routing fluid transfer lines—including fuel, oil, and coolant—across a wide range of high-performance automotive and motorsport applications. Designed to withstand the extreme demands of elevated pressure, thermal cycling, and high dynamic loads, these components are recognised as a standard in advanced fluid management systems. Each fitting is CNC-machined to ensure optimal mechanical integrity, dimensional stability, and resistance to fatigue and chemical degradation. This level of engineering ensures consistent performance and long service life in the harshest operational environments.

Material

Zinc Plated Steel

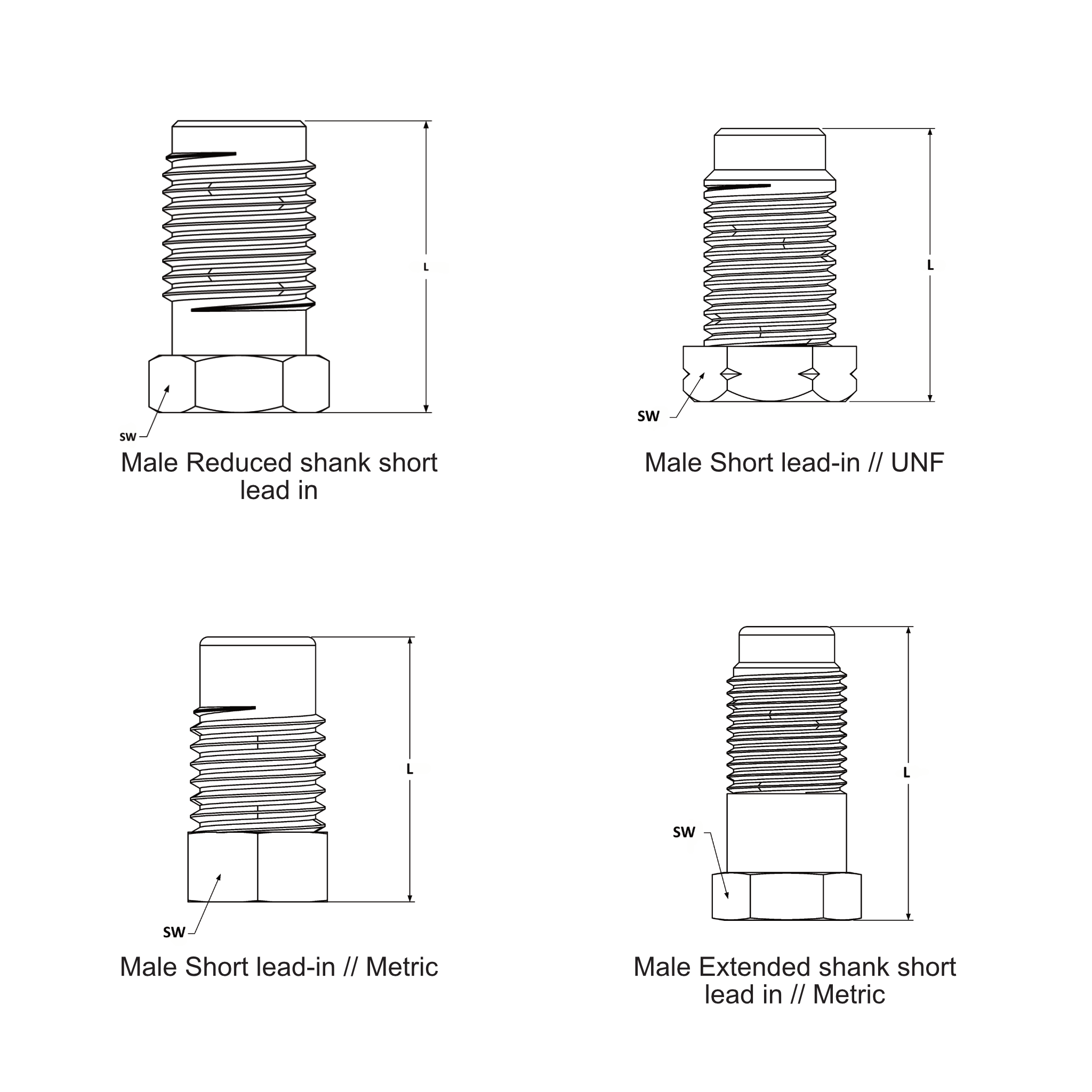

Part Diagram

Product Specification

SKU Thread SW (mm) L (mm) Suitable for Thread Type figure type
tube (mm) flare type
9371.0300 M10 x 1 11 16.0 4.75 F male thread 2
9371.0305 M10 x 1 11 16.0 5.00 F male thread 2
9371.0400 M12 x 1 13 20.0 6.00 F male thread 2
9371.0403 M12 x 1 13 20.0 4.75 F male thread 2
9371.0600 M14 x 1.5 14 25.5 8.00 F male thread 2
9371.0651 M14 x 1 14 16.5 8.00 F male thread 2
9371.0800 M16 x 1.5 17 26.5 10.00 F male thread 2
9373.0300 3/8" - 24 UNF 11 20.0 4.75 F Male thread  5
9399.0204 M10 x 1.25 10 19.0 4.75 F Male Thread 7
9399.0218 7/16" -20 UNF 11 21.0 4.75 F Male Thread 2
9399.0224 M10 x 1 11 24.5 4.75 F Male Thread 8
