Fuel Hose | Mid-permeation

Fuel Hose | Mid-permeation

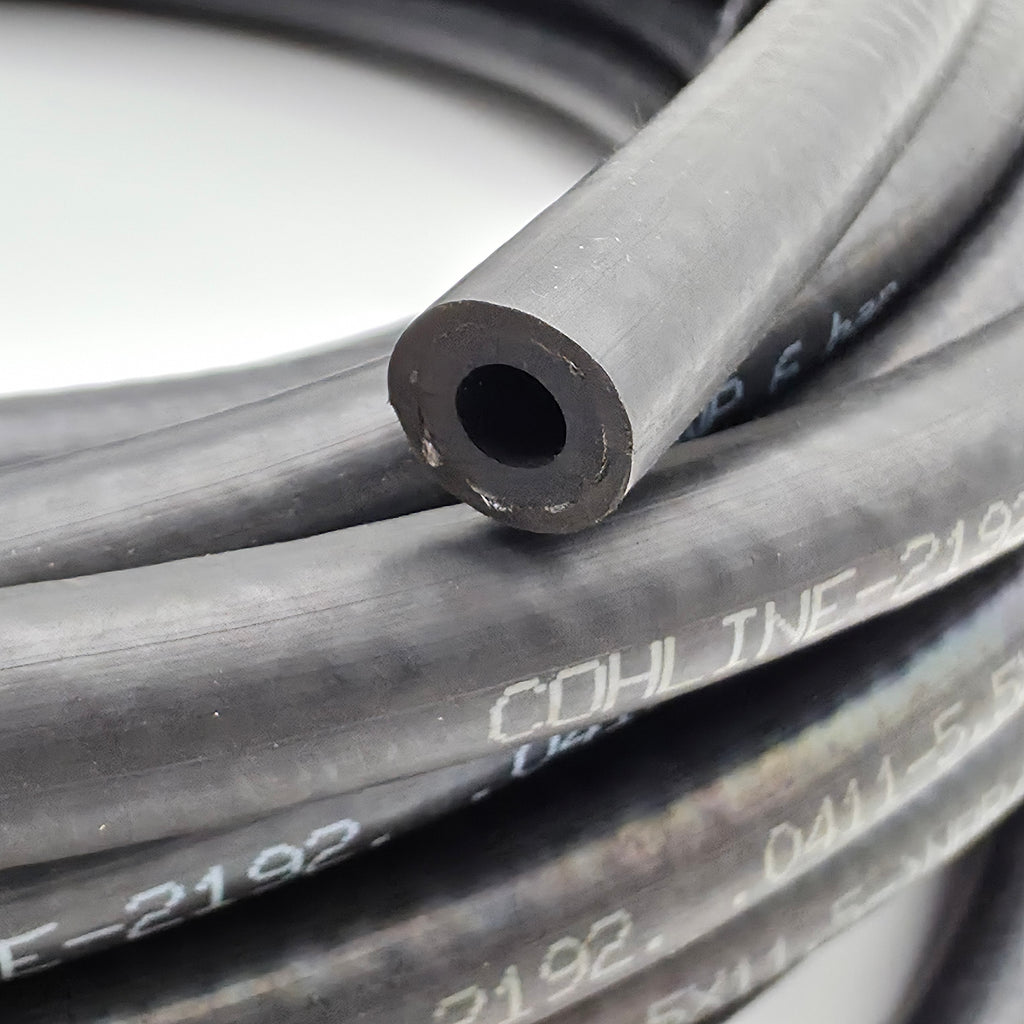

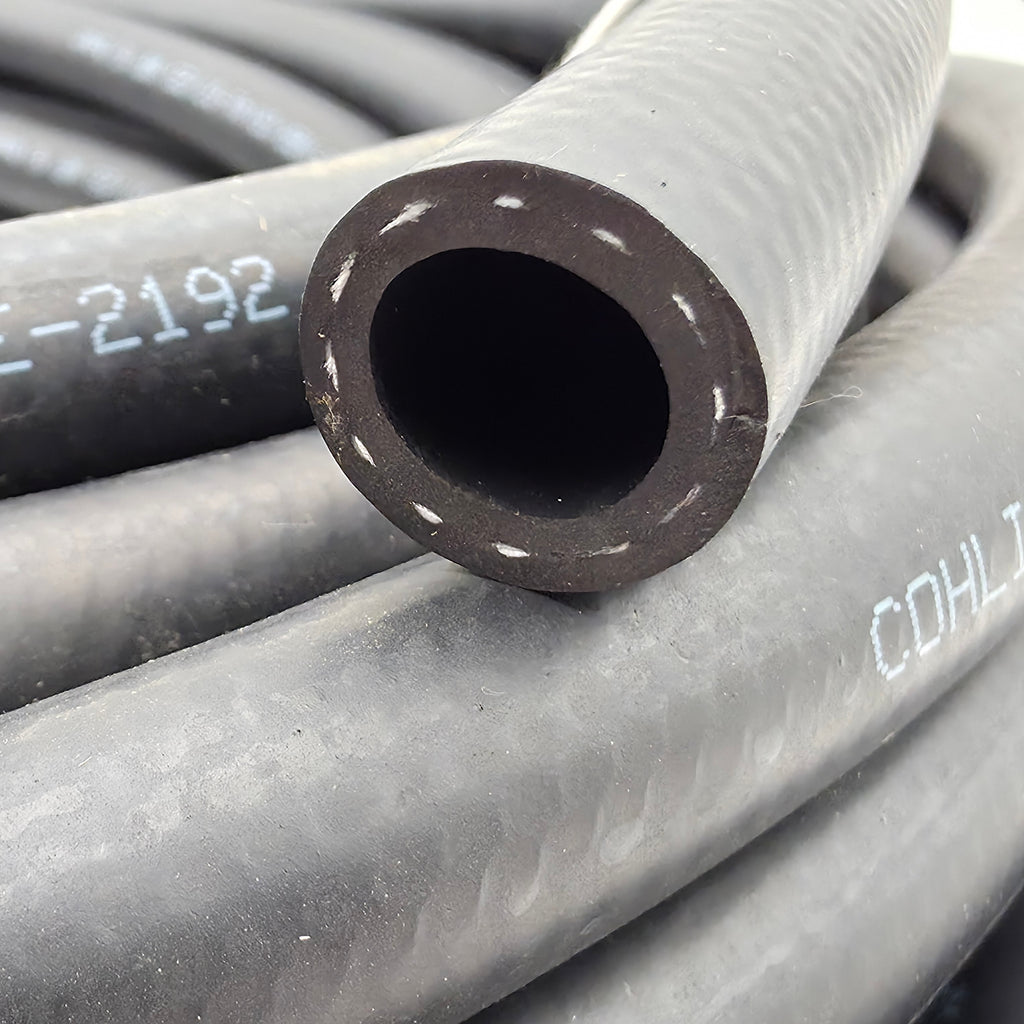

NBR hose with textile internal polyester braiding and CR rubber outer

External Diameter (± 0.6) & Internal Diameter (± 0.3)

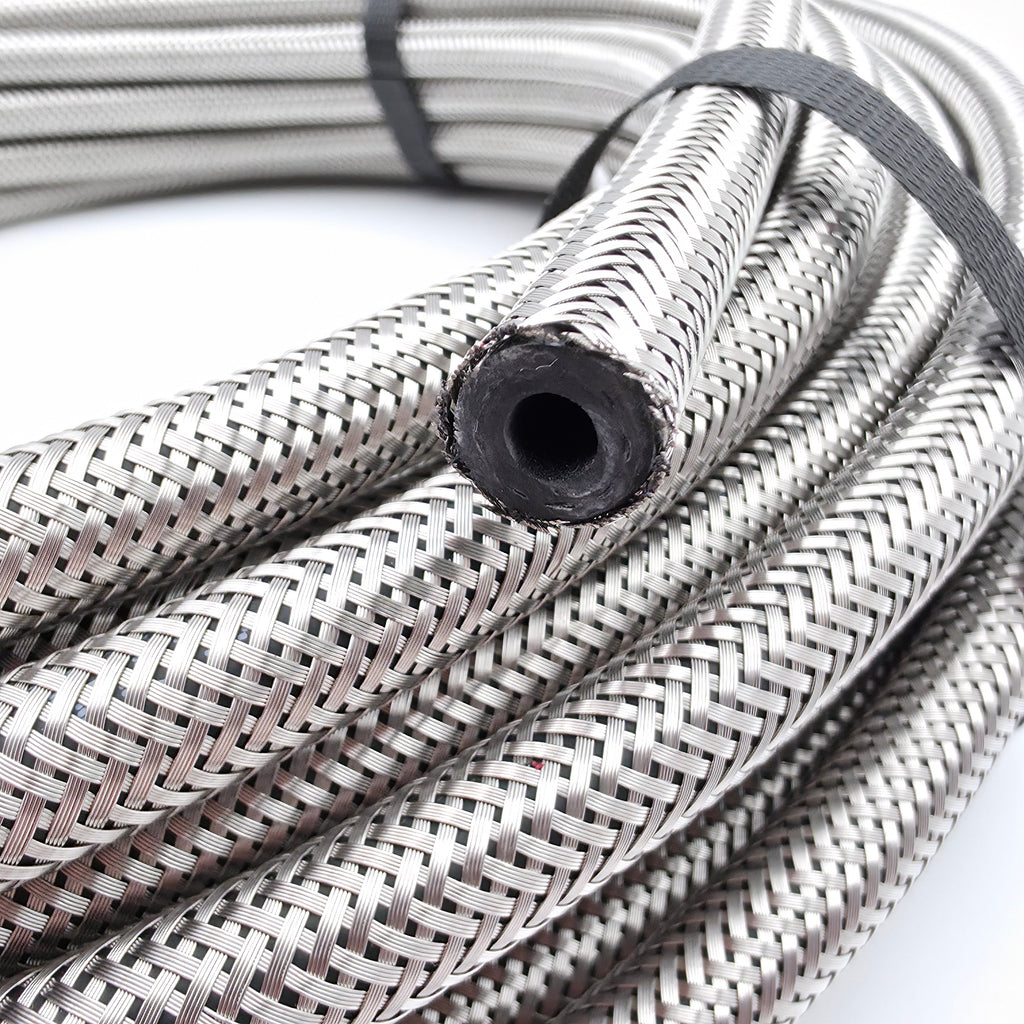

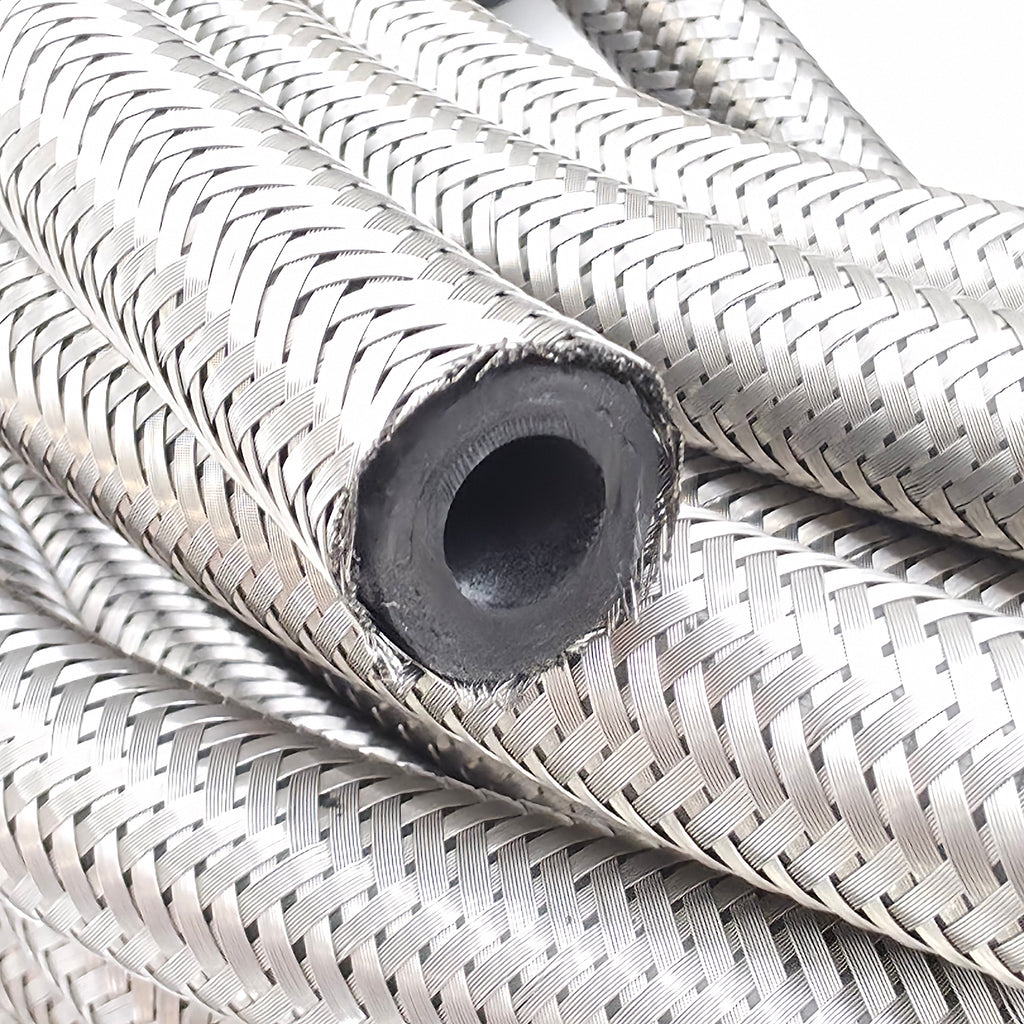

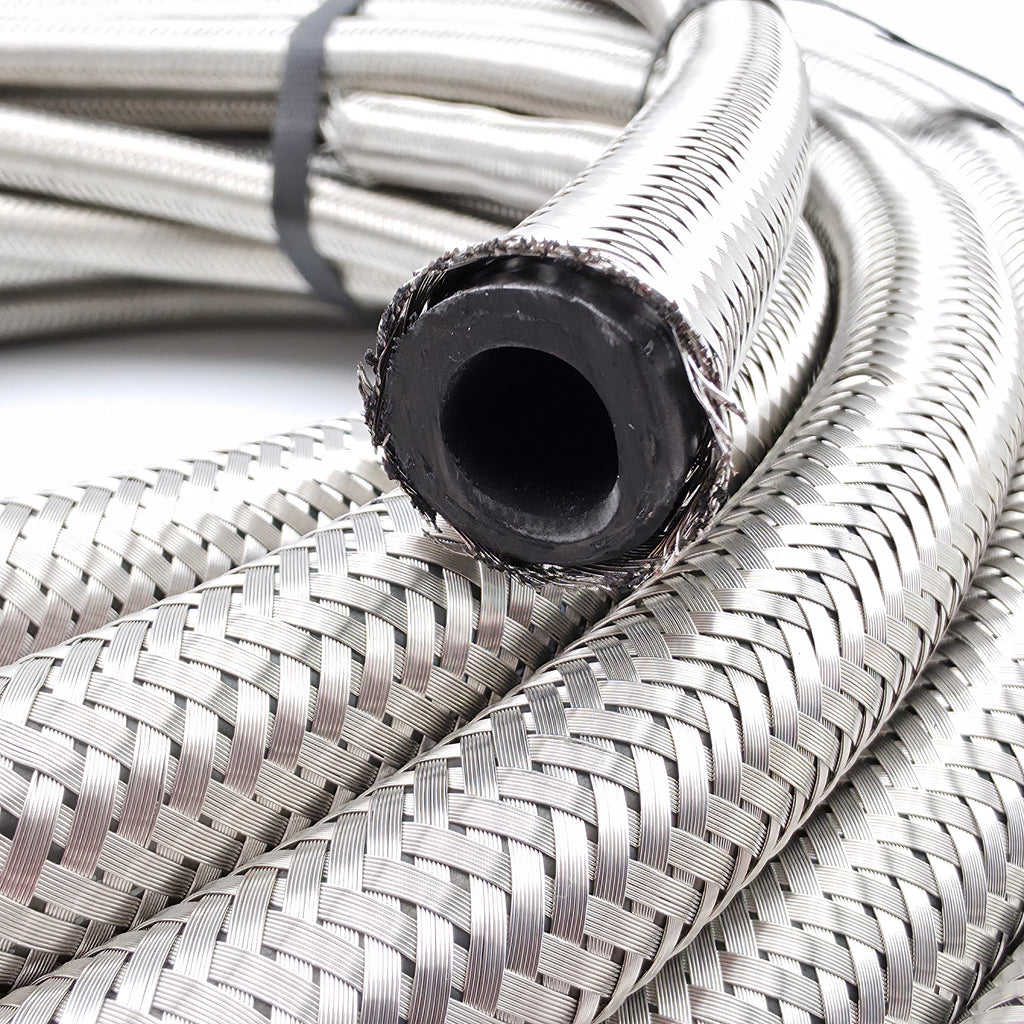

Over braid
SKU: 2192.0209
£2.90
In stock

Part Diagram and technical information is shown below

The maximum length available in one piece is 20m. We will always try to supply hoses in one complete length. Select Quantity of the hose length in meters needed.


Please note that only complete rolls can be returned, pieces cut from the roll cannot be returned for credit, Please ensure that you select the correct hose and length.

Scroll down

Description

Cohline's high-specification range of braided hose assemblies is engineered to meet the rigorous demands of modern automotive systems. The multi-layer construction—available in both synthetic rubber and PTFE-lined configurations—offers excellent chemical resistance, high-pressure tolerance, and thermal stability. These hoses are suitable for a wide range of critical fluid transfer applications, including fuel, coolant, and lubricating oil systems. A full complement of precision-machined fittings is available to ensure optimal integration across vehicle platforms. Extensively validated in our internal test programs and field applications, Cohline hoses have been specified by leading OEMs for long-term, high-reliability use in production and development environments.

Temperature Application:
-Commercial fuels, especially super grade fuels up to a maximum of 50% benzol, hose is suitable for E10 petrol: 30°C to +50°C
-Water, air, heating oil: -30°C to +90°C
-Diesel fuels (gas oil) with RME additive (rapeseed oil methyl ester) : -30°C to +70°C
-up to 110°C for short periods

Technical Specifications
Material
NBR hose with internal polyester braiding with CR outer
DIN Standard
73379-2a (11/’97)
Temperature Range
Varies regarding application

Specification

Hose Diagram

Part Number

External Diameter

D (mm) ± 0.6

Internal Diameter

d (mm) ± 0.3

DN

(NW)

Smallest Bending Radius

(mm)

Working Pressure

(bar)

Bursting Pressure

(bar)

Testing Pressure

(bar)

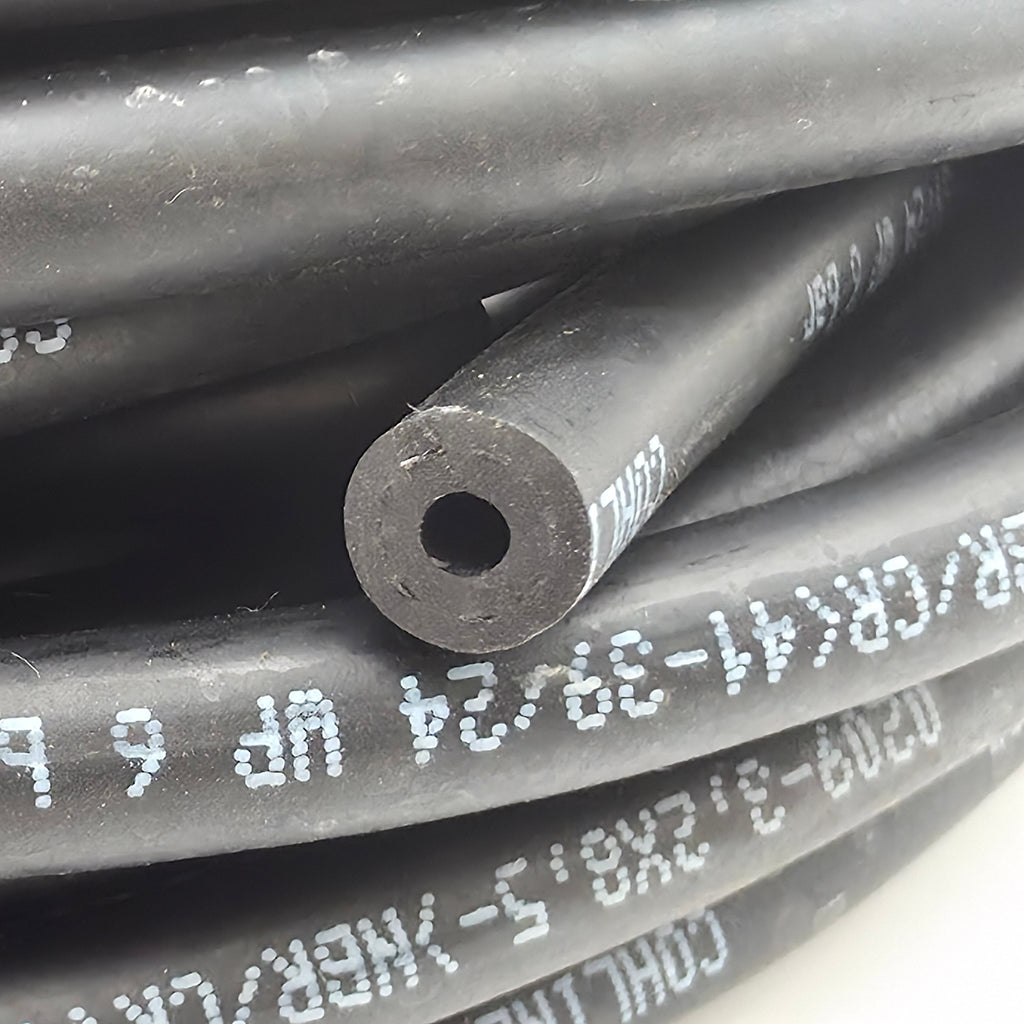

2192.0209 8.5 3.2 2 45 6 30 20

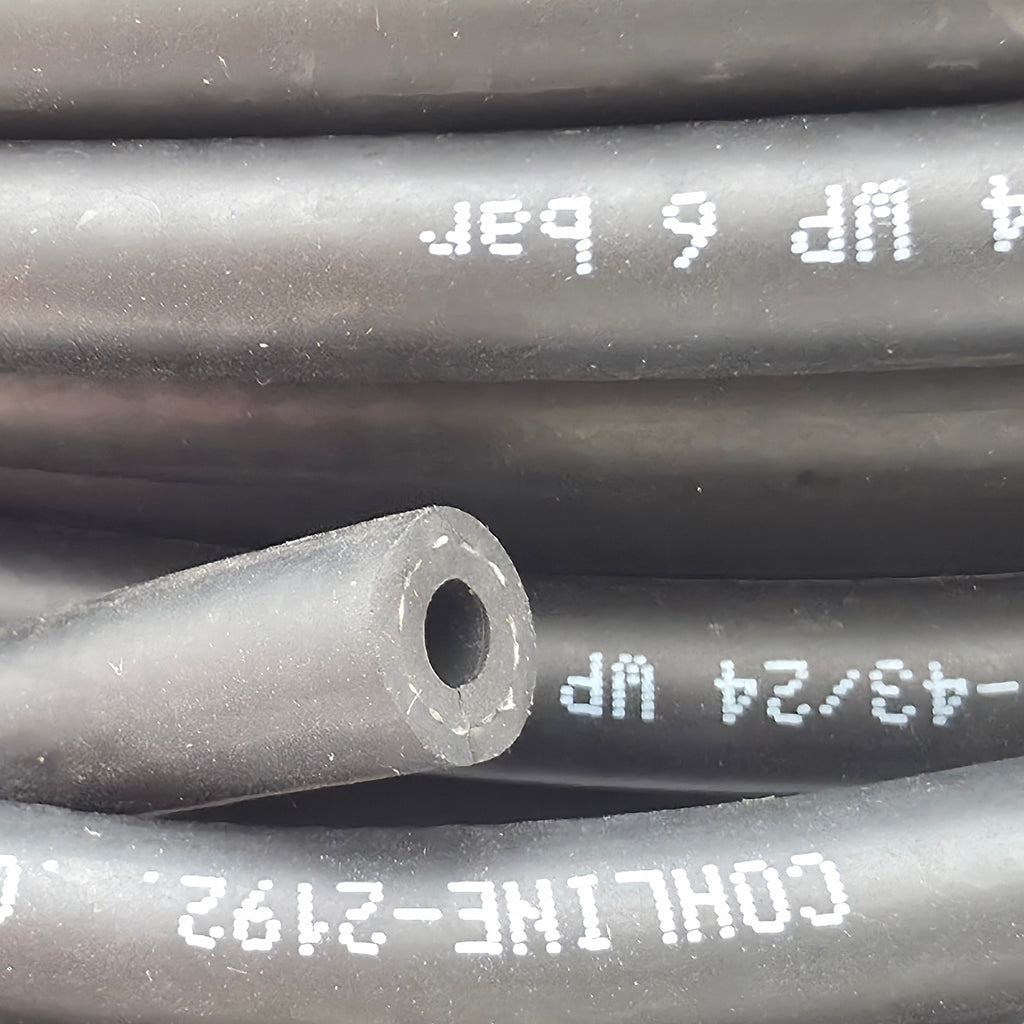

2192.0310 10.5 4.5 3 50 6 30 20

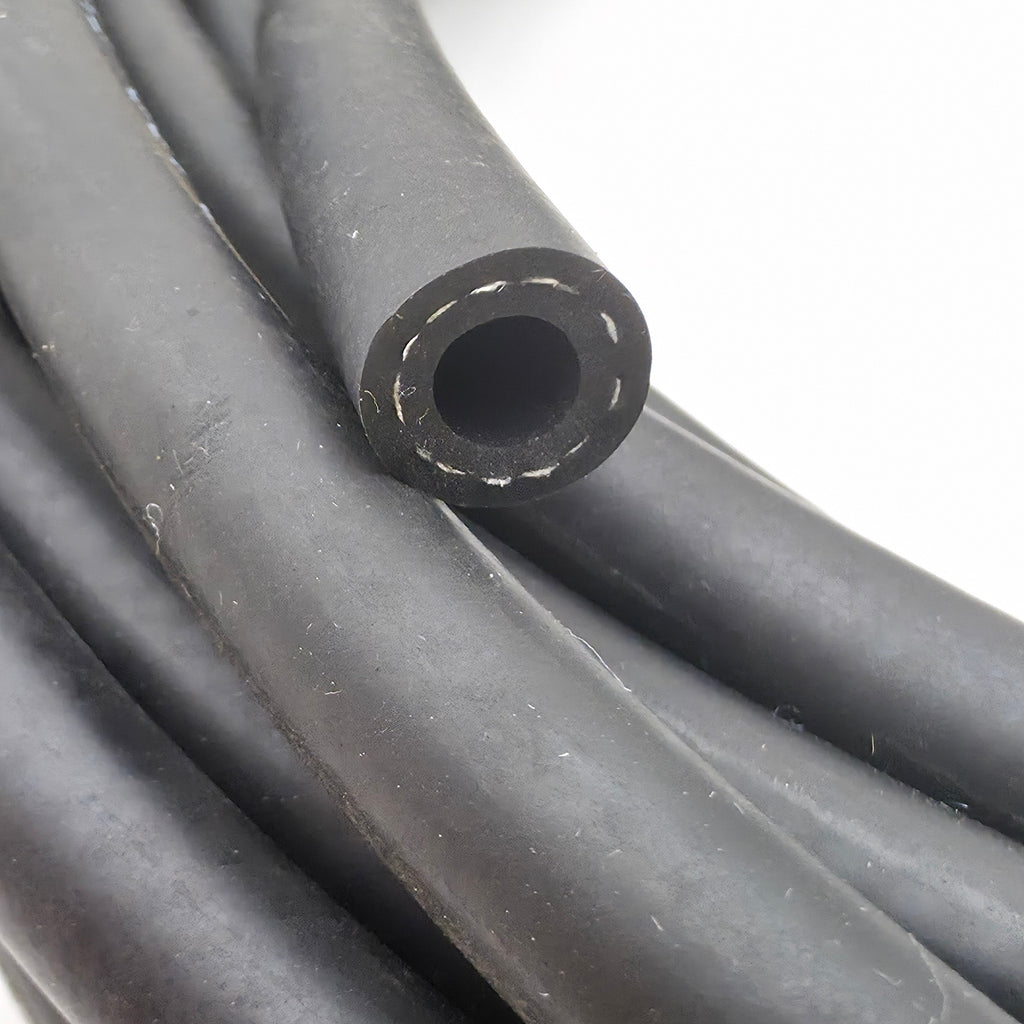

2192.0400 12.0 6.0 4 60 6 30 20

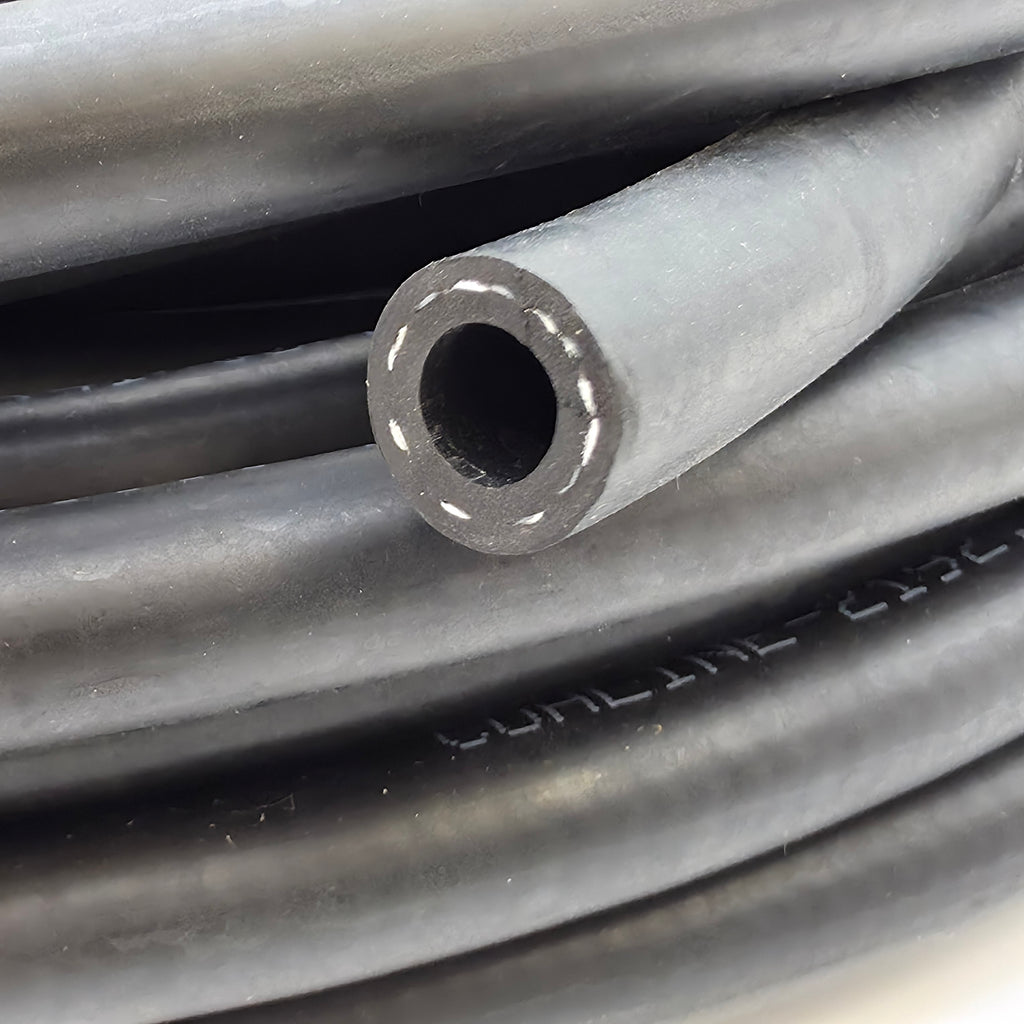

2192.0600 13.5 7.5 6 70 6 30 20

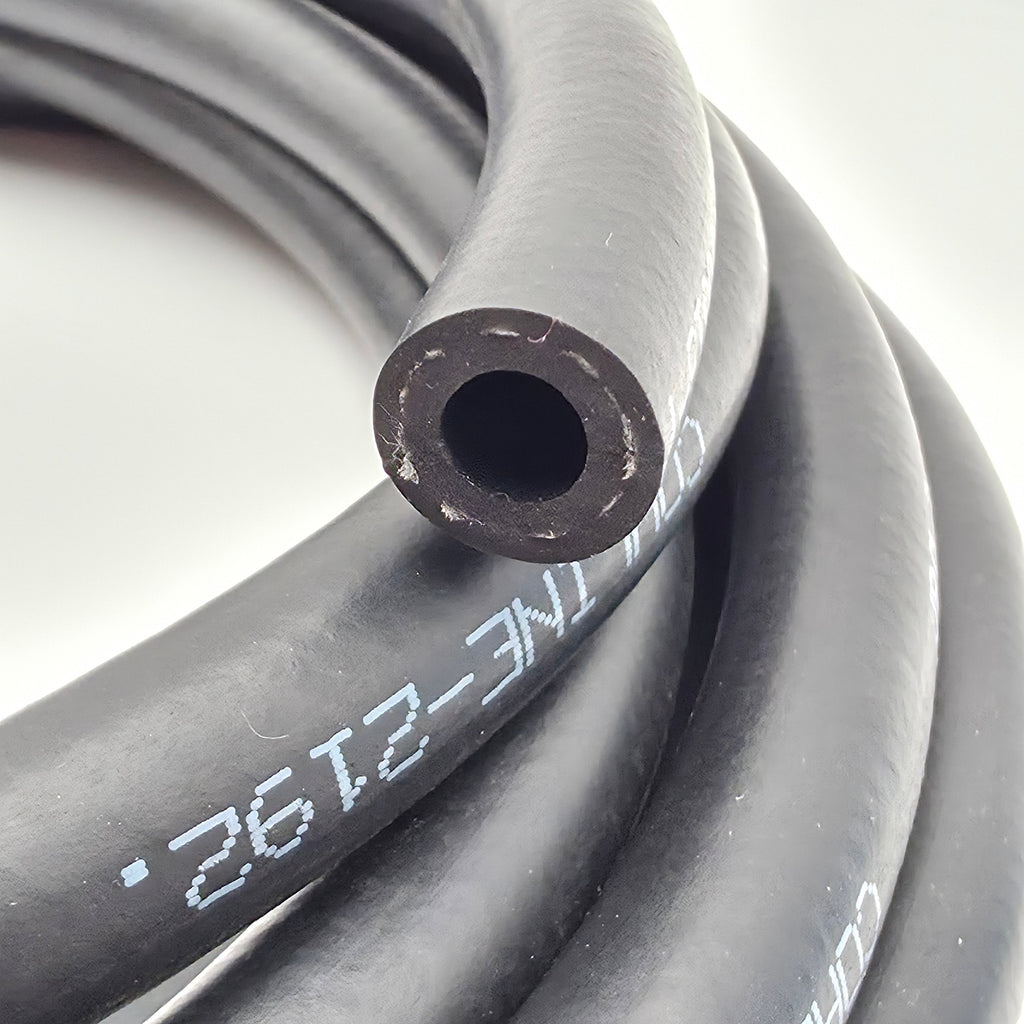

2192.0613 13.0 7.0 6 70 6 30 20

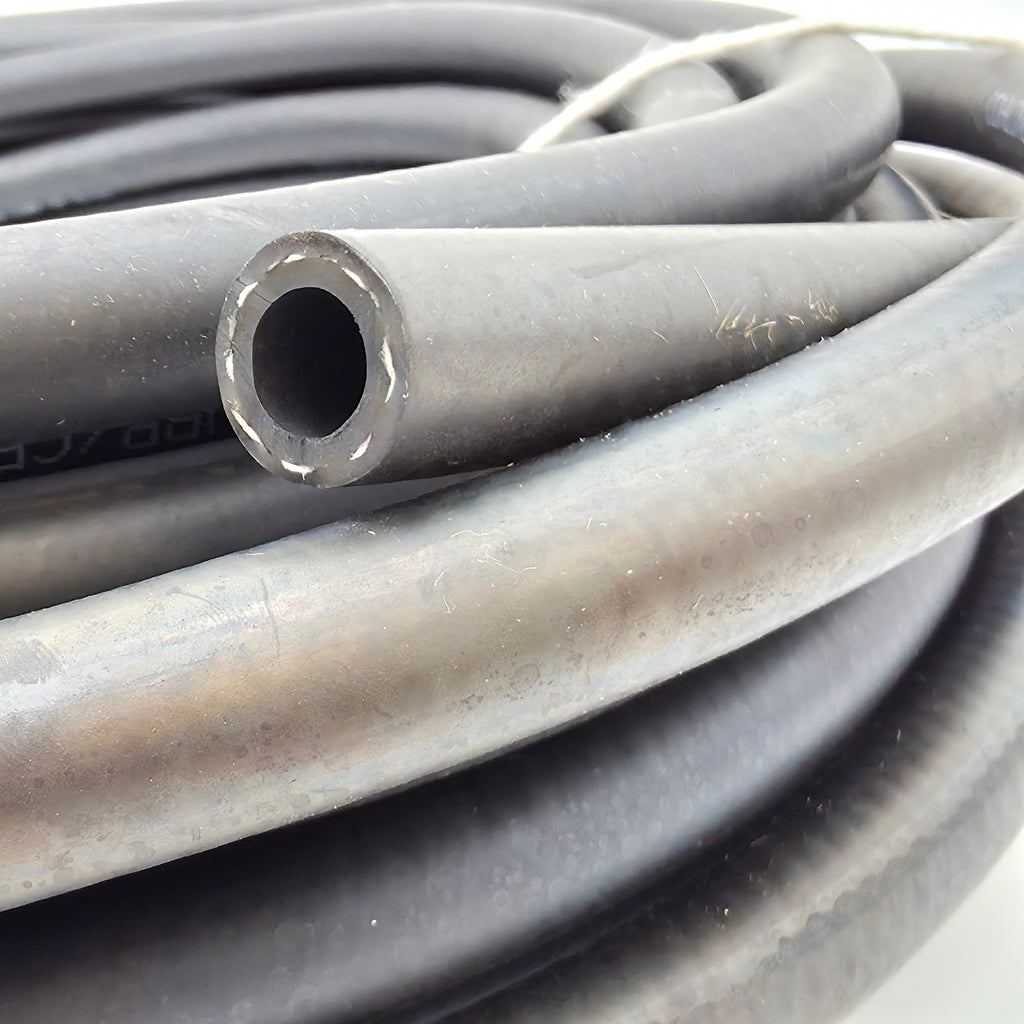

2192.0800 15.5 9.5 8 80 6 30 20
2192.1000 19.0 12.0 10 80 6 30 20
