High Temperature Oil Hose

High Temperature Oil Hose

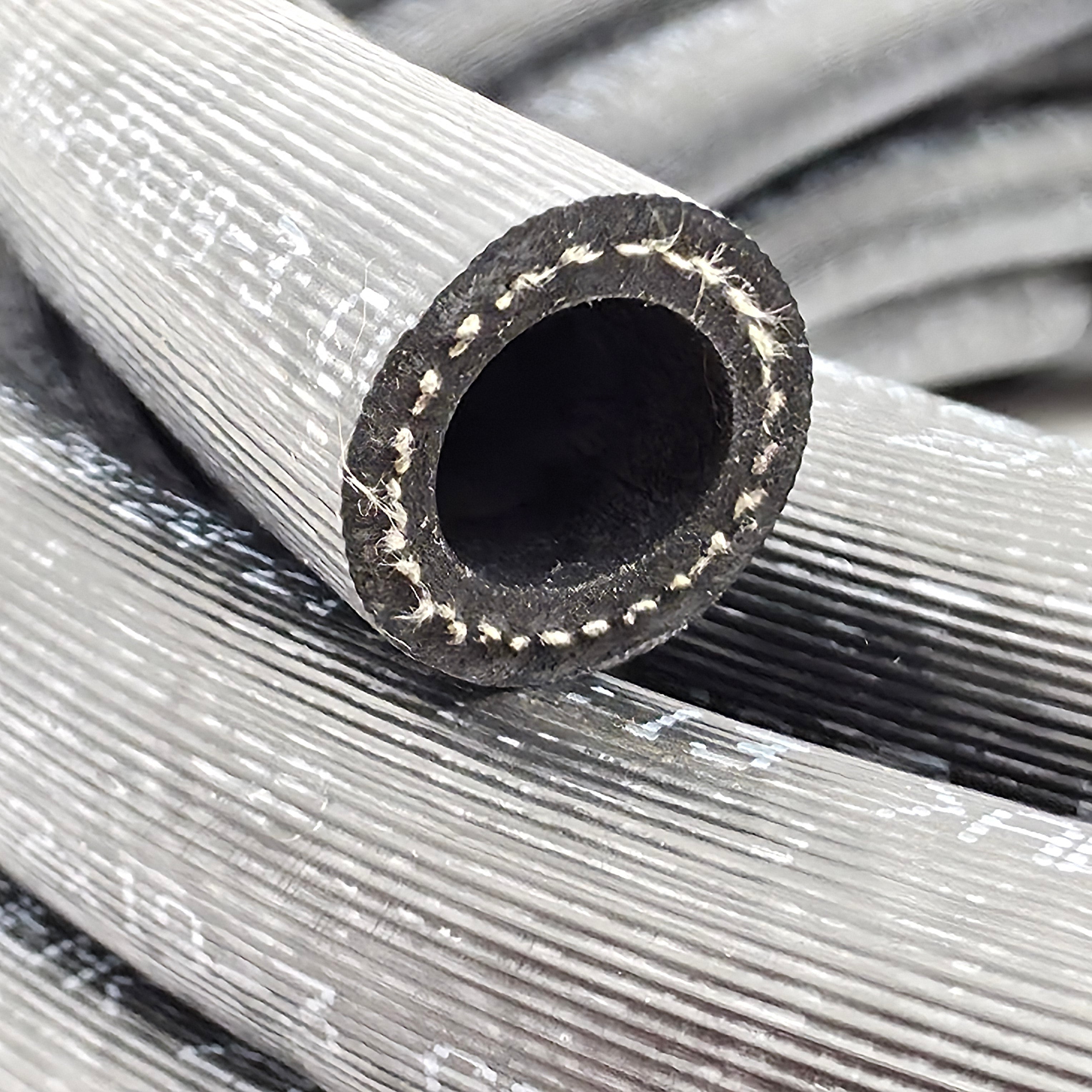

NBR hose, internally reinforced with aramid braiding, and an AEM exterior

External Diameter (± 1.0) & Internal Diameter (±0.5)
Length
SKU: 2743.1054
£28.00
Out of stock

Part Diagram and technical information is shown below

Scroll down

Description

The Cohline portfolio of precision-engineered adapters and fittings provides a reliable and flexible solution for routing fluid transfer lines—including fuel, oil, and coolant—across a wide range of high-performance automotive and motorsport applications. Designed to withstand the extreme demands of elevated pressure, thermal cycling, and high dynamic loads, these components are recognised as a standard in advanced fluid management systems. Each fitting is CNC-machined to ensure optimal mechanical integrity, dimensional stability, and resistance to fatigue and chemical degradation. This level of engineering ensures consistent performance and long service life in the harshest operational environments.

Application and temperature range:
For example for oil cooler, hydraulic oil, compressed air and lubricating oil systems, All common lubricating oils, including ATF and alloyed oils from - 40°C to +150°C and up to + 175 °C for short periods

Fittings suitable for all hose types: 80xx series

Material

NBR hose, AEM, and Aramid

Part Diagram

Product Specification

SKU D (mm)
external diameter ± 1.0
internal Diameter, d (mm) ± 0.5 DN (NW) smallest bending radius (mm) Working Pressure (bar) bursting pressure (bar) testing pressure (bar)
2743.0854 16.0 10.0 8 65 25 175 50
2743.1054 19.0 12.0 10 70 25 150 50
2743.1354 23.0 15.0 13 100 20 150 40
