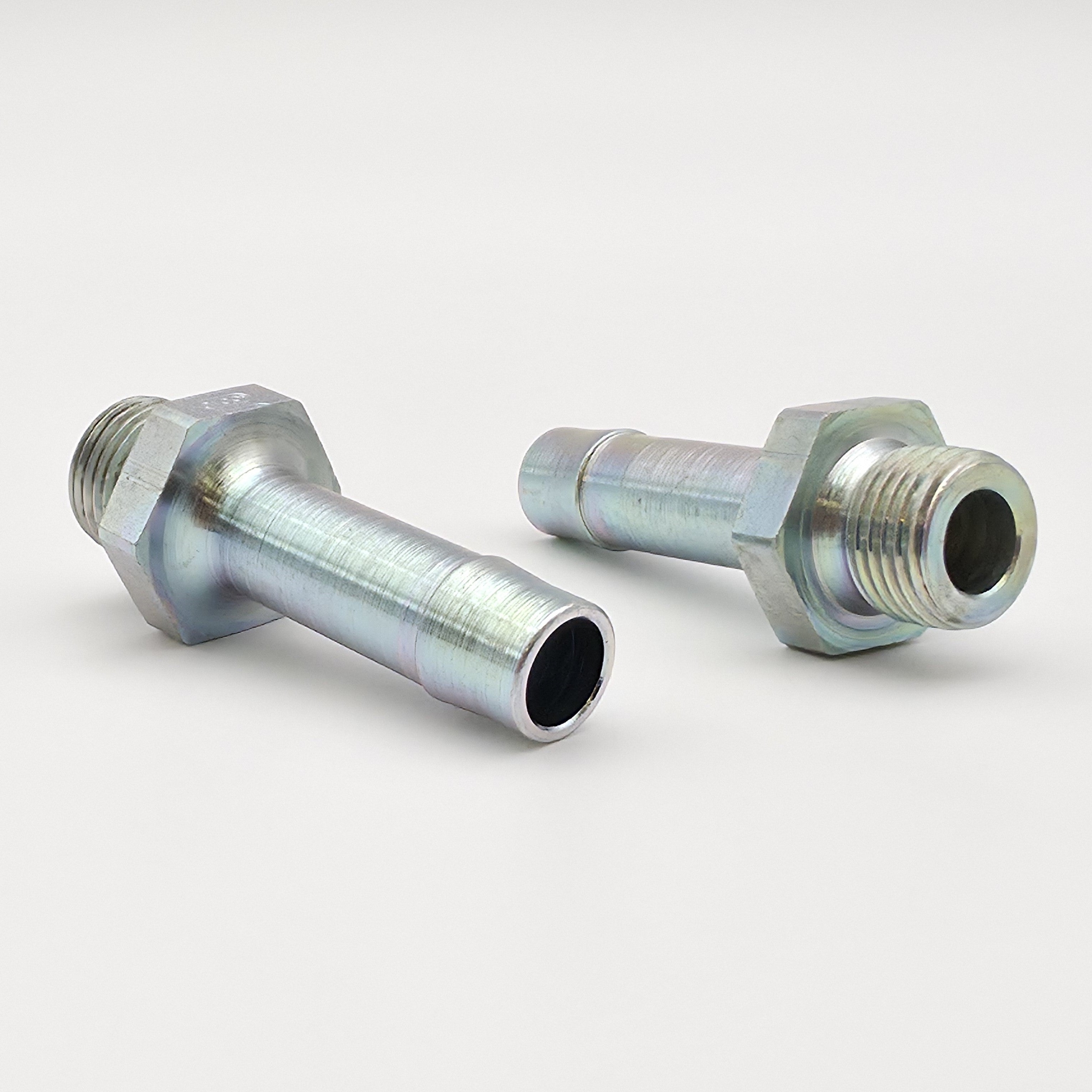

Externally Threaded Hose Nipple | DIN 74304 Type B

Externally Threaded Hose Nipple | DIN 74304 Type B

Externally Threaded Hose Nipple, type B according to DIN 74304

For pipe outside Ø (mm)
SKU: 8053.0810
£5.05
10 left

Part Diagram and technical information is shown below

Scroll down

Description

The Cohline portfolio of precision-engineered adapters and fittings provides a reliable and flexible solution for routing fluid transfer lines—including fuel, oil, and coolant—across a wide range of high-performance automotive and motorsport applications. Designed to withstand the extreme demands of elevated pressure, thermal cycling, and high dynamic loads, these components are recognised as a standard in advanced fluid management systems. Each fitting is CNC-machined to ensure optimal mechanical integrity, dimensional stability, and resistance to fatigue and chemical degradation. This level of engineering ensures consistent performance and long service life in the harshest operational environments.

Material

Zinc Plated Steel

DIN Standard

DIN 74304 type B

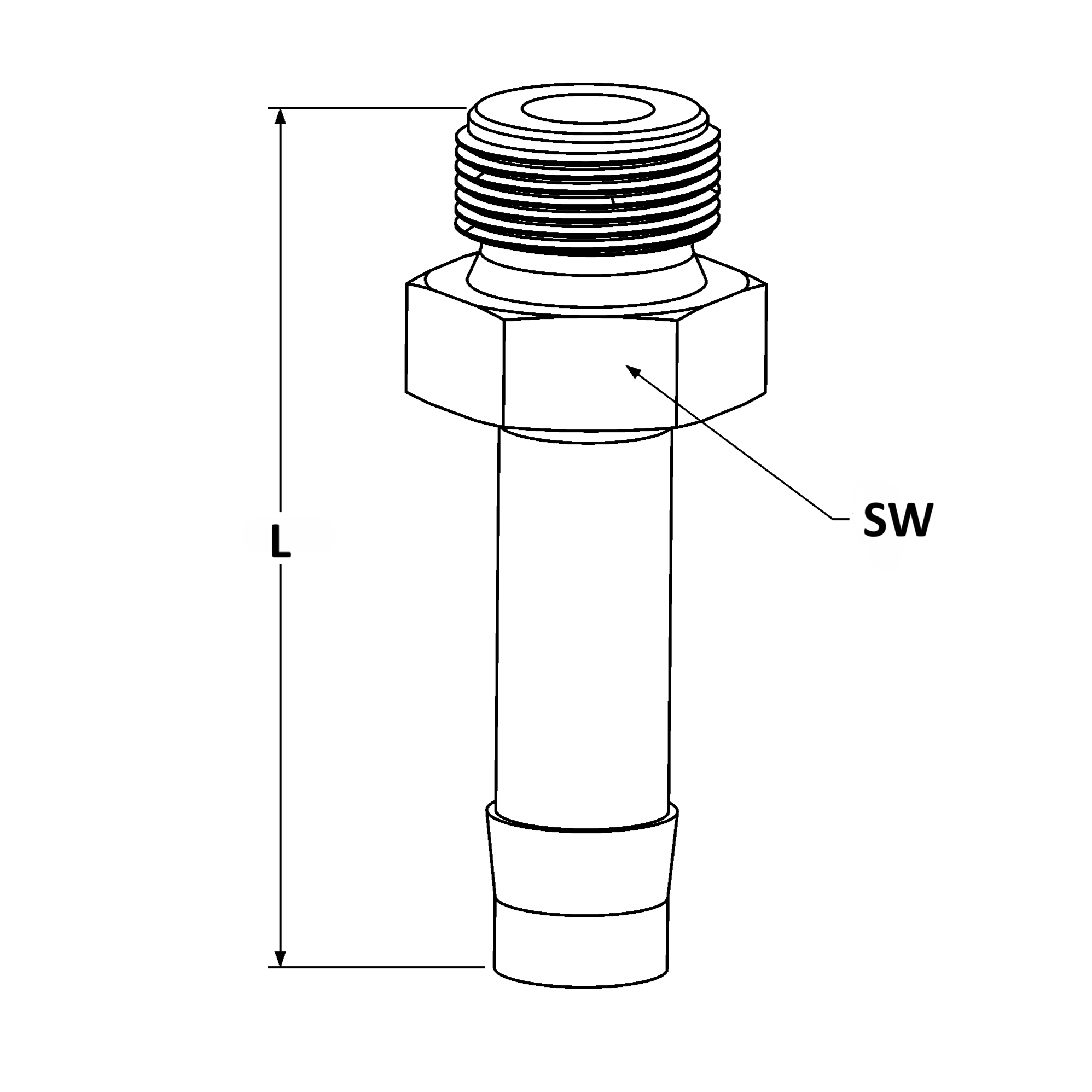

Part Diagram

Product Specification

SKU DN For pipe outside Ø SW L (mm) thread for hose
8053.0811 8/10 10 22 60 M16 x 1.5 2333.1000
8053.1313 13 15 27 59 M22 x 1.5 2333.1313
8053.161313 16/13 18 32 60 M26 x 1.5 2333.1313
