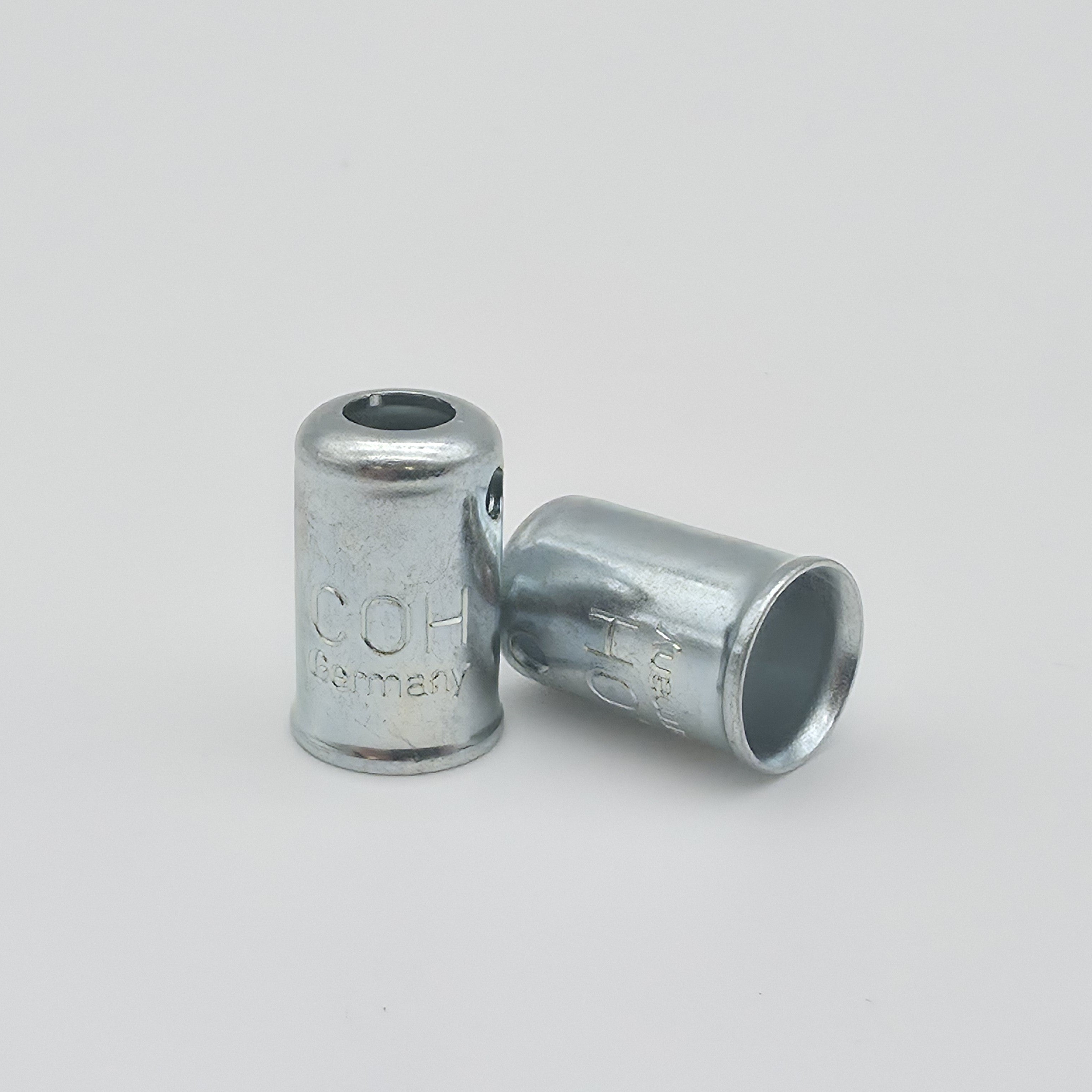

Hose Sleeve

Hose Sleeve

For Hose External Diameter (mm)
ground hole, d (mm)
SKU: 8001.0900
£0.40
In stock

Part Diagram and technical information is shown below

Scroll down

Description

The Cohline portfolio of precision-engineered adapters and fittings provides a reliable and flexible solution for routing fluid transfer lines—including fuel, oil, and coolant—across a wide range of high-performance automotive and motorsport applications. Designed to withstand the extreme demands of elevated pressure, thermal cycling, and high dynamic loads, these components are recognised as a standard in advanced fluid management systems. Each fitting is CNC-machined to ensure optimal mechanical integrity, dimensional stability, and resistance to fatigue and chemical degradation. This level of engineering ensures consistent performance and long service life in the harshest operational environments.

Material

Zinc Plated Steel

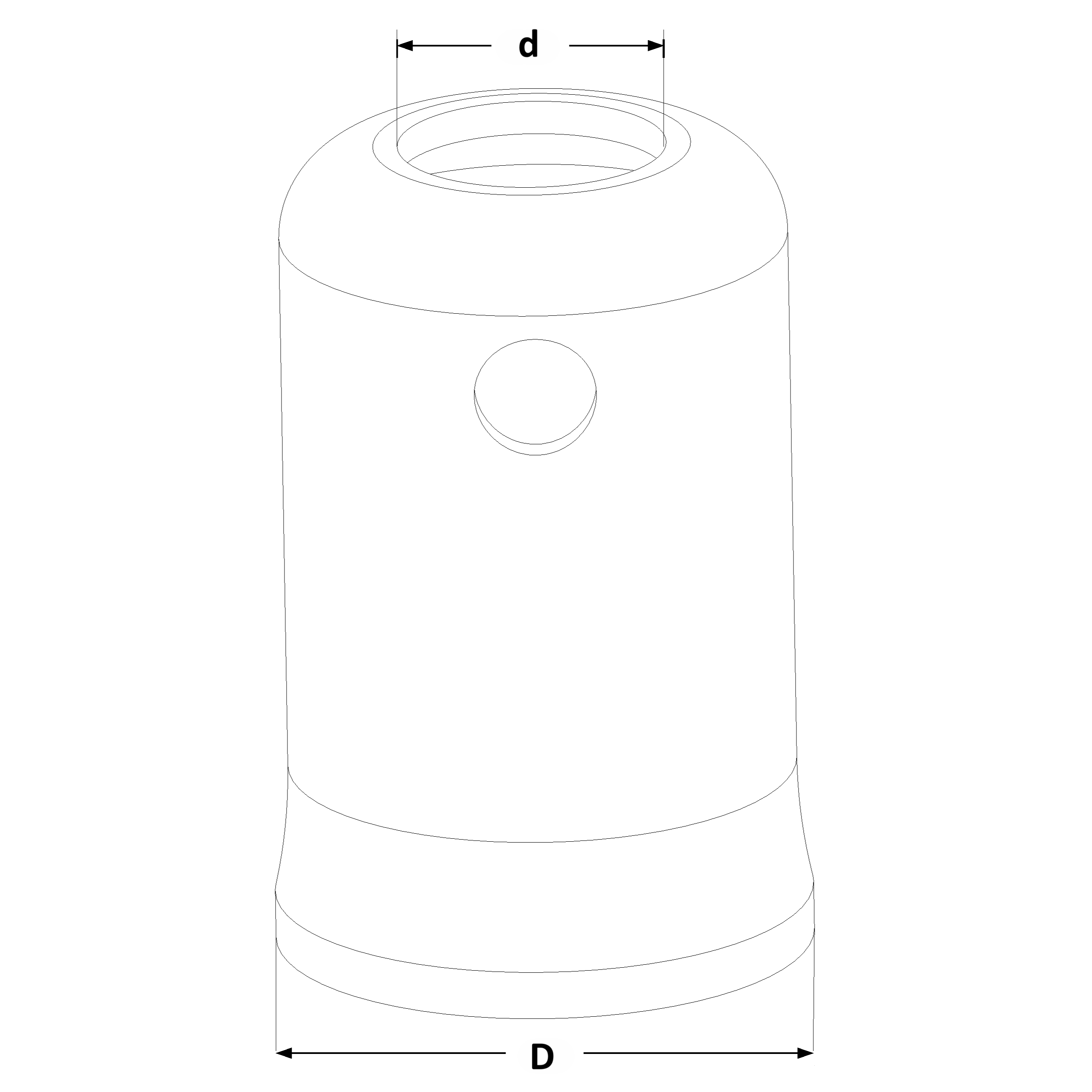

Part Diagram

Product Specification

Part Number  for external hose diameter D (mm)
external diameter
ground hole, d (mm) DN (NW)
8001.0900 7.5-8.0 9 5.5 2
8001.1000 8.5-9.0 10 6.2 2/3
8001.1051 9.0-9.5 10.5 5.2 3
8001.1100 9.5-10.0 11 7.2 4
8001.1250 11.0-11.5 12.5 7.3 4
8001.1252 11.0-11.5 12.5 8.8 4
8001.1350 12.0-12.5 13.5 9.2 4/6
8001.1450 13.0-13.5 14.5 9.3 6
8001.1500 13.5-14.0 15 11.2 6
8001.1551 13.5-14.0 15 9.3 6
8001.1600 14.5-15.0 16 11.4 8
8001.1700 15.5-16.0 17 11.3 8
8001.1800 16.5-17.0 18 14.2 10
8001.1950 18.0 - 18.5 19.5 14.2 10
8001.2000 18.5-19.0 20 14.2 10
8001.2200 20.5-21.0 22 17.2 13
8001.2300 21.5-22.0 23 17.2 13
8001.2450 23.0 - 23.5 24.5 17.2 13
8001.2650 25.0 - 25.5 26.5 19.7 16
8001.2800 26.5 - 27.0 28 19.7 16
8001.3050 29.0 - 29.5 30.5 23.7 20
8001.3200 30.5 - 31.0 32 23.7 20
8001.3300 31.5-32.0 33 23.9 20
8001.4000 35.0-39 40 29.6 25
