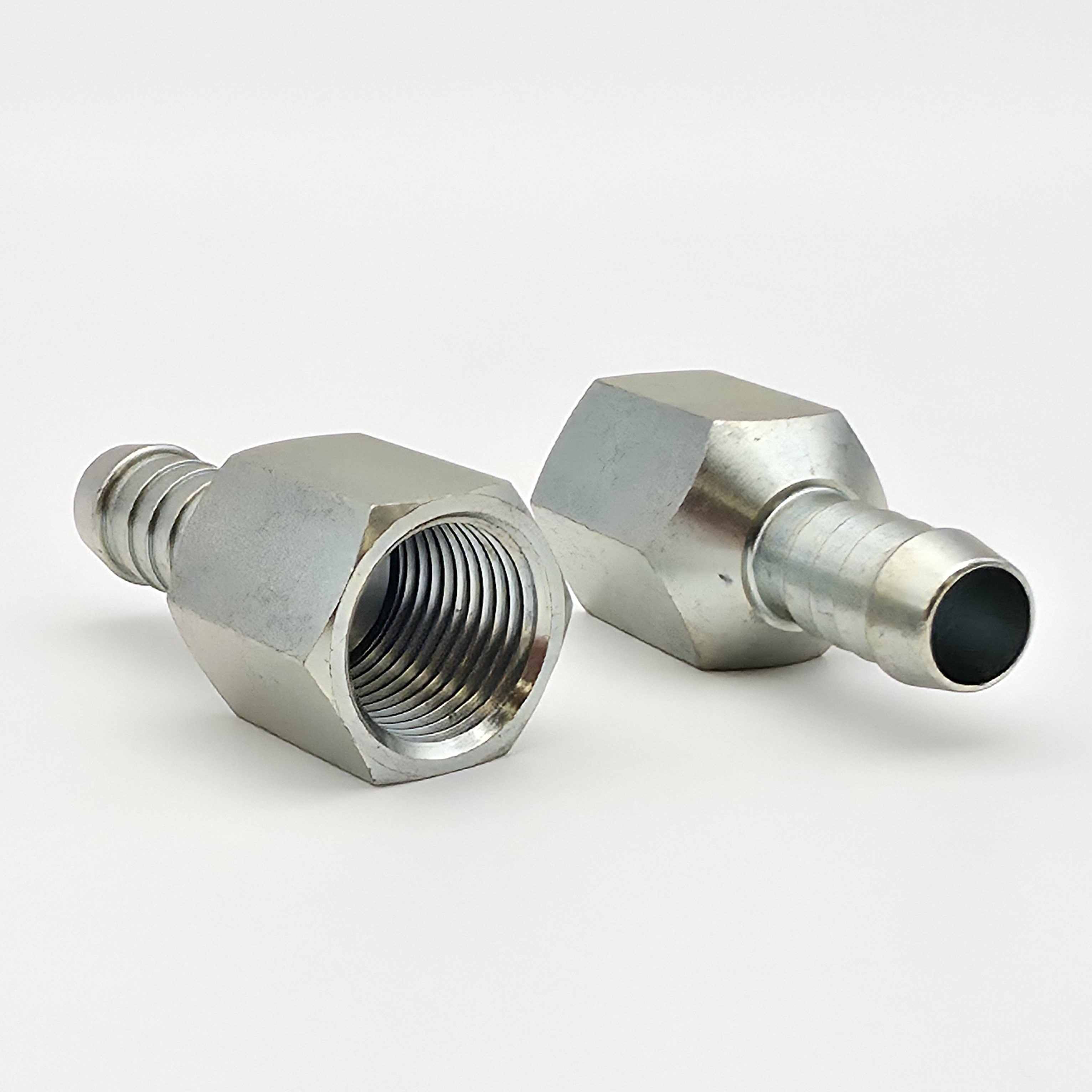

Nipple with Internal Thread

Nipple with Internal Thread

Straight hose fitting for use with rubber hose, female thread with concave seat.

SW (mm)
Ø for hose inside
SKU: 8033.0800
£17.75
In stock

Part Diagram and technical information is shown below

Scroll down

Description

The Cohline portfolio of precision-engineered adapters and fittings provides a reliable and flexible solution for routing fluid transfer lines—including fuel, oil, and coolant—across a wide range of high-performance automotive and motorsport applications. Designed to withstand the extreme demands of elevated pressure, thermal cycling, and high dynamic loads, these components are recognised as a standard in advanced fluid management systems. Each fitting is CNC-machined to ensure optimal mechanical integrity, dimensional stability, and resistance to fatigue and chemical degradation. This level of engineering ensures consistent performance and long service life in the harshest operational environments.

Material

Zinc Plated Steel

DIN Standard

74235

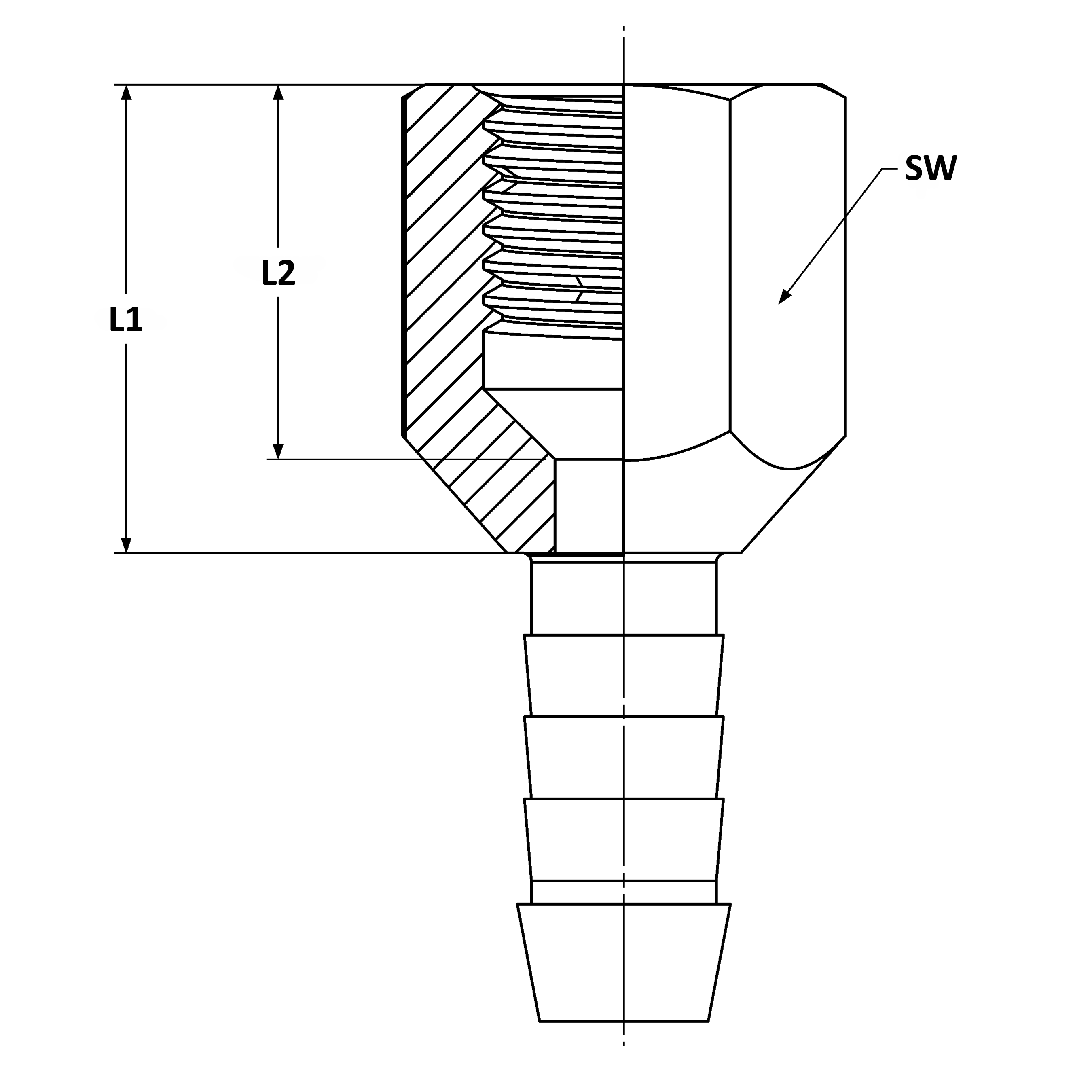

Part Diagram

Product Specification

SKU SW (mm) Ø for hose inside  DN (NW) thread L1 L2
8033.19.99.0600 17 7 - 8  6 M14 x 1.5 22.0 16.0
8033.0800 19 9 - 10 8 M16 x 1.5 23.0 17.0
8033.0806 19 7 - 8 8/6 M16 x 1.5  23.0 16.0
