SKU:
3011.0204
In stock

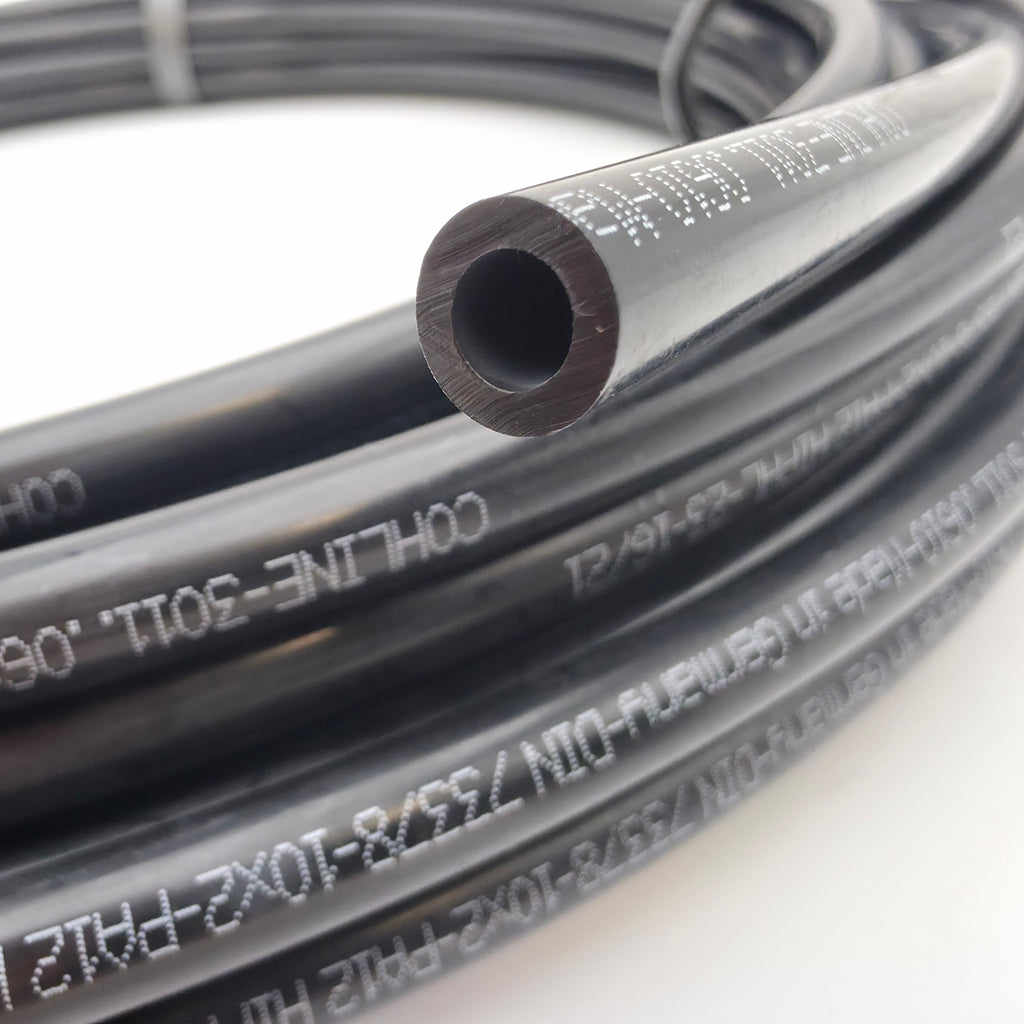

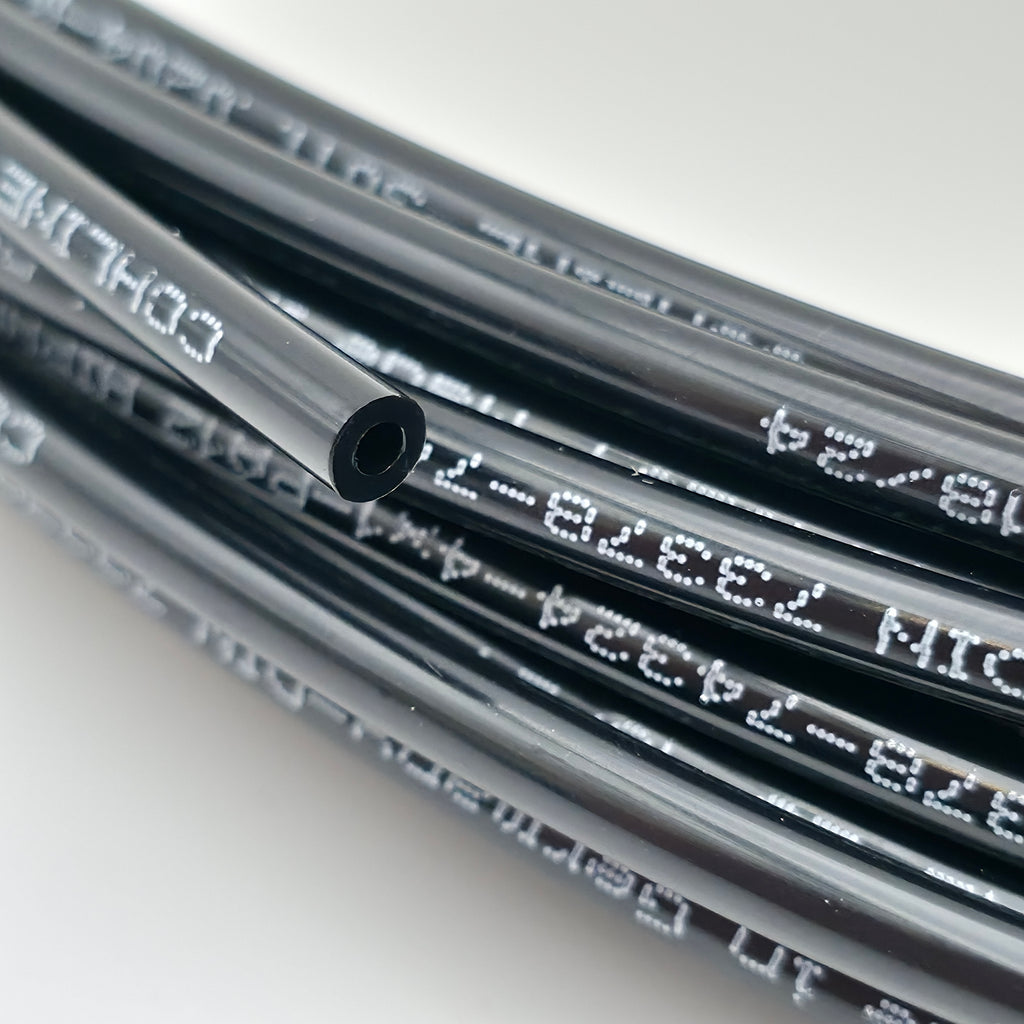

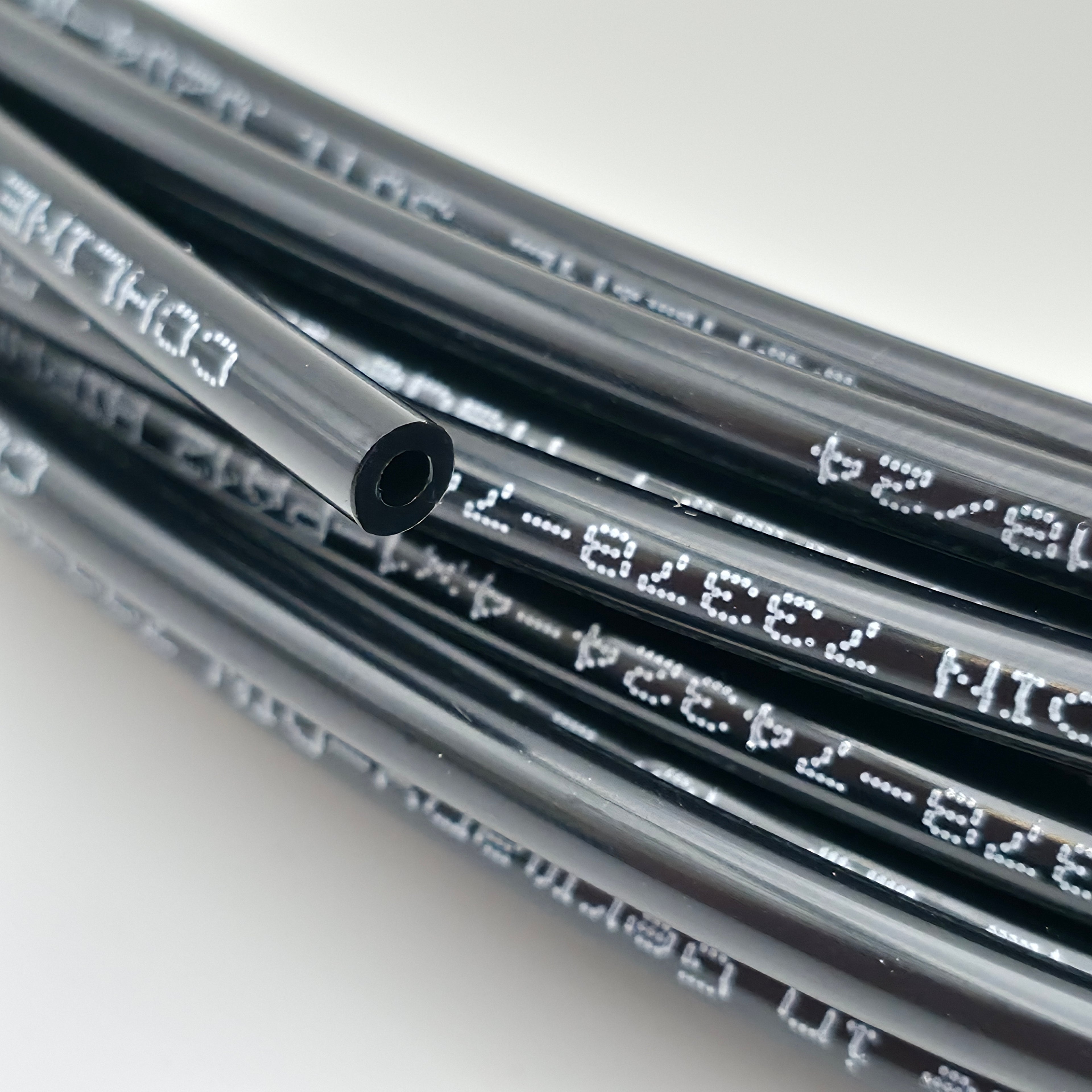

Polyamide Tube
PA12 HIPHL Tube - Plasticised PA 12, heat-ageing and light stabilising
£2.00
Part Diagram and technical information is shown below
Scroll down
Description
The Cohline portfolio of precision-engineered adapters and fittings provides a reliable and flexible solution for routing fluid transfer lines—including fuel, oil, and coolant—across a wide range of high-performance automotive and motorsport applications. Designed to withstand the extreme demands of elevated pressure, thermal cycling, and high dynamic loads, these components are recognised as a standard in advanced fluid management systems. Each fitting is CNC-machined to ensure optimal mechanical integrity, dimensional stability, and resistance to fatigue and chemical degradation. This level of engineering ensures consistent performance and long service life in the harshest operational environments.
Material
PA12 HIPHL
DIN Standard
73378 & 74324

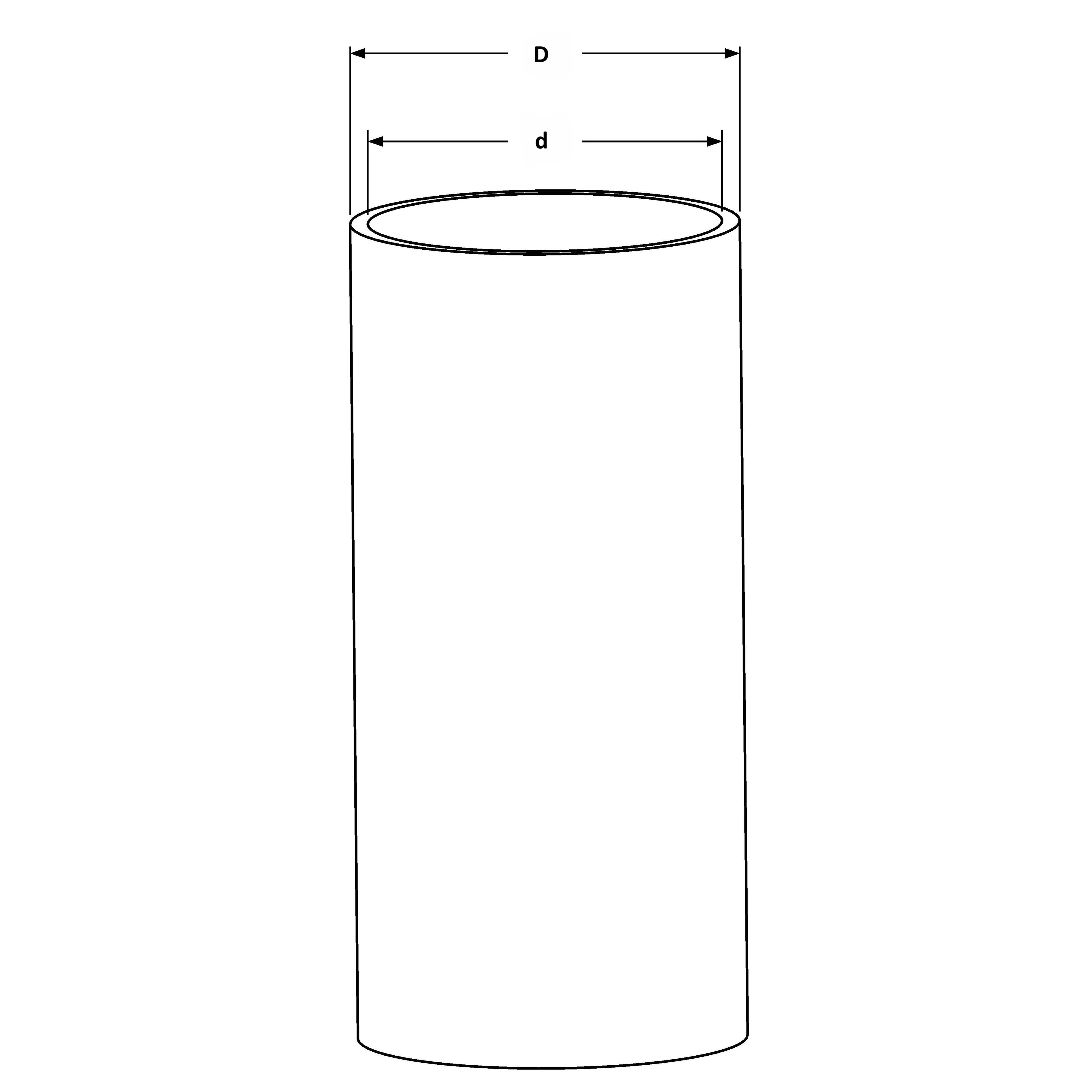

Part Diagram
Product Specification
| SKU | ±0.15 | ±0.3 | Wall thickness (mm) | working pressure (bar) | smallest admissible bending radius | Colour |
| 3011.0204 | 4.00 | 2.00 | 1.00 | 44 | 20 | Black |
| 3011.0305 | 5.00 | 3.00 | 1.00 | 33 | 25 | Black |
| 3011.3106 | 6.00 | 3.15 | 1.40 | 42 | 35 | Black |
| 3011.0406 | 6.00 | 4.00 | 1.00 | 27 | 30 | Black |
| 3011.0408 | 8.00 | 4.00 | 2.00 | 44 | 40 | Black |
| 3011.0608 | 8.00 | 6.00 | 1.00 | 19 | 50 | Black |
| 3011.0609 | 9.00 | 6.00 | 1.50 | 27 | 45 | Black |
| 3011.0610 | 10.00 | 6.00 | 2.00 | 33 | 50 | Black |
| 3011.0810 | 10.00 | 8.00 | 1.00 | 15 | 60 | Black |
| 3011.0811 | 11.00 | 8.00 | 1.50 | 21 | 55 | Black |
| 3011.0812 | 12.00 | 8.00 | 2.00 | 27 | 60 | Black |
| 3011.0912 | 12.00 | 9.00 | 1.50 | 19 | 70 | Black |
| 3011.1012 | 12.00 | 10.00 | 1.00 | 12 | 85 | Black |
| 3011.1215 | 15.00 | 12.00 | 1.50 | 15 | 90 | Black |
| 3011.1518 | 18.00 | 15.00 | 1.50 | 12 | 120 | Black |
| 3010.0204 | 4.00 | 2.00 | 1.00 | 44 | 20 | White |
| 3010.0305 | 5.00 | 3.00 | 1.00 | 33 | 25 | White |
| 3010.3106 | 6.00 | 3.15 | 1.40 | 42 | 35 | White |
| 3010.0406 | 6.00 | 4.00 | 1.00 | 27 | 30 | White |
| 3010.0408 | 8.00 | 4.00 | 2.00 | 44 | 40 | White |
| 3010.0608 | 8.00 | 6.00 | 1.00 | 19 | 50 | White |
| 3010.0609 | 9.00 | 6.00 | 1.50 | 27 | 45 | White |
| 3010.0610 | 10.00 | 6.00 | 2.00 | 33 | 50 | White |
| 3010.0810 | 10.00 | 8.00 | 1.00 | 15 | 60 | White |
| 3010.0811 | 11.00 | 8.00 | 1.50 | 21 | 55 | White |
| 3010.0812 | 12.00 | 8.00 | 2.00 | 27 | 60 | White |
| 3010.0912 | 12.00 | 9.00 | 1.50 | 19 | 70 | White |
| 3010.1012 | 12.00 | 10.00 | 1.00 | 12 | 85 | White |
| 3010.1215 | 15.00 | 12.00 | 1.50 | 15 | 90 | White |
| 3010.1518 | 18.00 | 15.00 | 1.50 | 12 | 120 | White |
