Part Number |
External Diameter D (mm) ± 0.6 |
Internal Diameter d (mm) ± 0.3 |
DN (NW) |
Working Pressure (bar) |
2032.0200 | 8.0 | 3.0 | 2.0 | 20 |
2032.0300 | 11.0 | 5.0 | 3.0 | 20 |
2032.0308 | 7.5 | 4.5 | 3.0 | 20 |
2032.0400 | 12.0 | 6.0 | 4.0 | 15 |
2032.0600 | 14.0 | 8.0 | 6.0 | 15 |
2032.0800 | 16.0 | 10.0 | 8.0 | 10 |
2032.1000 | 19.0 | 13.0 | 10.0 | 10 |
2032.1300 | 24.0 | 16.0 | 13.0 | 10 |
2032.1600 | 26.0 | 19.0 | 16.0 | 7 |

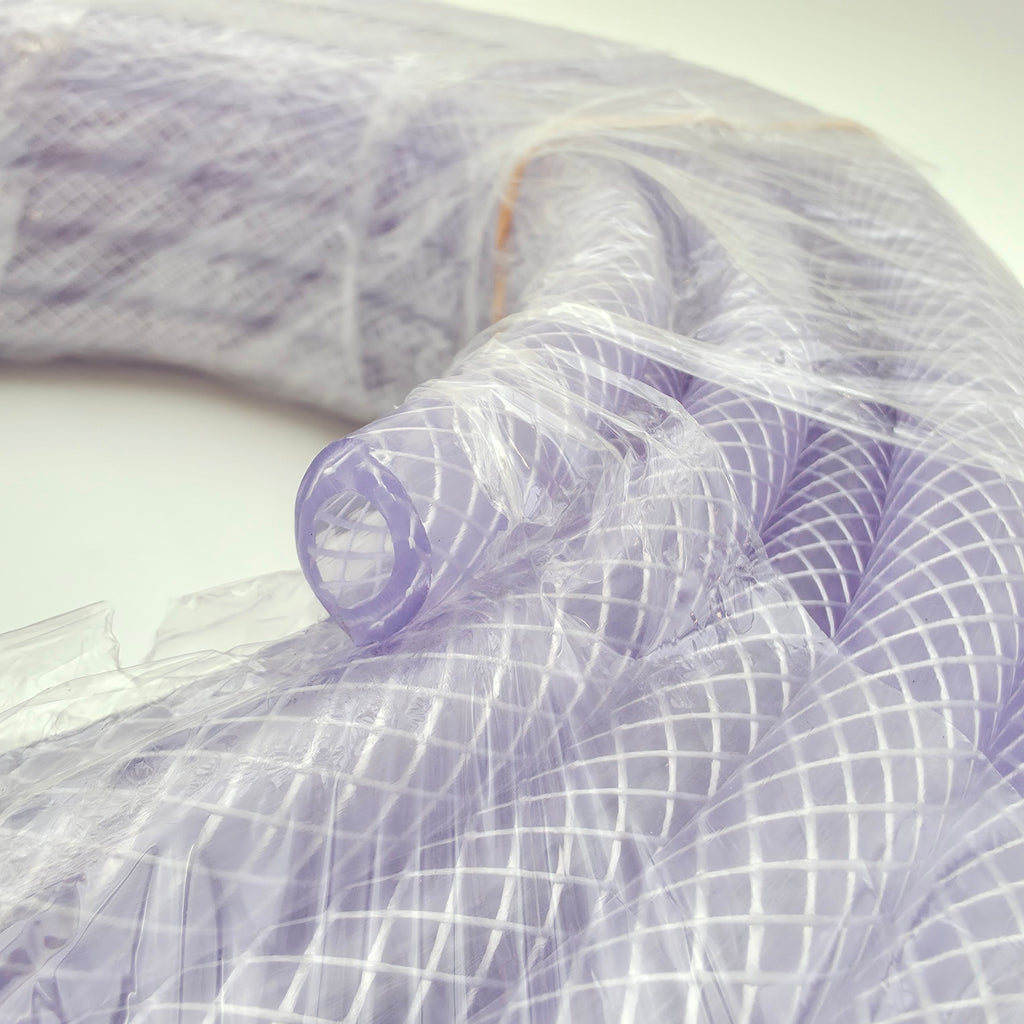

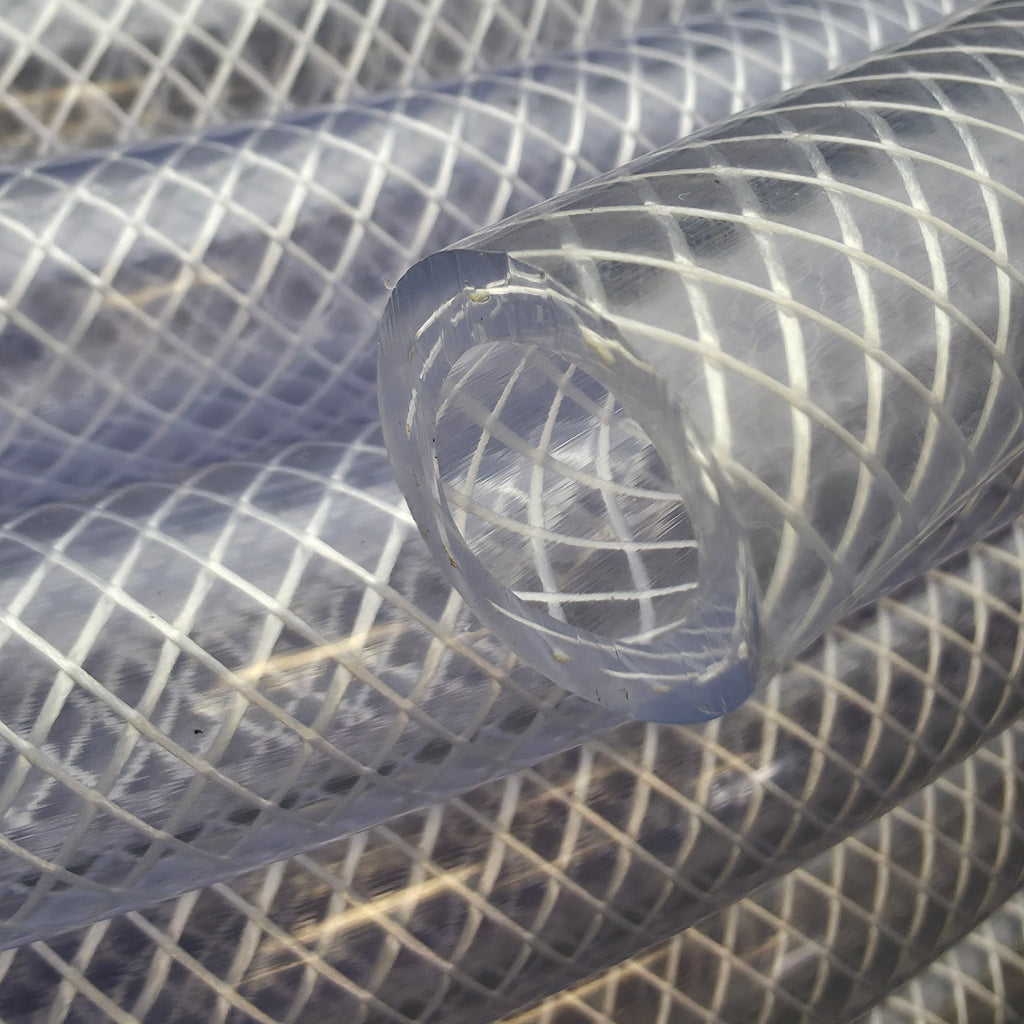

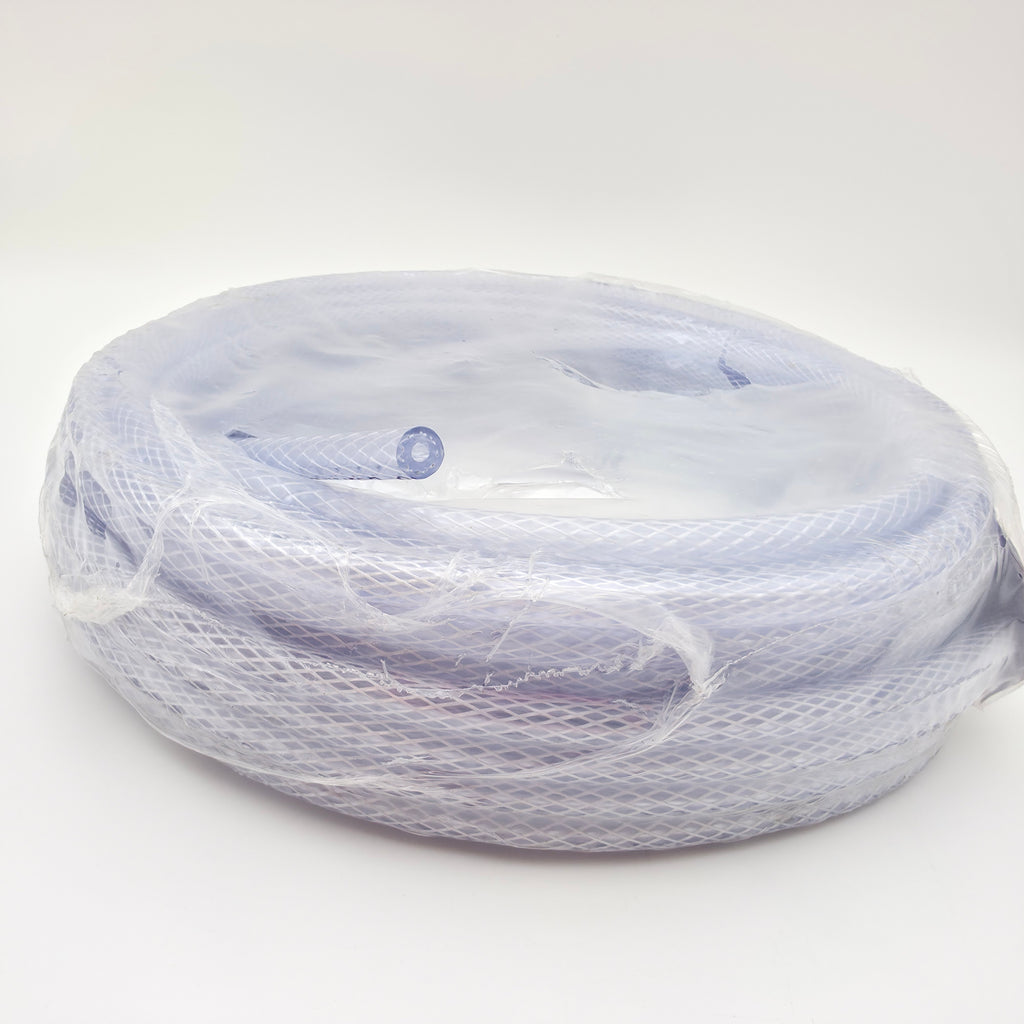

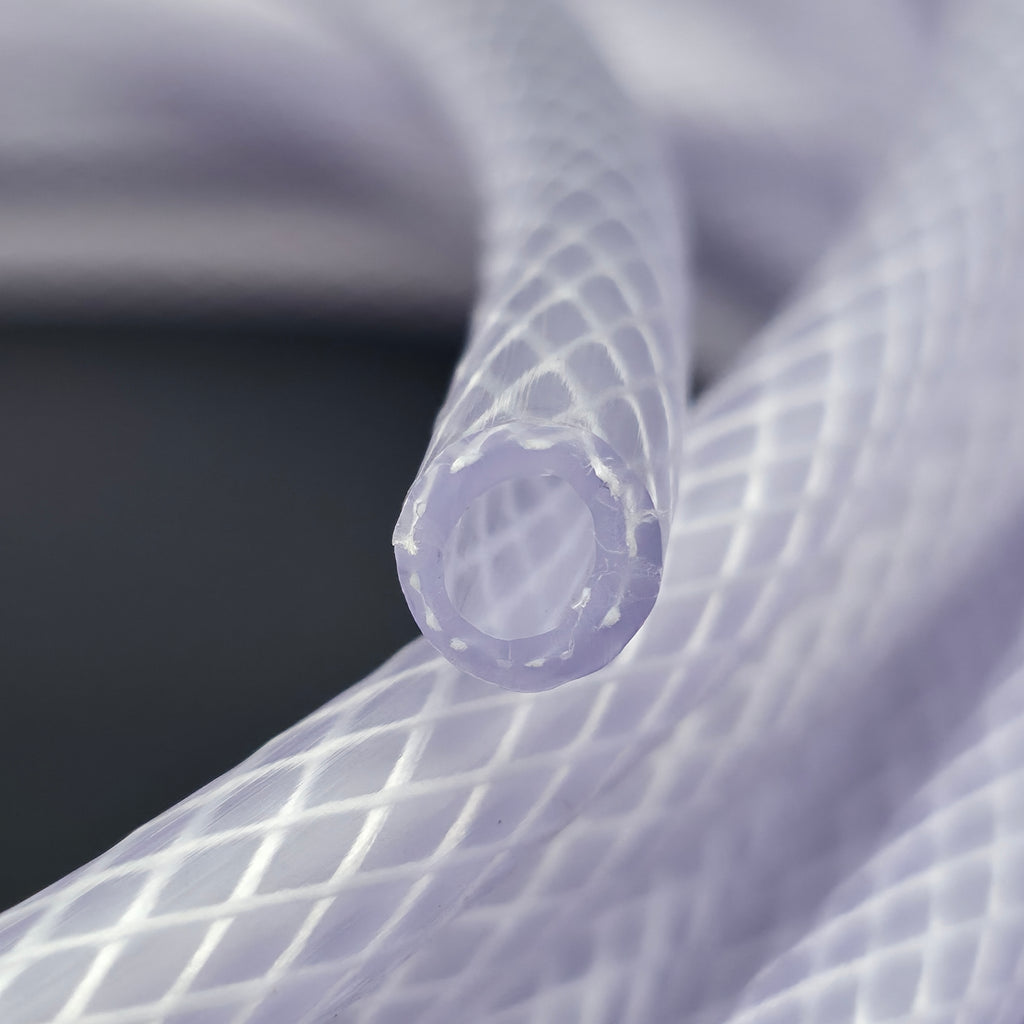

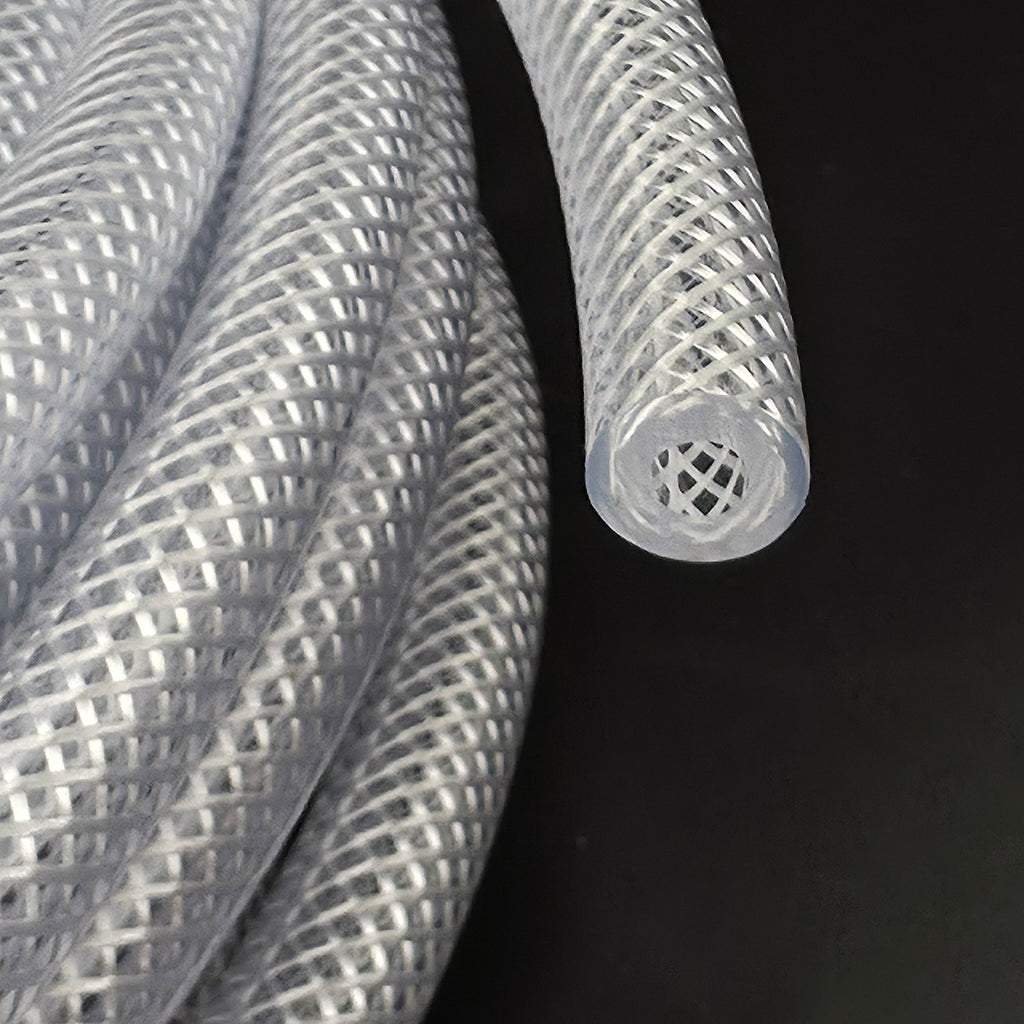

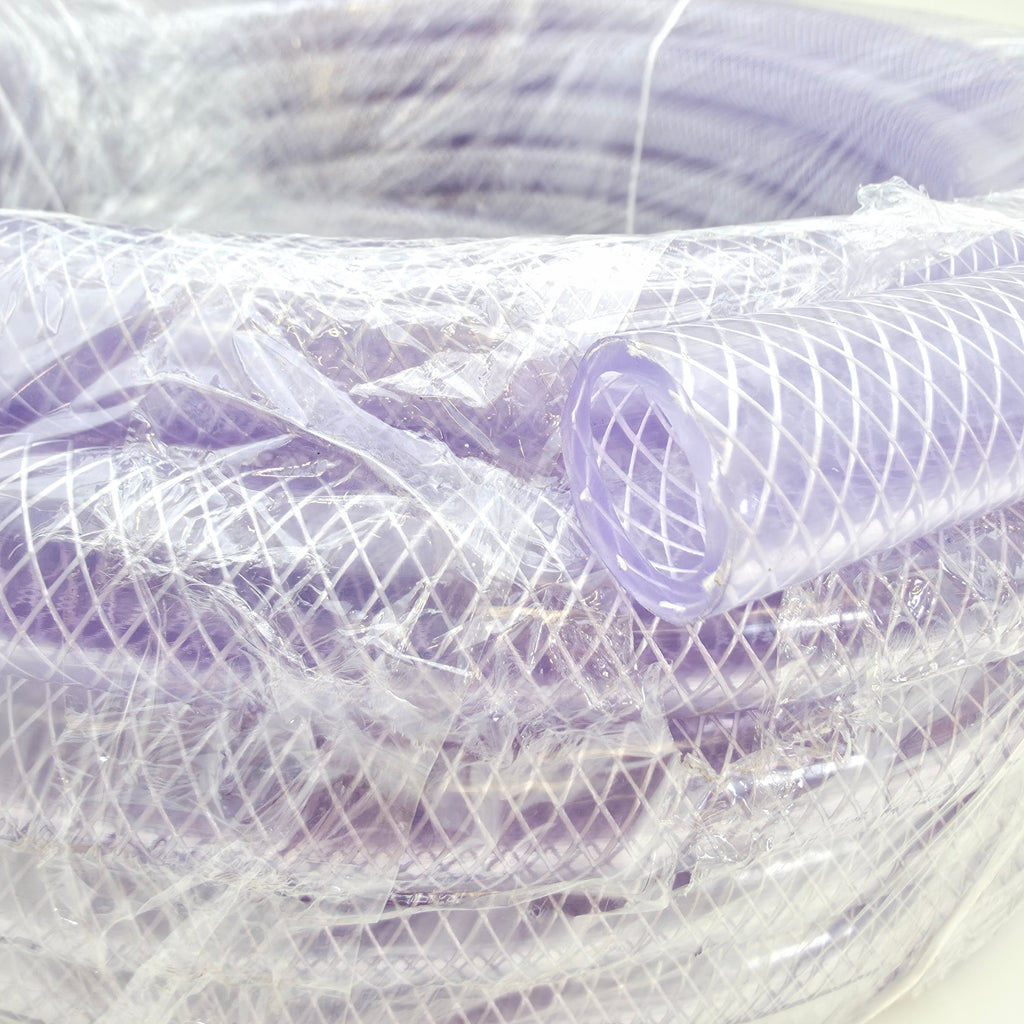

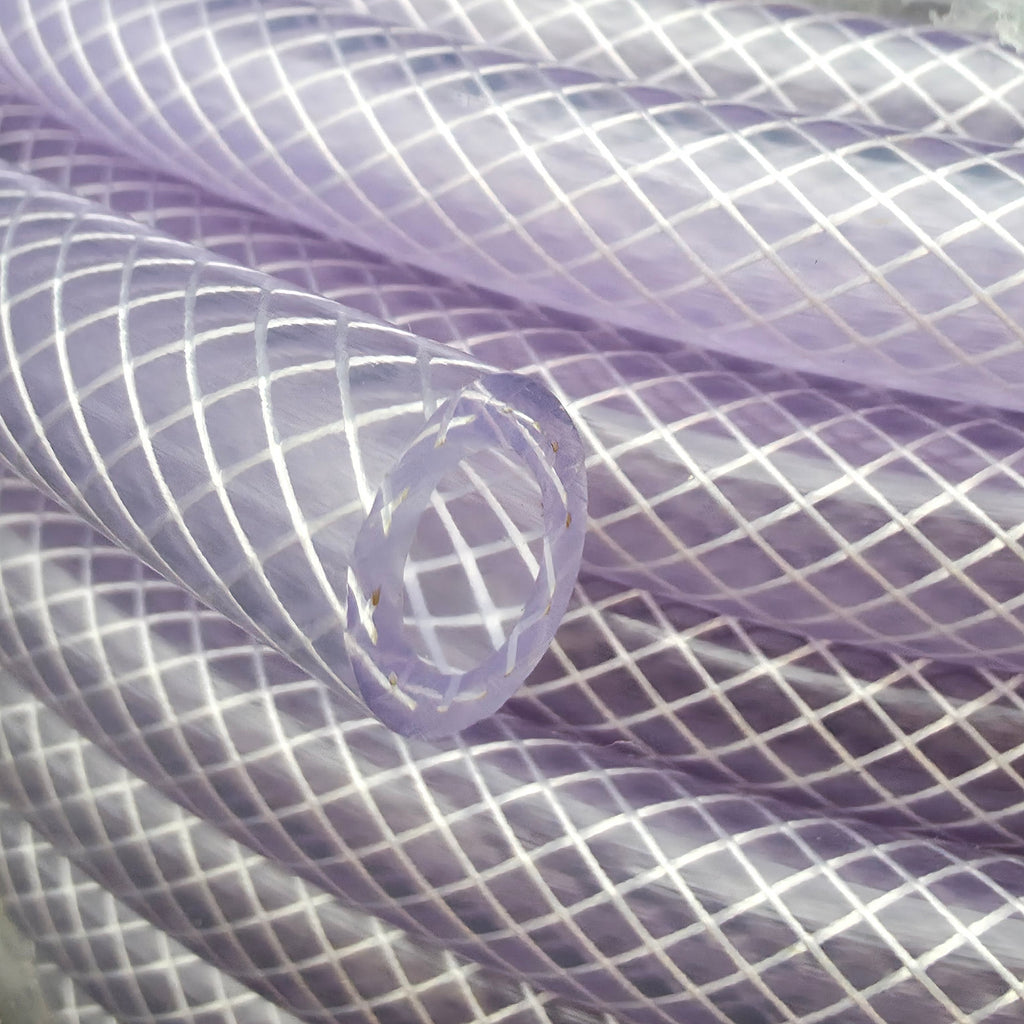

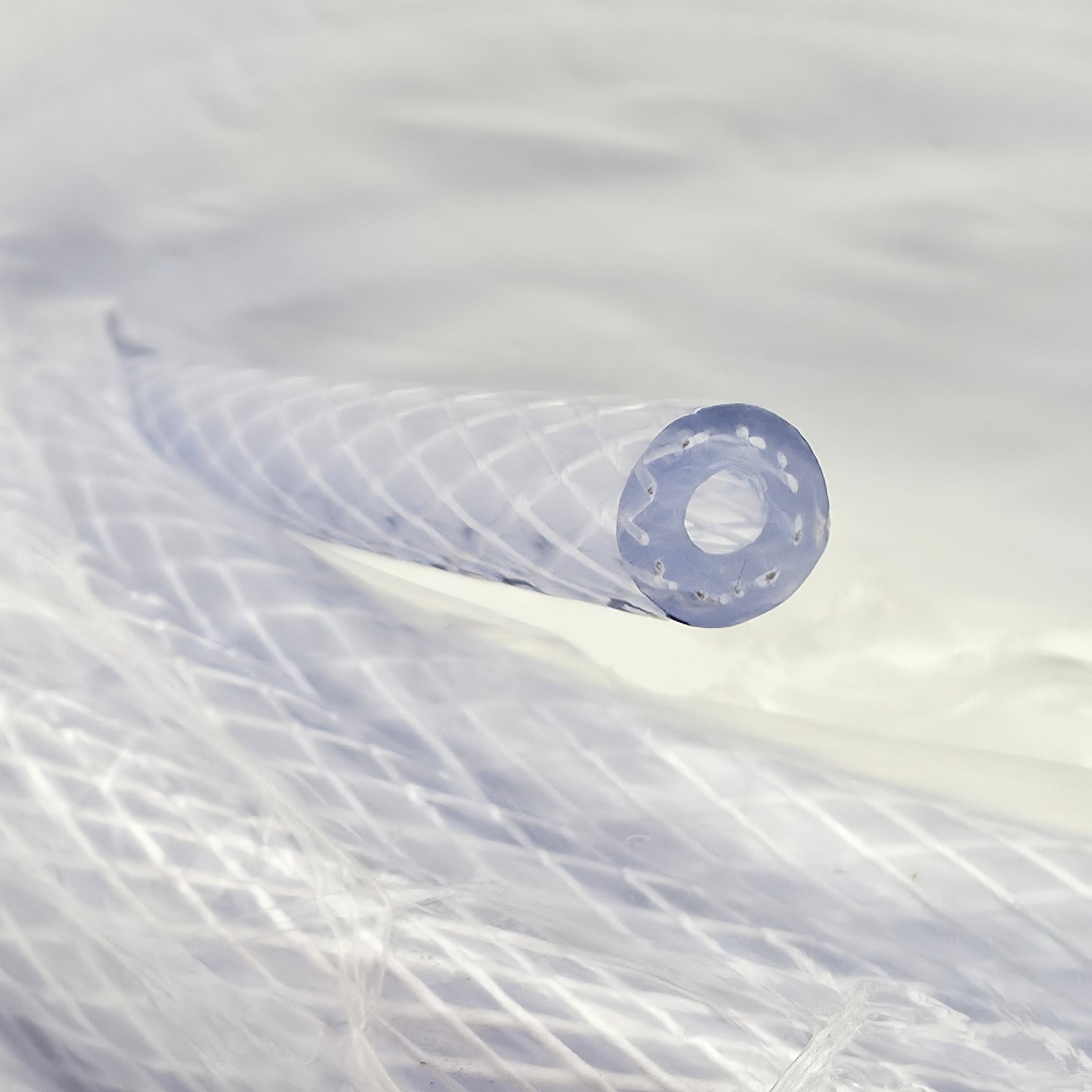

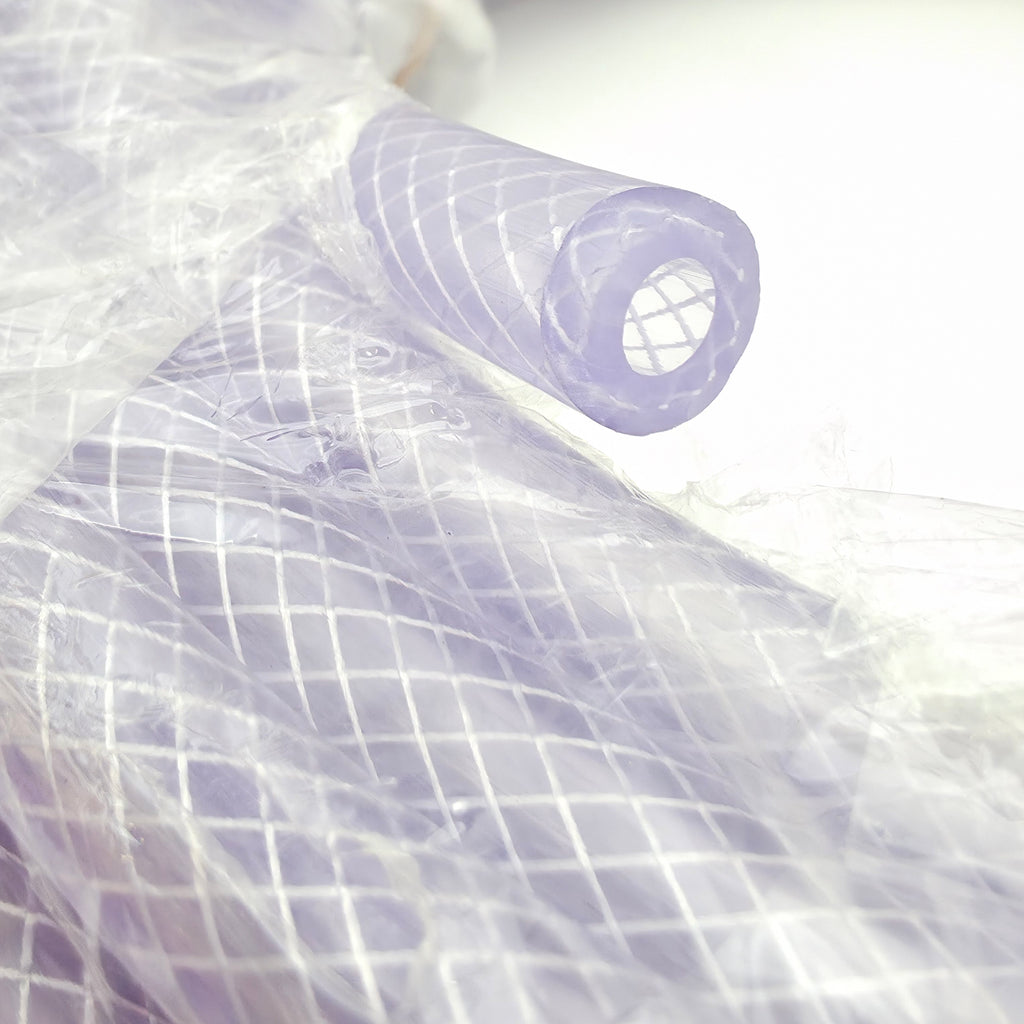

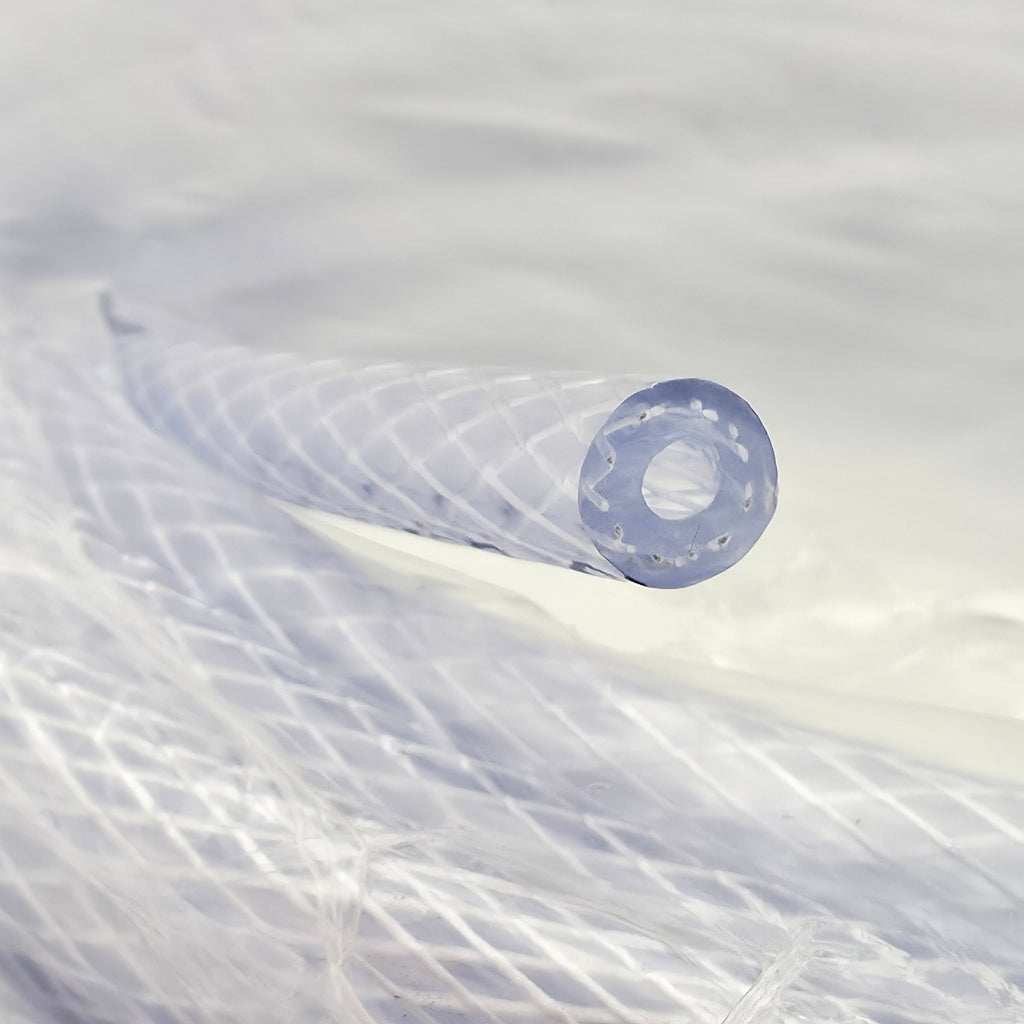

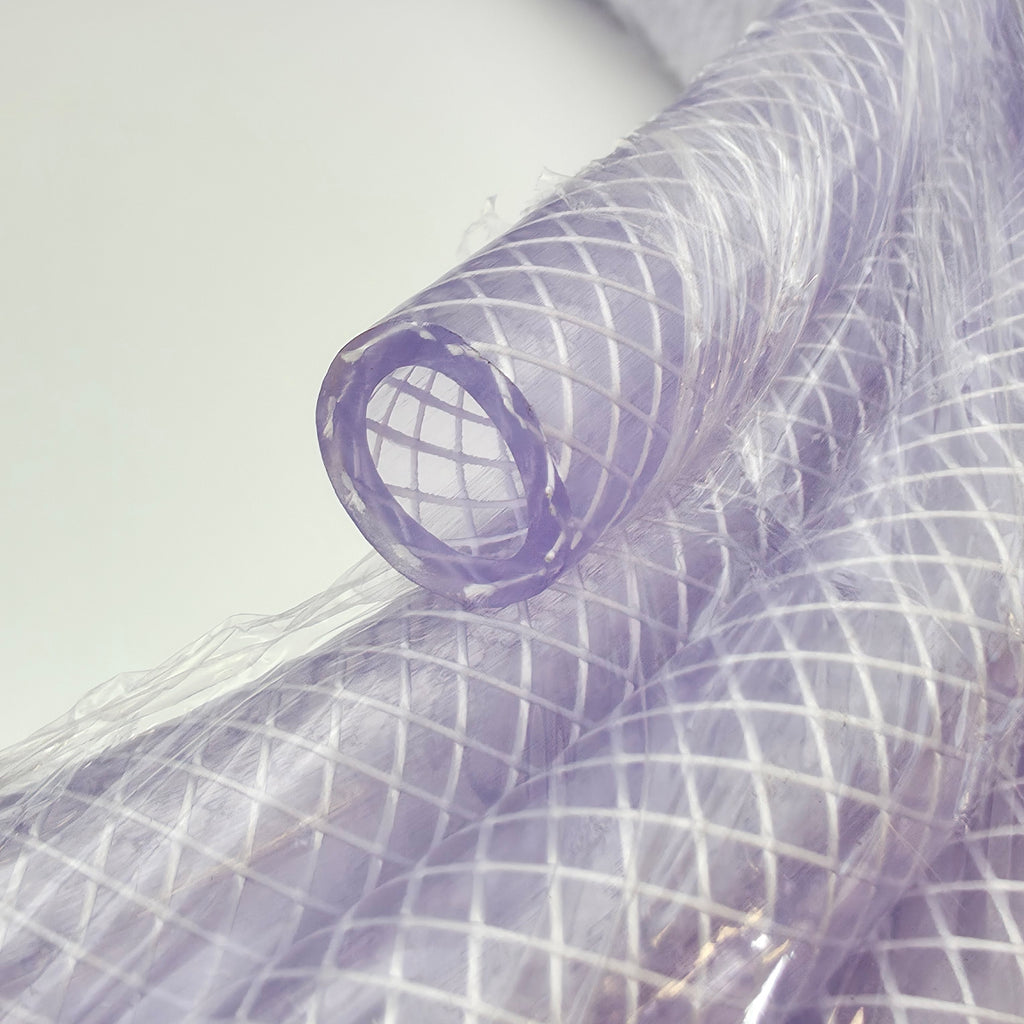

Transparent PVC hose | Reinforced
Transparent PVC hose with internal fibre braiding, suitable for use with air or water
Part Diagram and technical information is shown below
The maximum length available in one piece is 20m. We will always try to supply hoses in one complete length. Select Quantity of the hose length in meters needed.
Please note that only complete rolls can be returned, pieces cut from the roll cannot be returned for credit, Please ensure that you select the correct hose and length.
Description
Cohline's high-specification range of braided hose assemblies is engineered to meet the rigorous demands of modern automotive systems. The multi-layer construction—available in both synthetic rubber and PTFE-lined configurations—offers excellent chemical resistance, high-pressure tolerance, and thermal stability. These hoses are suitable for a wide range of critical fluid transfer applications, including fuel, coolant, and lubricating oil systems. A full complement of precision-machined fittings is available to ensure optimal integration across vehicle platforms. Extensively validated in our internal test programs and field applications, Cohline hoses have been specified by leading OEMs for long-term, high-reliability use in production and development environments.
Specification

Hose Diagram

Questions of Enquiries?
Please reach out to us if you have any question or custom enquiries, we'd love to hear from you
