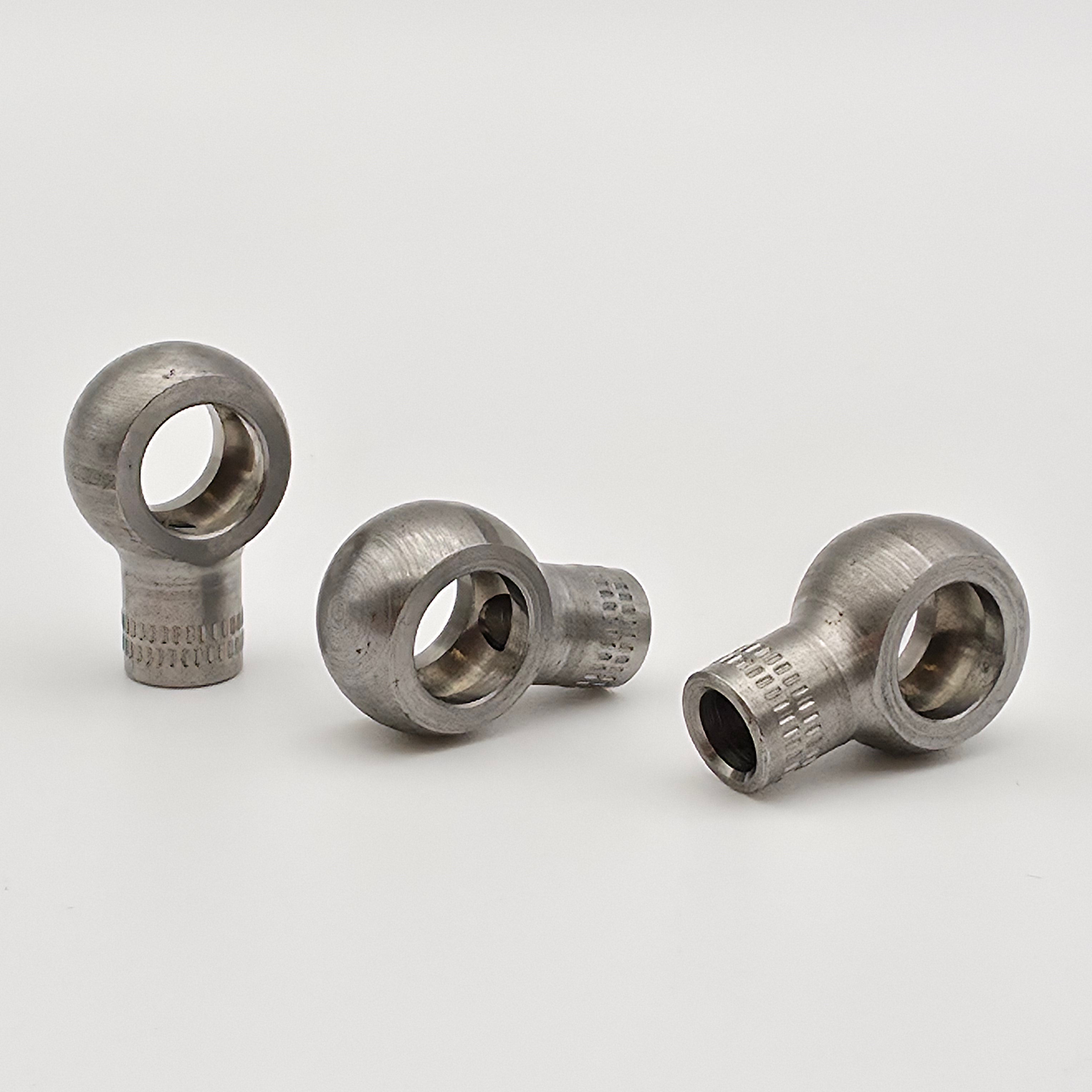

Solder Banjo

Solder Banjo

Type B, mild steel banjo fitting with a socket, designed for soldering onto tubing or tube fittings



For Pipe Outer Diameter (mm)
Banjo Hole Diameter (mm)
SKU: 9081.0300.82
£3.00
In stock

Part Diagram and technical information is shown below

Scroll down

Description

The Cohline portfolio of precision-engineered adapters and fittings provides a reliable and flexible solution for routing fluid transfer lines—including fuel, oil, and coolant—across a wide range of high-performance automotive and motorsport applications. Designed to withstand the extreme demands of elevated pressure, thermal cycling, and high dynamic loads, these components are recognised as a standard in advanced fluid management systems. Each fitting is CNC-machined to ensure optimal mechanical integrity, dimensional stability, and resistance to fatigue and chemical degradation. This level of engineering ensures consistent performance and long service life in the harshest operational environments.

Material

Zinc Plated Steel

DIN Standard

DIN 7642 (replacement for DIN 7622)

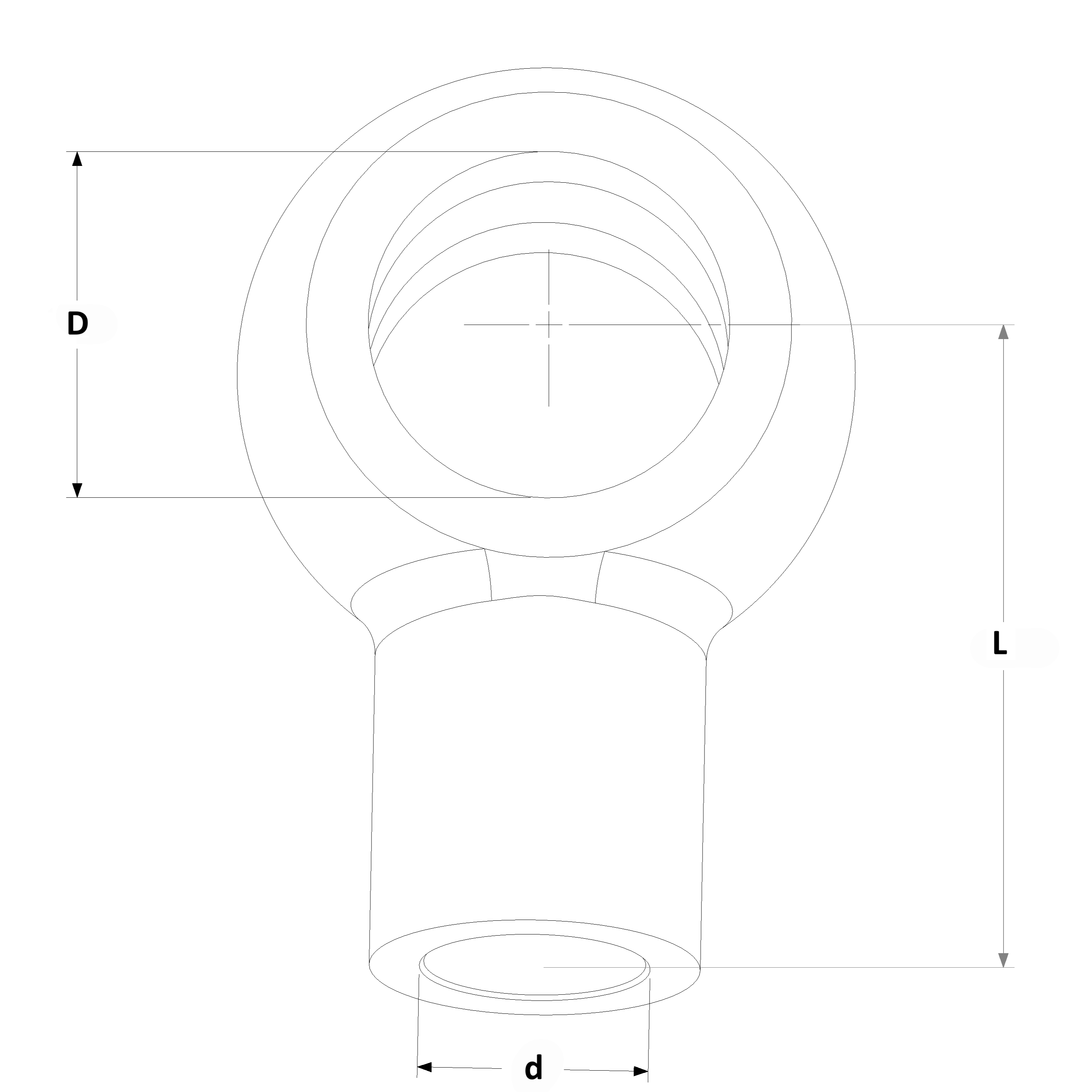

Part Diagram

Product Specification

SKU centre hole diameter for pipe outer Ø, d (mm) DN (NW) L (mm)
9081.030082 8 5 3 14
9081.040082 10 6 4 16
9081.0403 10 5 4/3 16
9081.060082 12 8 6 18
9081.0604 12 6 6/4 18
9081.080082 14 10 8 20
9081.0804.84 14 6 8/4 20
9081.080681 14 8 8/6 20
9081.100082 16 12 10 22
9081.1008.81 16 10 10/8 22
9081.130083 18 15 13 24
9081.1308 18 10 13/8 24
9081.160083 22 18 16 27
9081.161384 22 15 16/13 27
9081.200083 26 22 20 32
