Swivel Nut Metric Thread

Swivel Nut Metric Thread

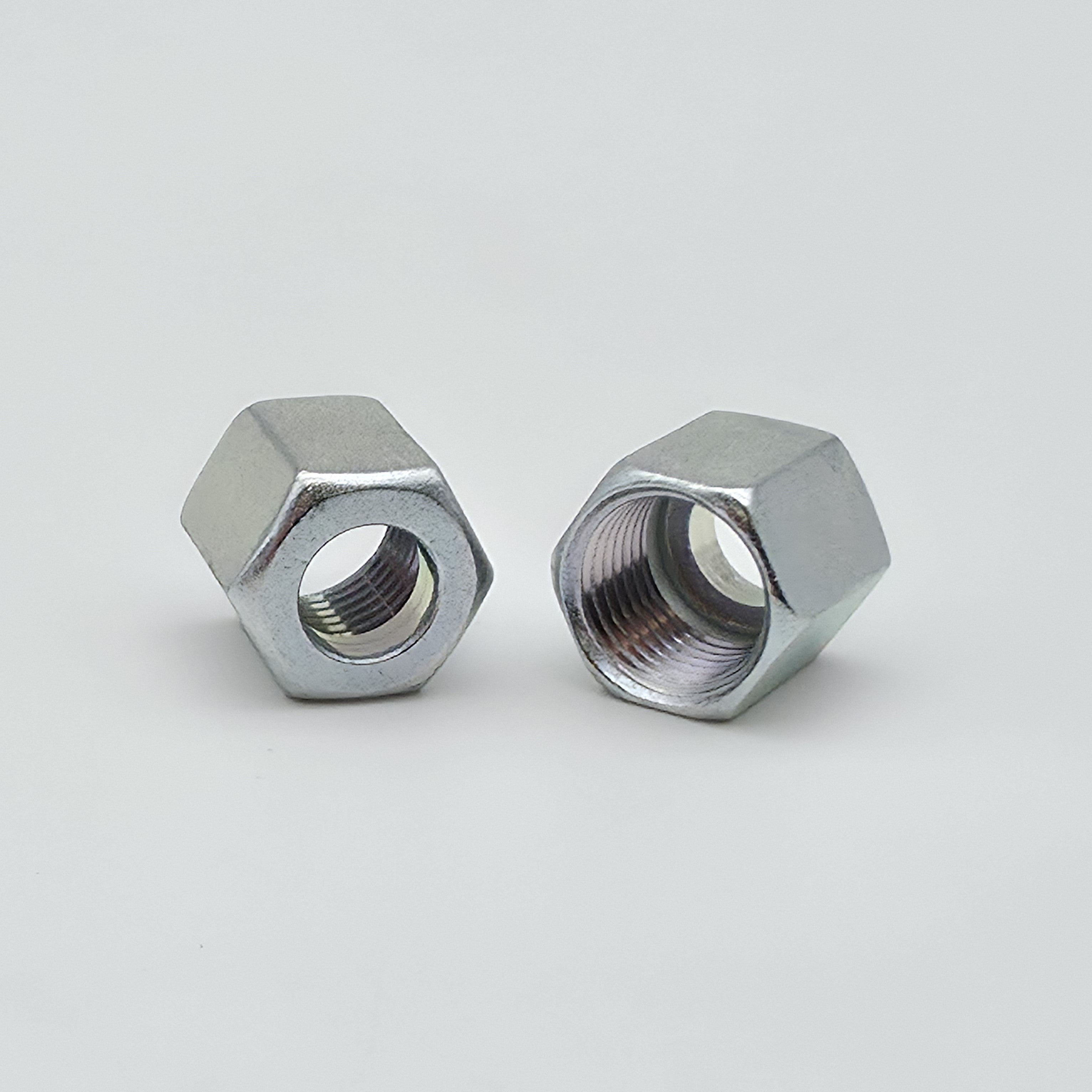

Swivel nut with a metric thread

SW (mm)
Thread
Bore Hole, d (mm)
SKU: 8031.0300
£0.50
In stock

Part Diagram and technical information is shown below

Scroll down

Description

The Cohline portfolio of precision-engineered adapters and fittings provides a reliable and flexible solution for routing fluid transfer lines—including fuel, oil, and coolant—across a wide range of high-performance automotive and motorsport applications. Designed to withstand the extreme demands of elevated pressure, thermal cycling, and high dynamic loads, these components are recognised as a standard in advanced fluid management systems. Each fitting is CNC-machined to ensure optimal mechanical integrity, dimensional stability, and resistance to fatigue and chemical degradation. This level of engineering ensures consistent performance and long service life in the harshest operational environments.

Material

Zinc Plated Steel

DIN Standard

DIN 3870, type B2LL

Part Diagram

Product Specification

SKU SW (mm) bore hole, d (mm) DN Thread
8030.2000 36 24 20 M30 x 1.5
8030.2500 46 31 25 M38 x 1.5
8031.0300 12 6.50 3 M10 x 1
8031.0302 12 5.50 3/2 M10 x 1
8031.0400 14 7.50 4 M12 x 1.5
8031.0600 17 9.85 6 M14 x 1.5
8031.0800 19 11.50 8 M16 x 1.5
8031.1000 22 13.50 10 M18 x 1.5
8031.1300 27 17.00 13 M22 x 1.5
8031.1600 32 20.00 16 M26 x 1.5
8031.2000 36 24.00 20 M30 x 2
