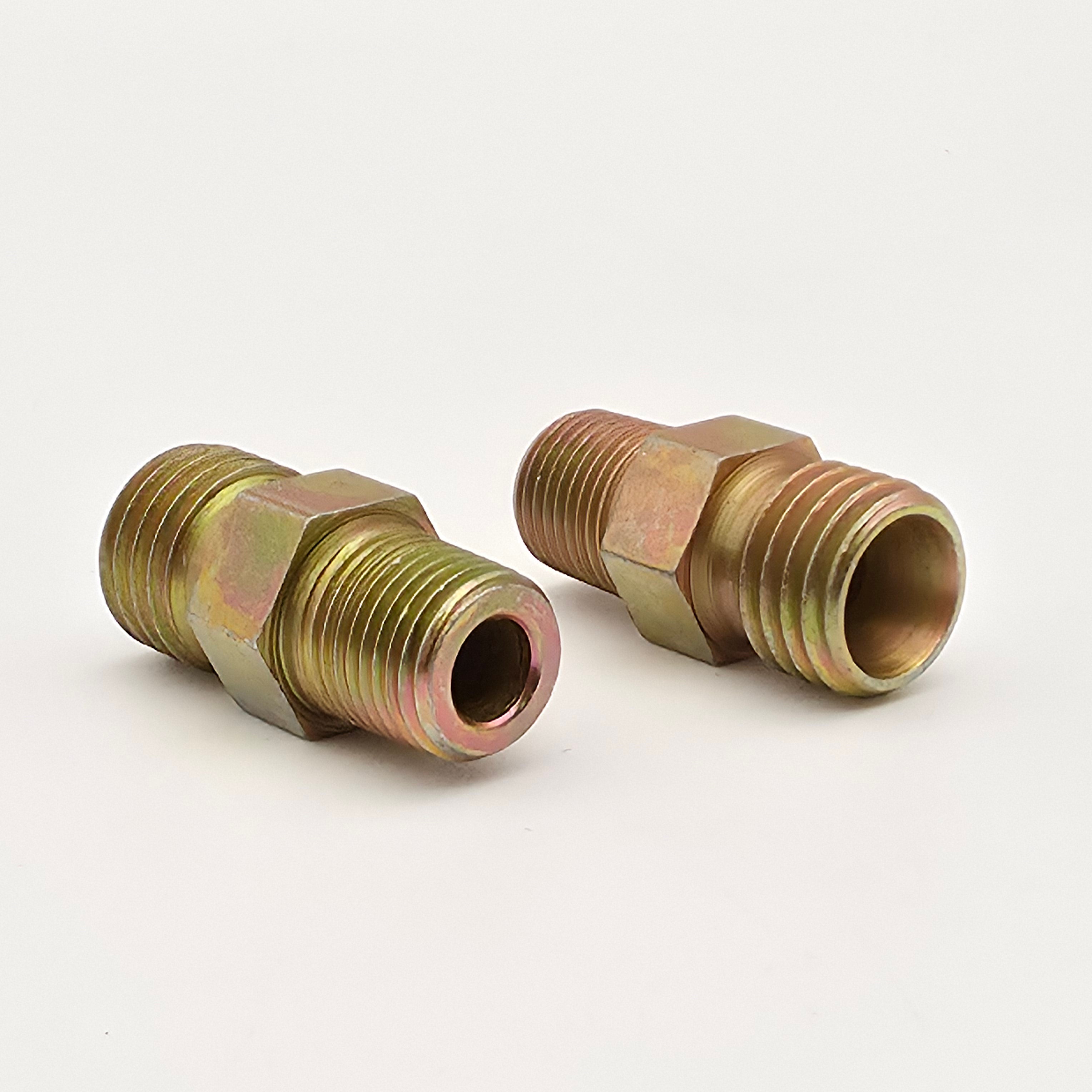

Threaded Hose Adapters | 60° Internal Cone
  • Threaded Hose Adapters | 60° Internal Cone
Threaded Hose Adapters | 60° Internal Cone

Threaded Hose Adapters | 60° Internal Cone

Thread 1
Thread 2
SKU: 8116.0304 discontinued
£10.50
6 left

Part Diagram and technical information is shown below
Scroll down

Description

The Cohline portfolio of precision-engineered adapters and fittings provides a reliable and flexible solution for routing fluid transfer lines—including fuel, oil, and coolant—across a wide range of high-performance automotive and motorsport applications. Designed to withstand the extreme demands of elevated pressure, thermal cycling, and high dynamic loads, these components are recognised as a standard in advanced fluid management systems. Each fitting is CNC-machined to ensure optimal mechanical integrity, dimensional stability, and resistance to fatigue and chemical degradation. This level of engineering ensures consistent performance and long service life in the harshest operational environments.

Material

Zinc Plated Steel

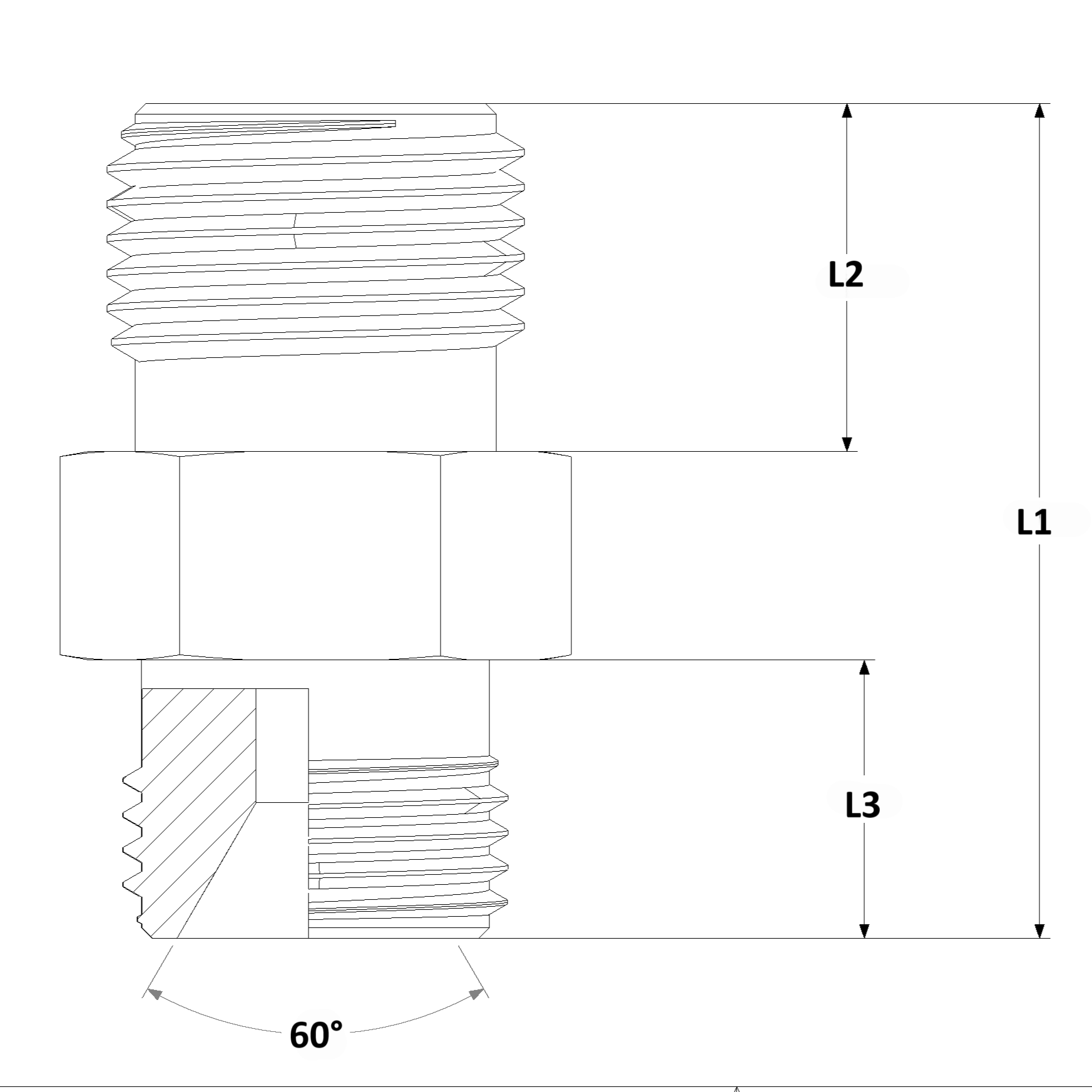

Part Diagram

Product Specification

SKU SW (mm) DN L1 L2 L3 Thread
Thread 1 Thread 2 /60˚ inner cone
8115.0608 19 6/8 28 13 10 1/4" NPTF G 3/8"
8115.0808 19 8 31 15 10 3/8" NPTF G 3/8"
8116.0304 12 3/4 26 10 10 1/8"-27 NPTF M12 x 1/5
8116.0606 17 6 31 15 10 1/4"-18NPTF M14 x 1.5
8116.0808 19 8 32 15 11 3/8"-18NPTF M16 x 1.5
8116.0810 19 8/10 34 15 11 3/8"-18NPTF M18 x 1.5
8116.1313 22 13 40 20 12 1/2"-14NPTF M22 x 1.5
8116.1310 22 13/10 39 20 11 1/2"-14NPTF M18 x 1.5
8116.2020 30 20 44 20 14 3/4"-14NPTF M30 x 1.5
8116.2016 27 20/16 42 20 12 3/4"-14NPTF M26 x 1.5
8157.0303 14 3 22 8 8 M10 x 1 M10 x 1
8157.0404 17 4 29 10 10 M12 x 1.5 M12 x 1.5
8157.0606 19 6 30 10 10 M14 x 1.5 M14 x 1.5
8157.0808 22 8 30 10 11 M16 x 1.5 M16 x 1.5
8157.0810 24 8/10 29 10 11 M16 x 1.5 M18 x 1.5
8157.1010 24 10 32 10 11 M18 x 1.5 M18 x 1.5
8157.1616 32 16 40 12 12 M26 x 1.5 M26 x 1.5
8157.2020 36 20 44 12 14 M30 x 1.5 M30 x 1.5
8158.0304 14 3/4 23.5 8 10 G 1/8" M12 x 1.5
8158.0606 19 6 30 12 10 G 1/4" M14 x 1.5
8158.0604 19 6/4 30 12 10 G 1/4" M12 x 1.5
8158.0608 19 6/8 30 12 10 G 1/4" M16 x 1.5
8158.0808 22 8 30 12 10 G 3/8" M16 x 1.5
8158.0810 22 8/10 30 12 10 G 3/8" M18 x 1.5
8158.1313 27 13 37 14 12 G 1/2" M22 x 1.5
8158.1310 27 13/10 35 14 10 G 1/2" M18 x 1.5
8158.1316 27 13/16 37 14 12 G 1/2" M26 x 1.5
8158.2020 32 20 39 16 12 G 3/4" M30 x 1.5
8158.2016 32 20/16 39 16 12 G 3/4" M26 x 1.5
8158.2525 41 25 43 16 14 G 1" M38 x 1.5
8158.3232 50 32 43 16 14 G 1 1/4" M45 x 1.5
