Tube Nipple | Heavy Type

Tube Nipple | Heavy Type

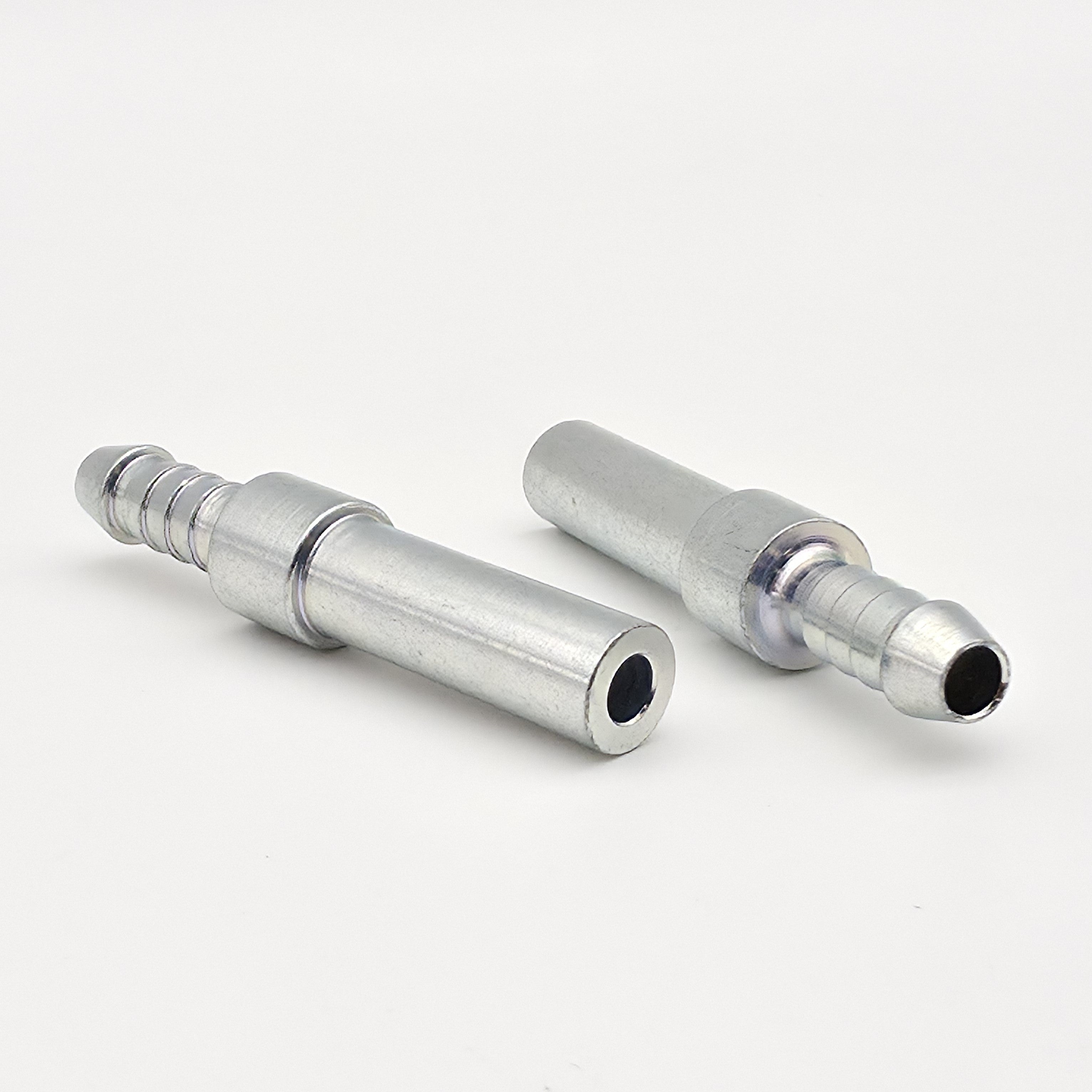

straight tube nipple, heavy type

Ø for pipe outside (D) mm
SKU: 8062.0400
£10.00
4 left

Part Diagram and technical information is shown below

Scroll down

Description

The Cohline portfolio of precision-engineered adapters and fittings provides a reliable and flexible solution for routing fluid transfer lines—including fuel, oil, and coolant—across a wide range of high-performance automotive and motorsport applications. Designed to withstand the extreme demands of elevated pressure, thermal cycling, and high dynamic loads, these components are recognised as a standard in advanced fluid management systems. Each fitting is CNC-machined to ensure optimal mechanical integrity, dimensional stability, and resistance to fatigue and chemical degradation. This level of engineering ensures consistent performance and long service life in the harshest operational environments.

Material

Zinc Plated Steel

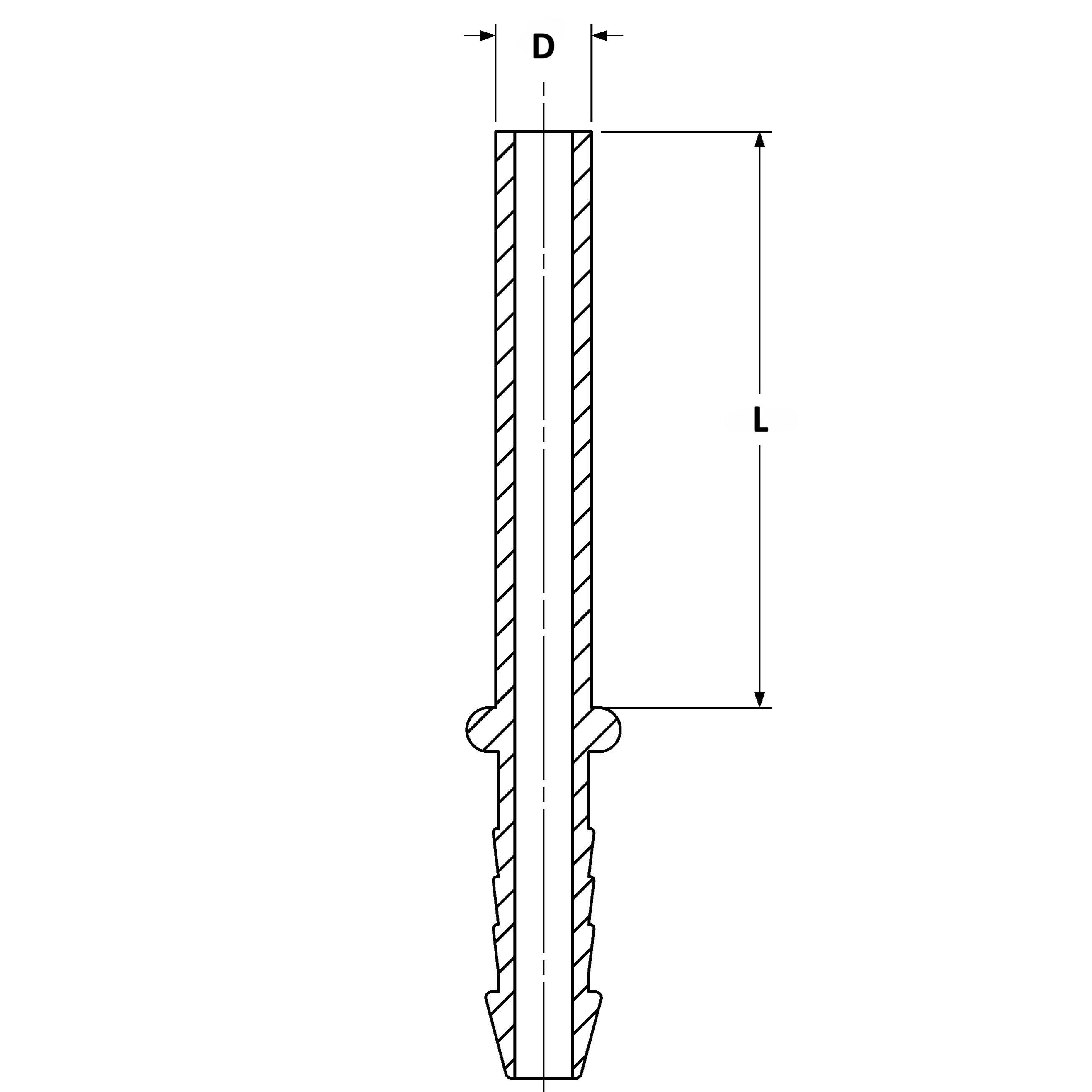

Part Diagram

Product Specification

SKU Ø for pipe outside (D) mm Ø for hose inside  DN L (mm)
8062.0400 8 5 - 6 4 23
8062.0600 10 7 - 8 6 24
8062.0800 12 9 - 10 8 25
8062.1300 16 14 - 15 13 30
8062.1600 20 17 - 18 16 32
8062.2000 25 21 - 22 20 34
8062.2520 30 21 - 22 25/20 36
